CTS_EN
| Cod Ean | 8595057630222 |
| Cod vamal | 83024190 |
| Greutate | 0,6200 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Încarcatura maximă | 70 kg |
| Încarcatura maximă a tijei filetate | 170 kg |

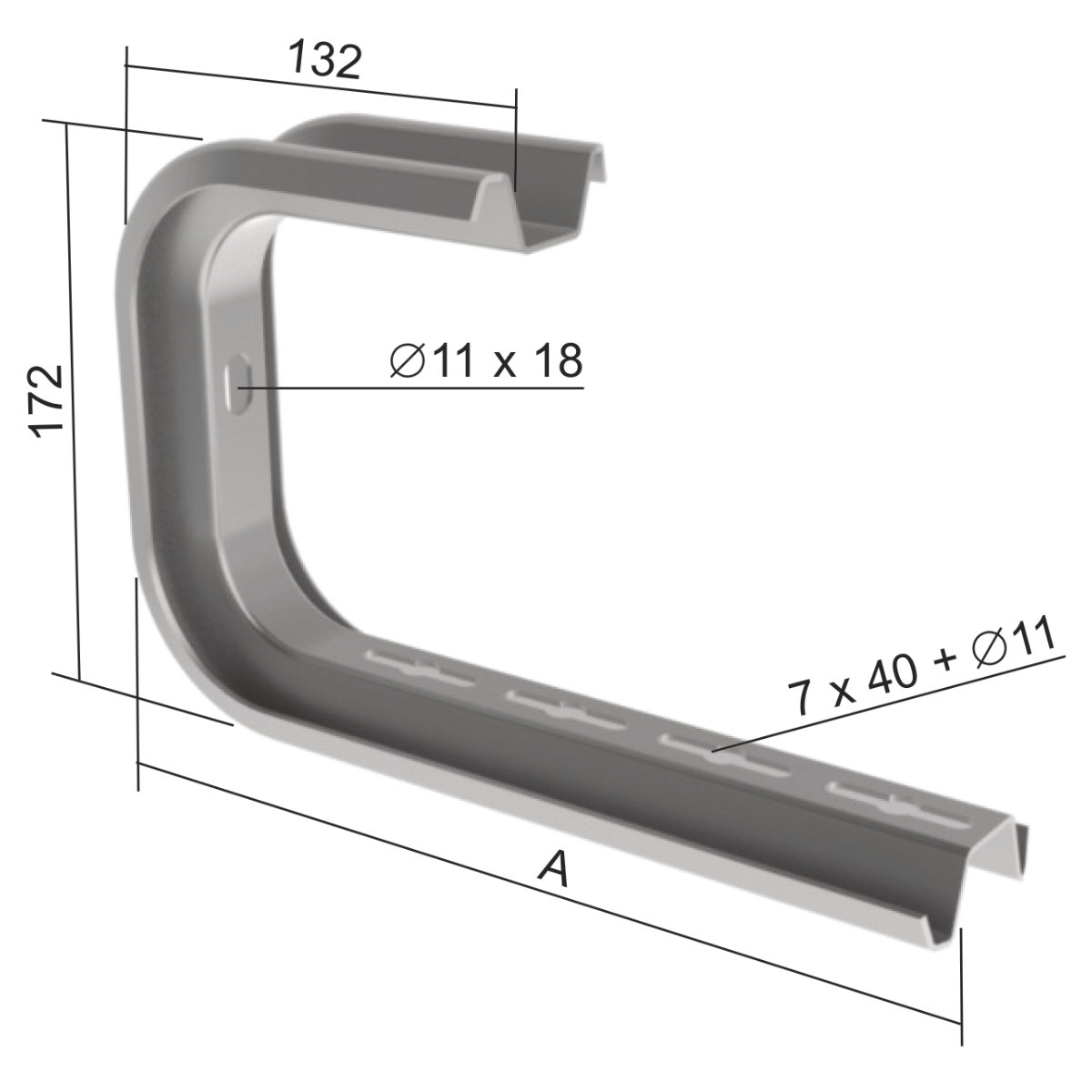

| Dimensiunea A | 261 mm |
| Pentru lățimea jgheabului de cabluri | 200 mm |

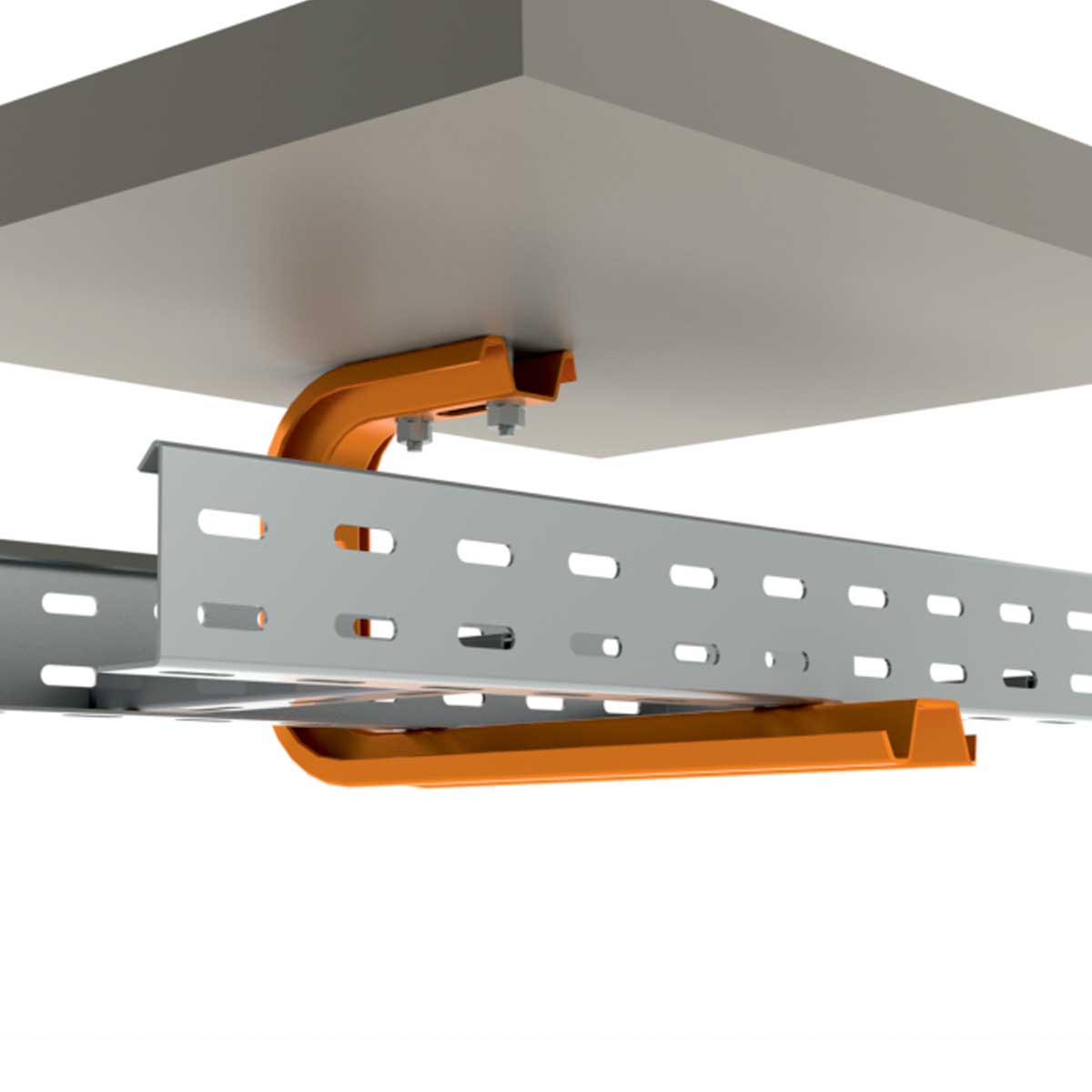

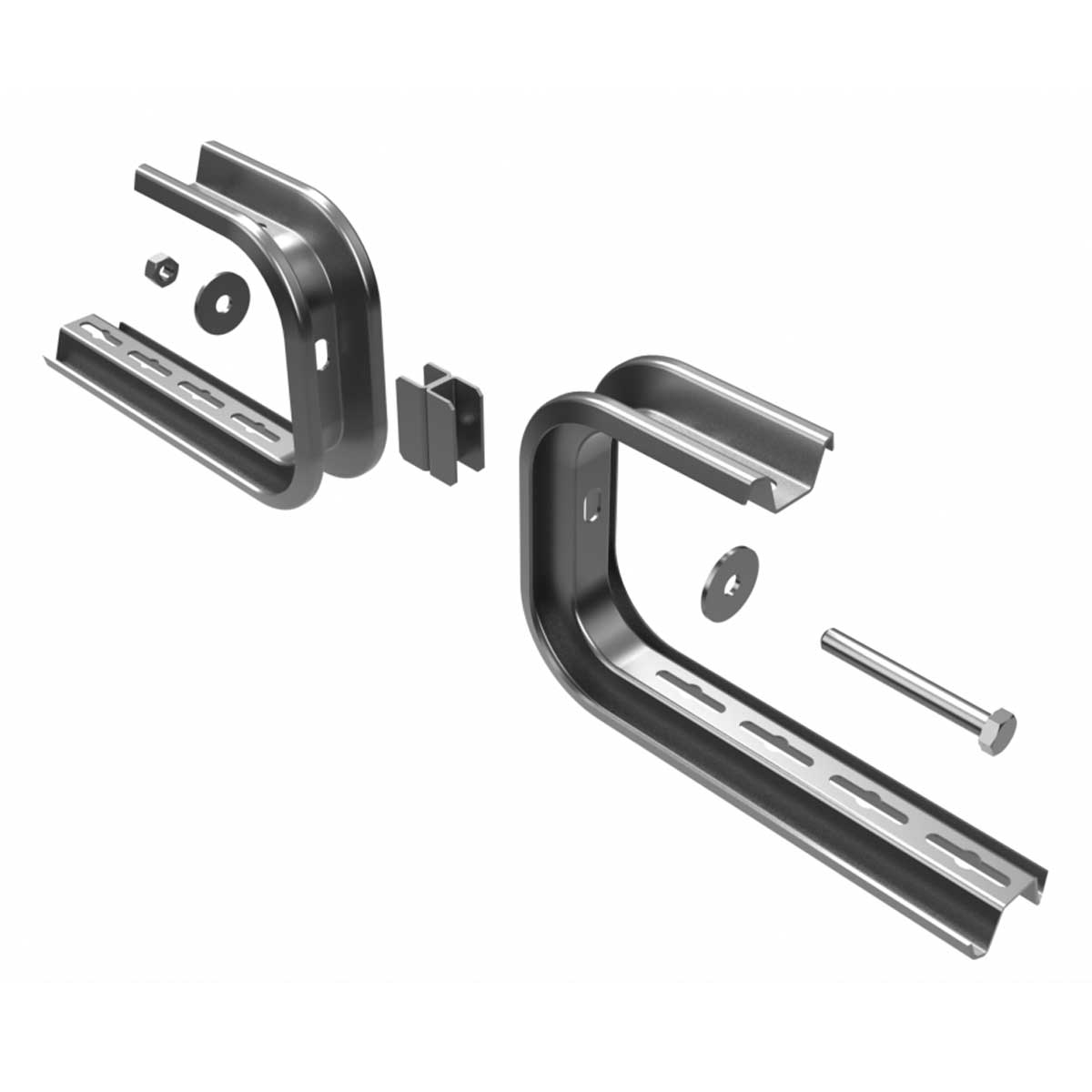

Designated for direct mounting to the ceiling or with a threaded rod ZT 8 or ZT 10. The cable tray is fixed by using the bolts NSM 6X10. To eliminate deformation during assembly the STS reinforcement is designated. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
