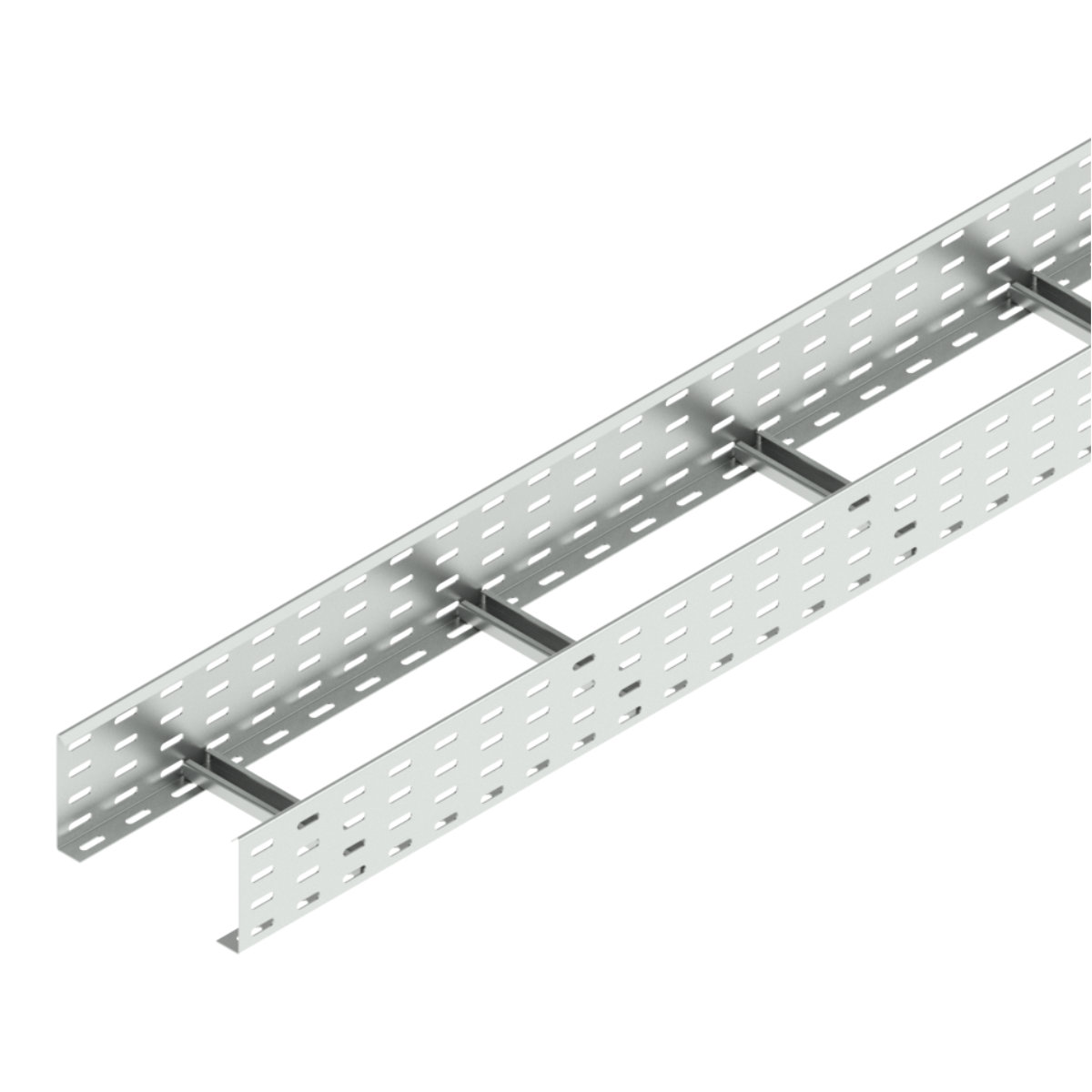

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KL110_EN
| Cod Ean | 8595057644373 |
| Cod vamal | 73089059 |
| Greutate | 3,3100 kg/m |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lătime | 200 mm |
| Înăltime | 110 mm |
| Lungime | 3000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1,2 - 1,5 mm |
| Cantitatea de şuruburi pentru instalare | 8 |
| Distanta partiției | 300 mm |

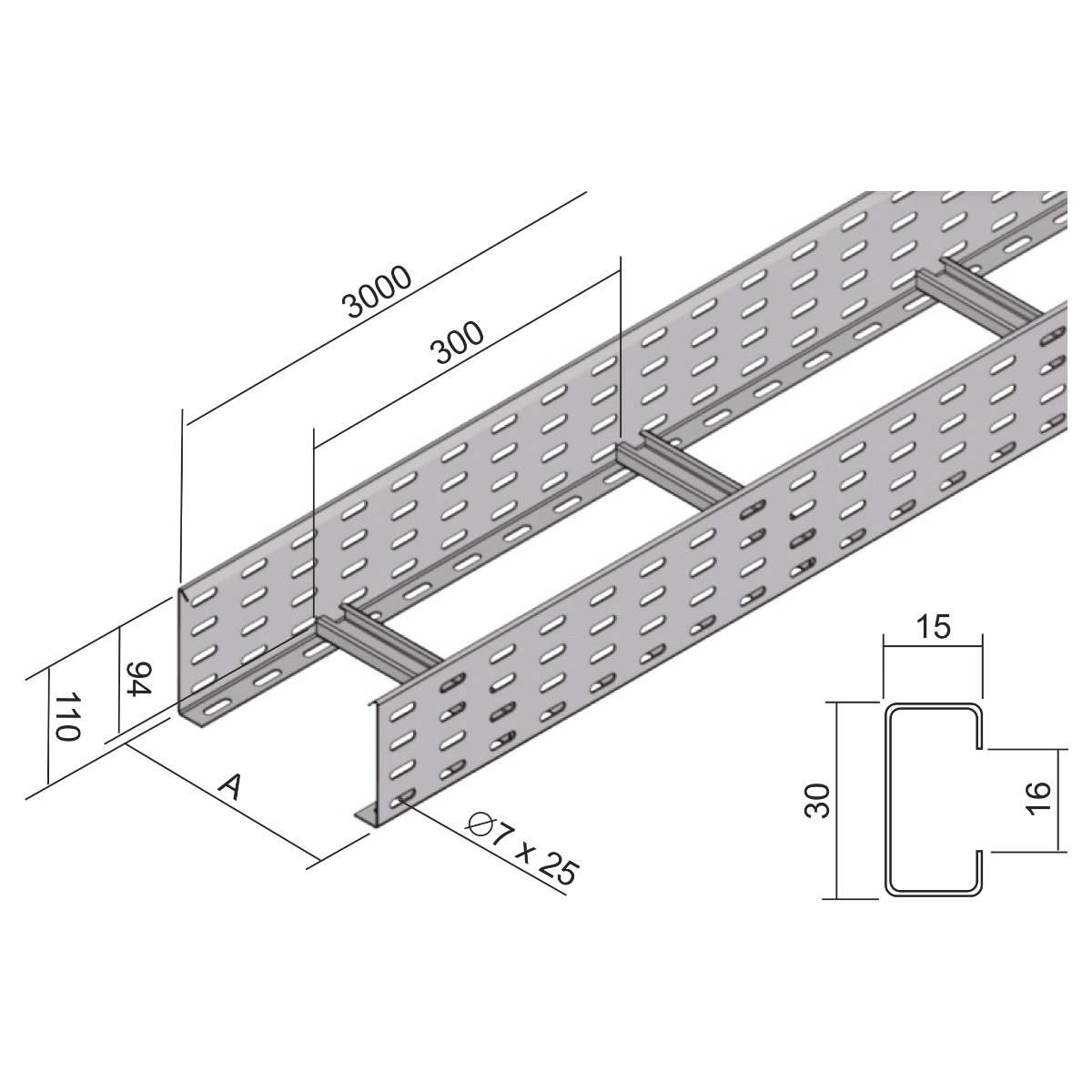

The joining of the ladders is performed by using the couplings S 110X200 and min. 8 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
