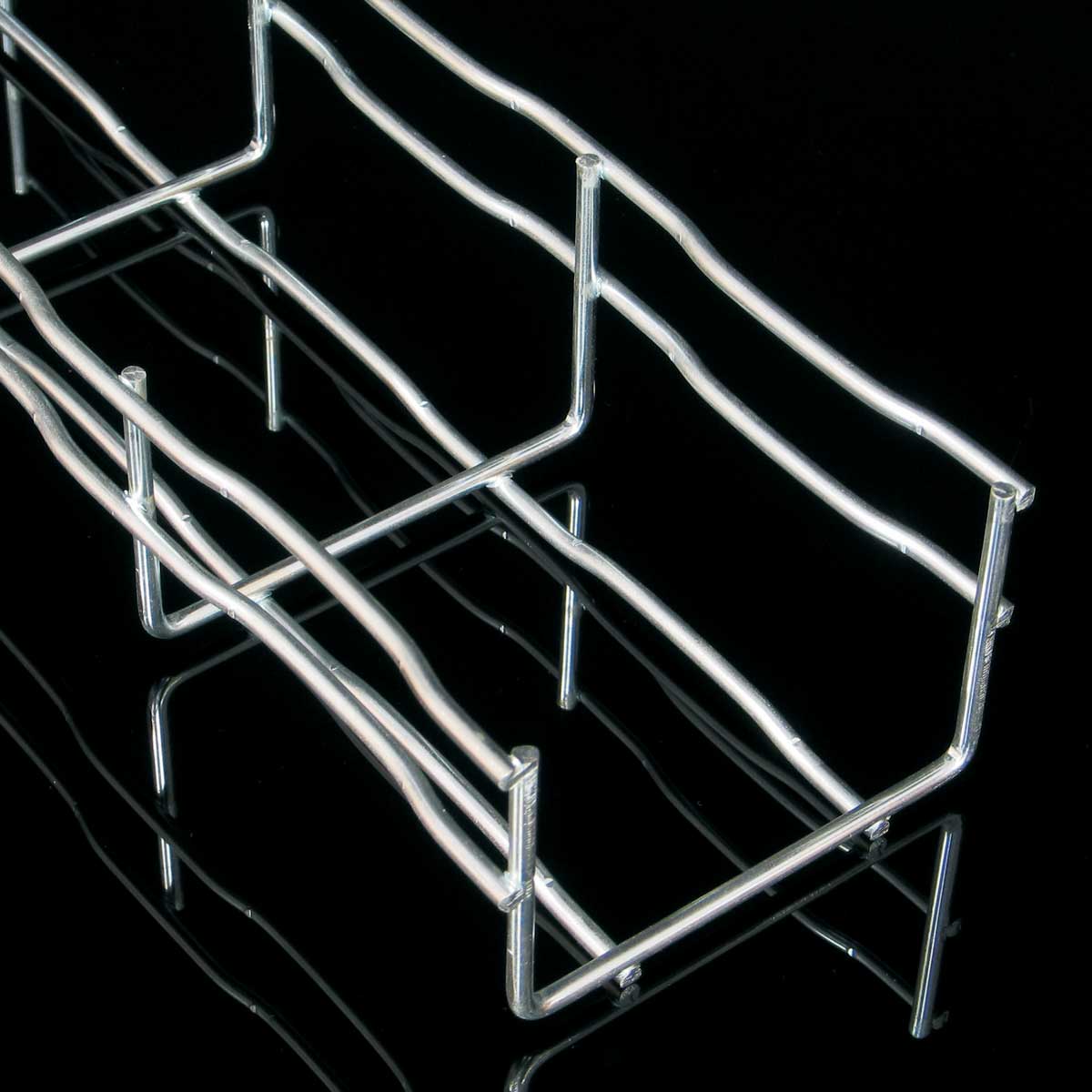

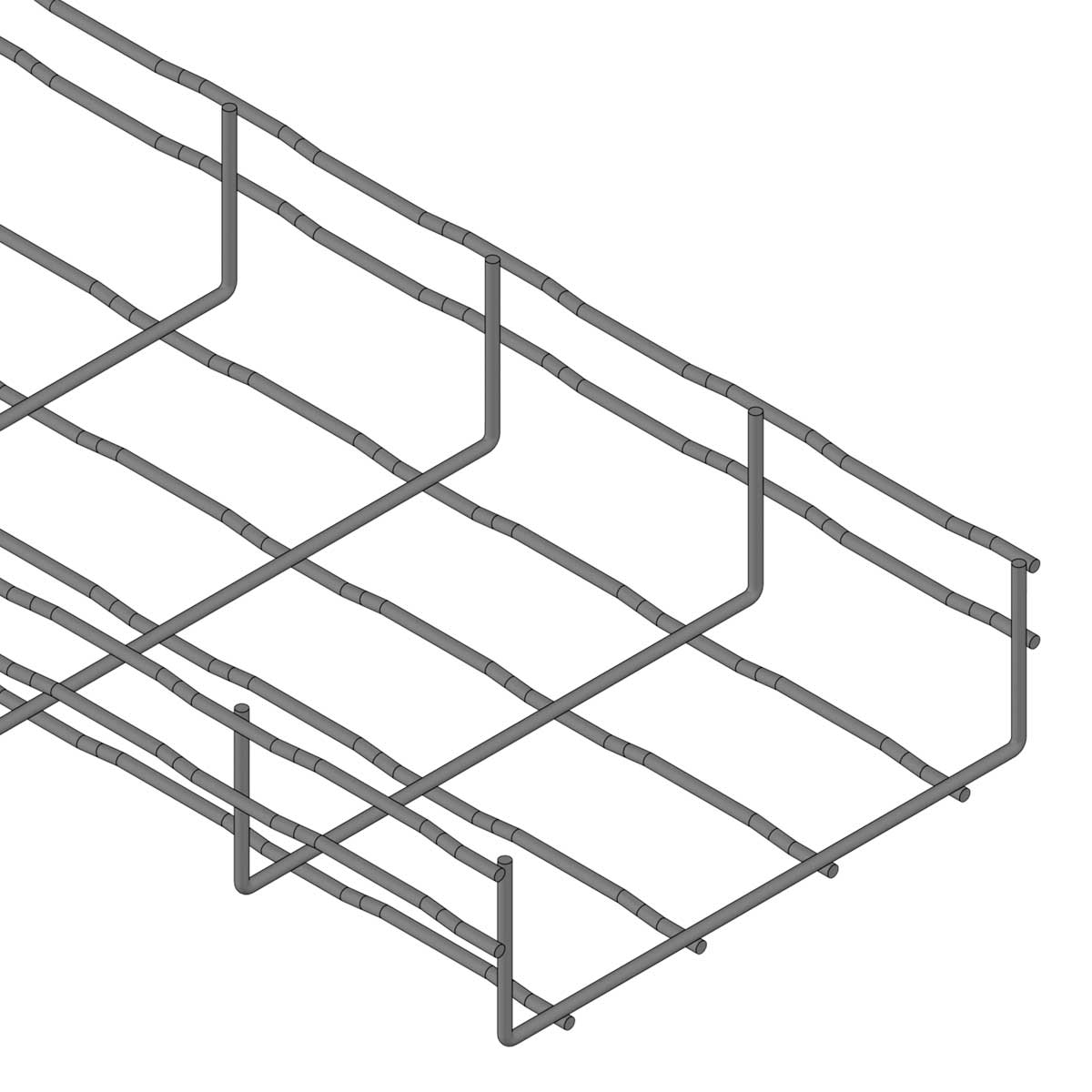

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
DZ_EN
| Cod Ean | 8595568903198 |
| Cod vamal | 73262000 |
| Greutate | 1,1500 kg/m |
| Acoperire de suprafată | Hot Dip Galvanized |
| Lătime | 200 mm |
| Înăltime | 60 mm |
| Lungime | 3000 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Diametru cablu | 3,9 mm |
| Grătar inferior | 50x100 |
| Încărcătură maximă pentru rezistența la foc | 5 - 10 kg |
Wire cable trays are joined using the coupling DZS/B. Trays can be connected using the quick coupling DZRS/B or using the connection reinforcement plate DZSP/B.
Note for system with maintained functionality in fire:
Wire cable trays are joined using the coupling DZS/B.
You find more information in the catalogue Systems with maintained functionality in fire.
