Cod Ean | 8595568902634 |
Cod vamal | 73269098 |
Greutate | 0,0300 kg/pcs |
Acoperire de suprafată | Hot Dip Galvanized |
Funcționalitate în foc | P90-R, E90, PS90 |
Standarde | ČSN EN 61537 |
Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Pentru lățimea jgheabului de cabluri | 100 - 300 mm |
Încărcătură maximă pentru rezistența la foc | 5 - 10 kg |

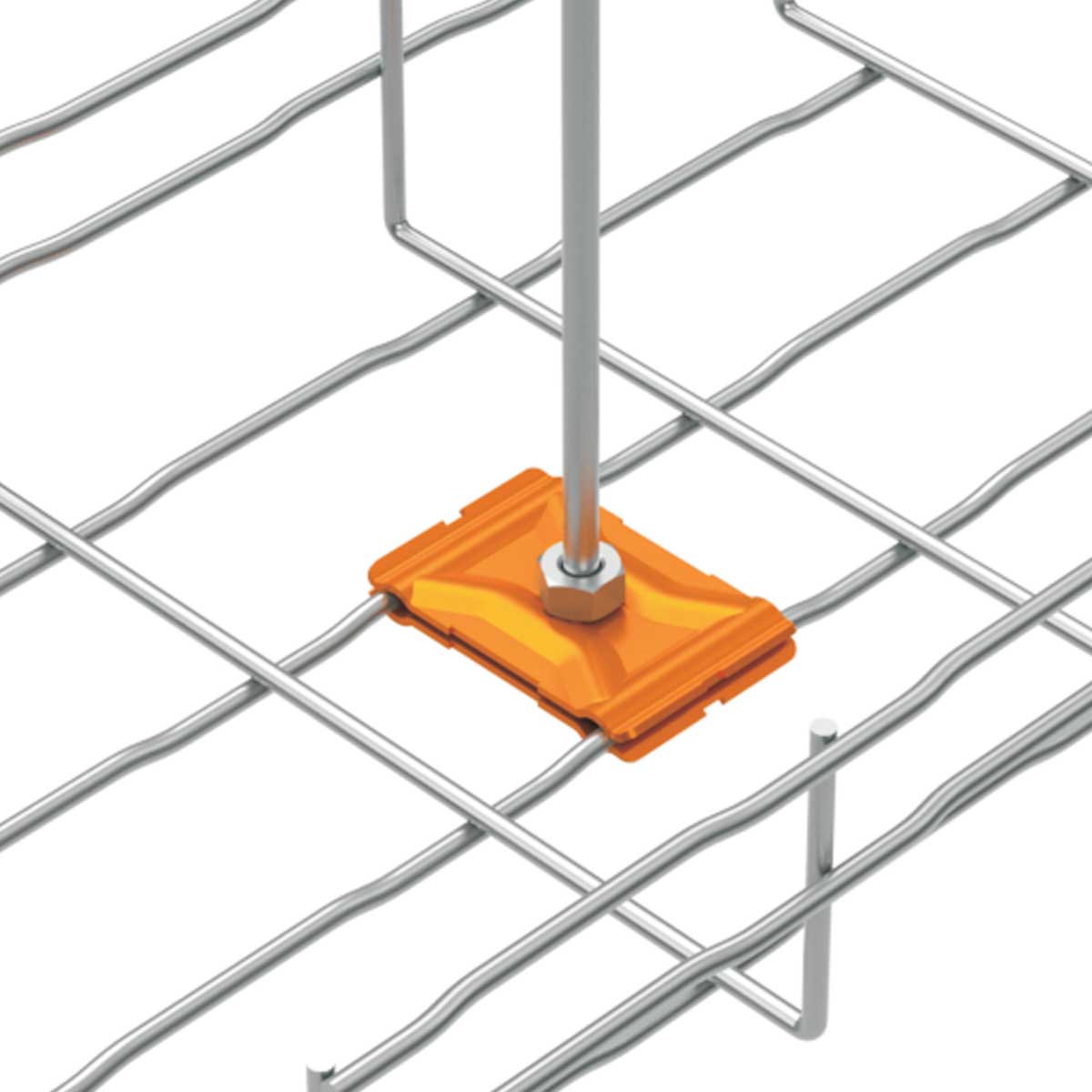

The central hanger is designated for the hanging of the wire tray from the ceiling. For the hanging it is necessary to use two central hanger pieces and the threaded rod Ø 8 mm. The hanger is not intended for hanging of the trays of DZ 60X60 and DZ 35X150. For creating a single hanger attachment by using an inner hanger, 2 pcs of middle hangers must be ordered. There is recommended for cable trays width max. 300 mm.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
