Hanger

Atasamente si certificari

Imagine ilustrativă

To download 3D models, please login or create an account and request access.

Datový list
DZZ.B_EN
DZZ.B_PO_EN

Certifikace
Declaration RoHS
Declaration REACH

Certificare la foc
Certificate DIN
Conformity declaration DIN
Certification report DIN

Cod Ean	8595057689800
Cod vamal	73269098
Greutate	0,0500 kg/pcs
Acoperire de suprafată	Electrolytic Galvanized
Funcționalitate în foc	P90-R, E90, PS90
Standarde	ČSN EN 61537
Standardele cu privire lade rezistența la foc	ČSN 73 0895, DIN 4102-12, STN 92 0205
Încărcătură maximă pentru rezistența la foc	5 - 10 kg

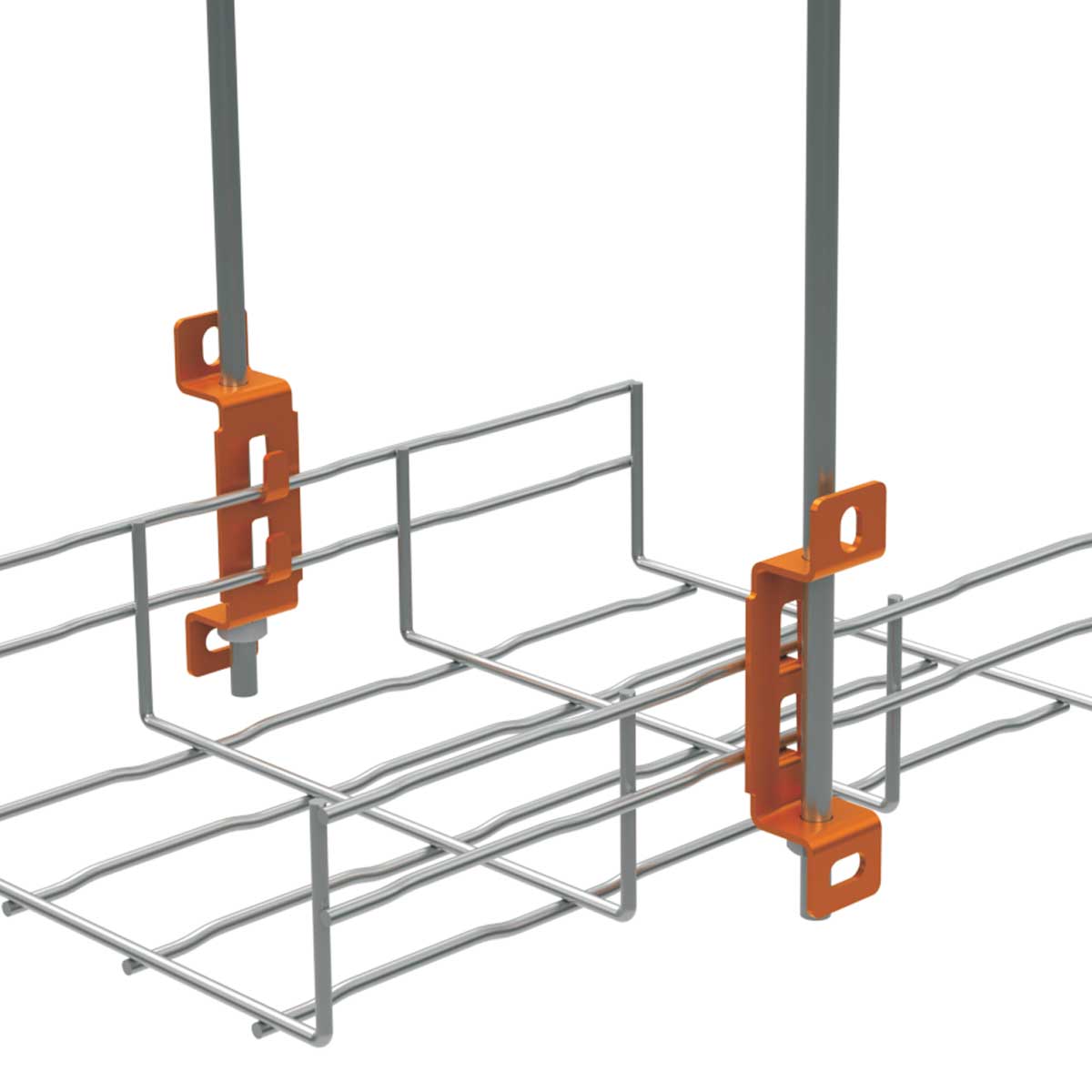

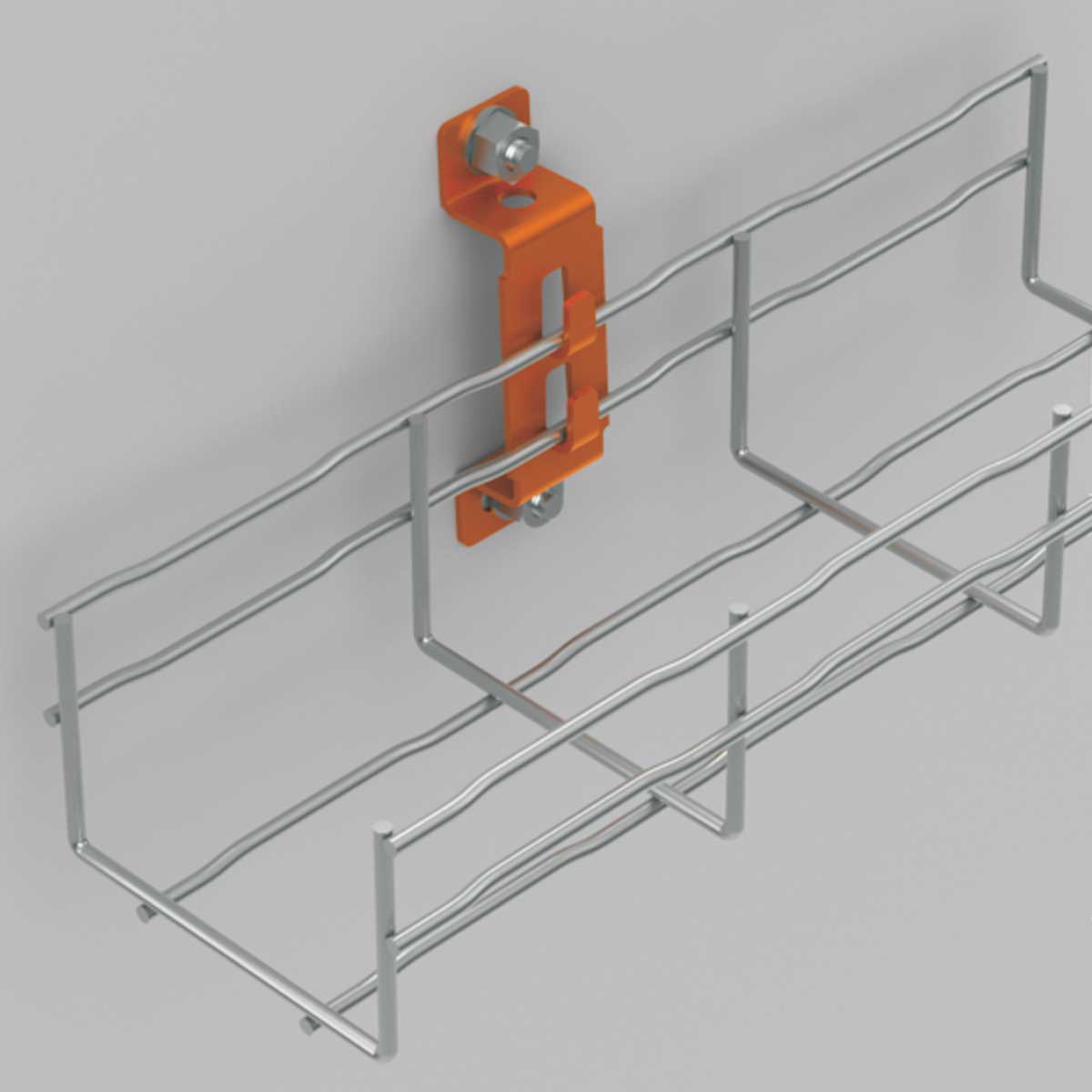

The hanger can be used for the fastening of the wire tray to a wall or for hanging from the ceiling together with a threaded rod Ø 8 mm. The hanging by means of 2 threaded bars from the ceiling is intended for the trays of the side height of 60 and 110 mm and of the width of max. 200 mm (it is possible to use the suspension also for trays DZ 60X300 – maximum load capacity of the tray is 10kg/m). The fixation to the wall there is possible just for trays of DZ 60X60 and DZ 60X100. The hinge is attached using KPO 6 anchors (2 pcs).

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
