Cod Ean8595057691162
Cod vamal73269098
Greutate0,0196 kg/pcs
Materialsteel
Acoperire de suprafatăPre-Galvanized
Funcționalitate în focP90-R, E90, PS90
Tip cu filetM6x12
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Adâncime de ancorare30 mm
Grosimea maximă a materialului de fixare5 mm
Adâncimea minimă a orificiului de forare45 mm
Grosimea minimă a materialului de bază100 mm
Diametrul găurii6 mm
Lungimea totală a ancorei52 mm
Dimensiunea cheie10
Cuplu de strângere4 Nm

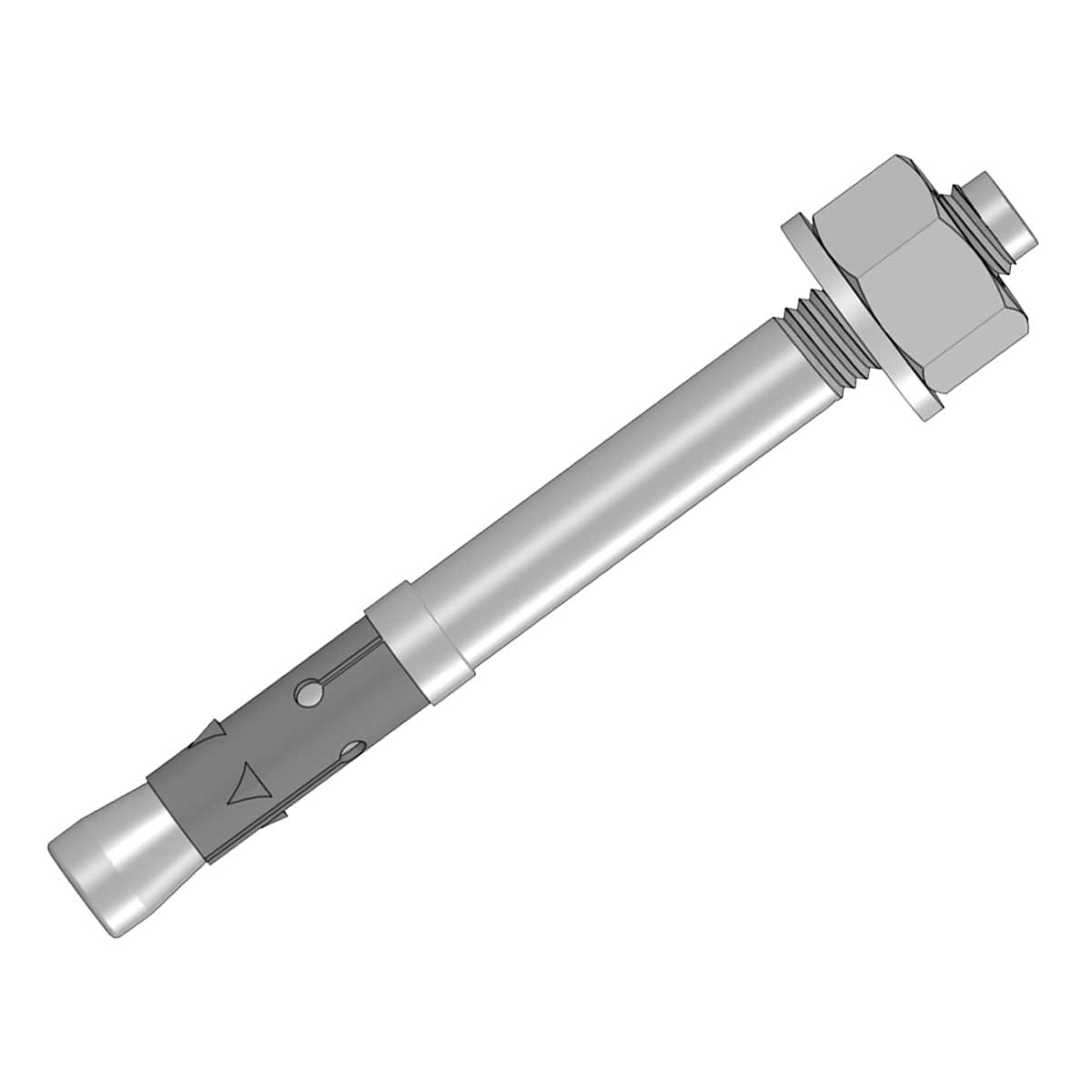

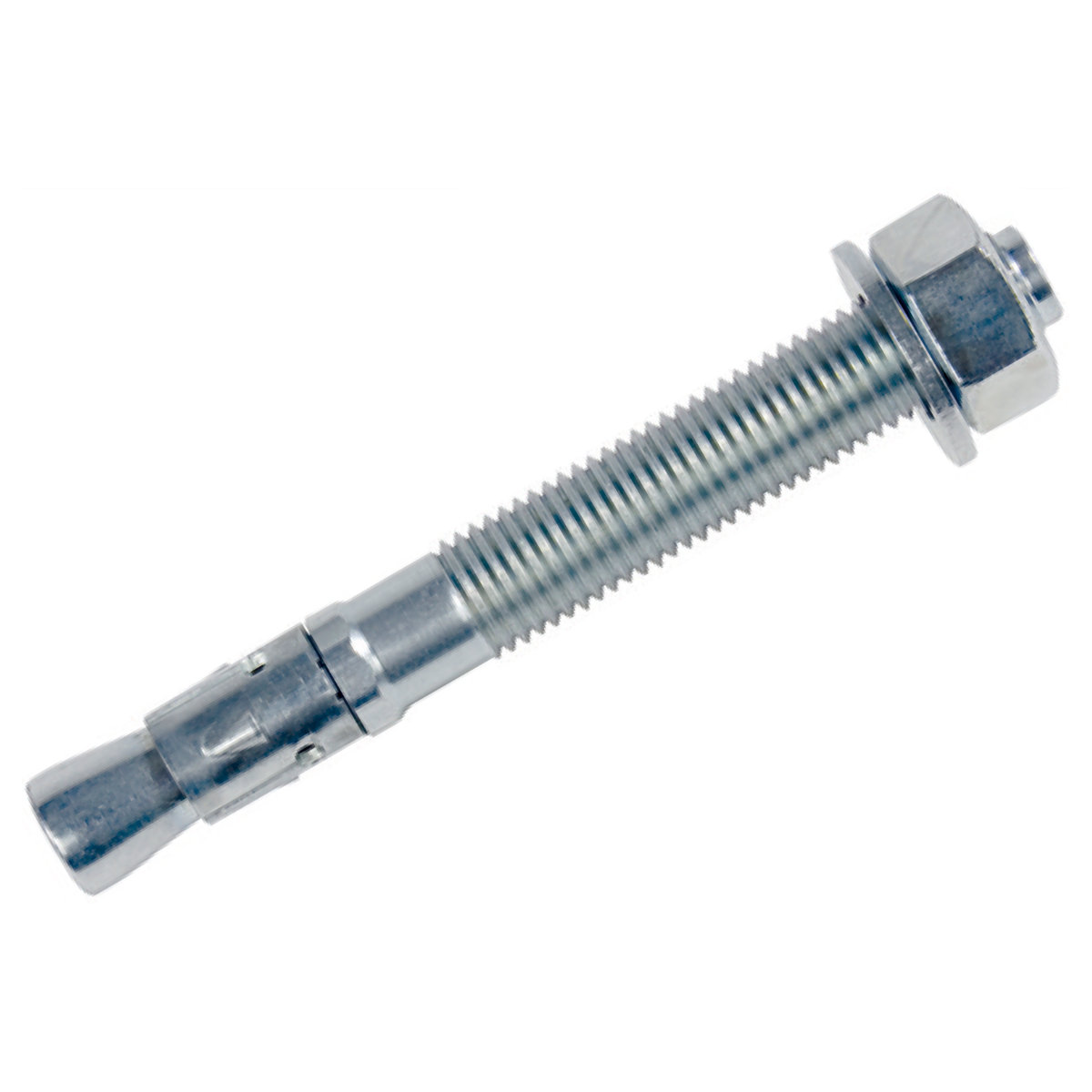

The anchors are designed for drag and thus fastening the structural elements to the underlying material (non-cracked concrete C20/25 to C50/60), a natural stone with a solid structure. The loading capacity of the anchors depends on the quality of the base material (concrete, solid brickwork).

Note for system with maintained functionality in fire:
Anchors serve for the attaching of construction elements to the base material (concrete, stone).
You find more information in the catalogue Systems with maintained functionality in fire.
