Cod Ean8595057677463
Cod vamal73089059
Greutate2,9720 kg/m
Acoperire de suprafatăStainless steel AISI 304
Rezistența la temperatură-50 - 150 °C

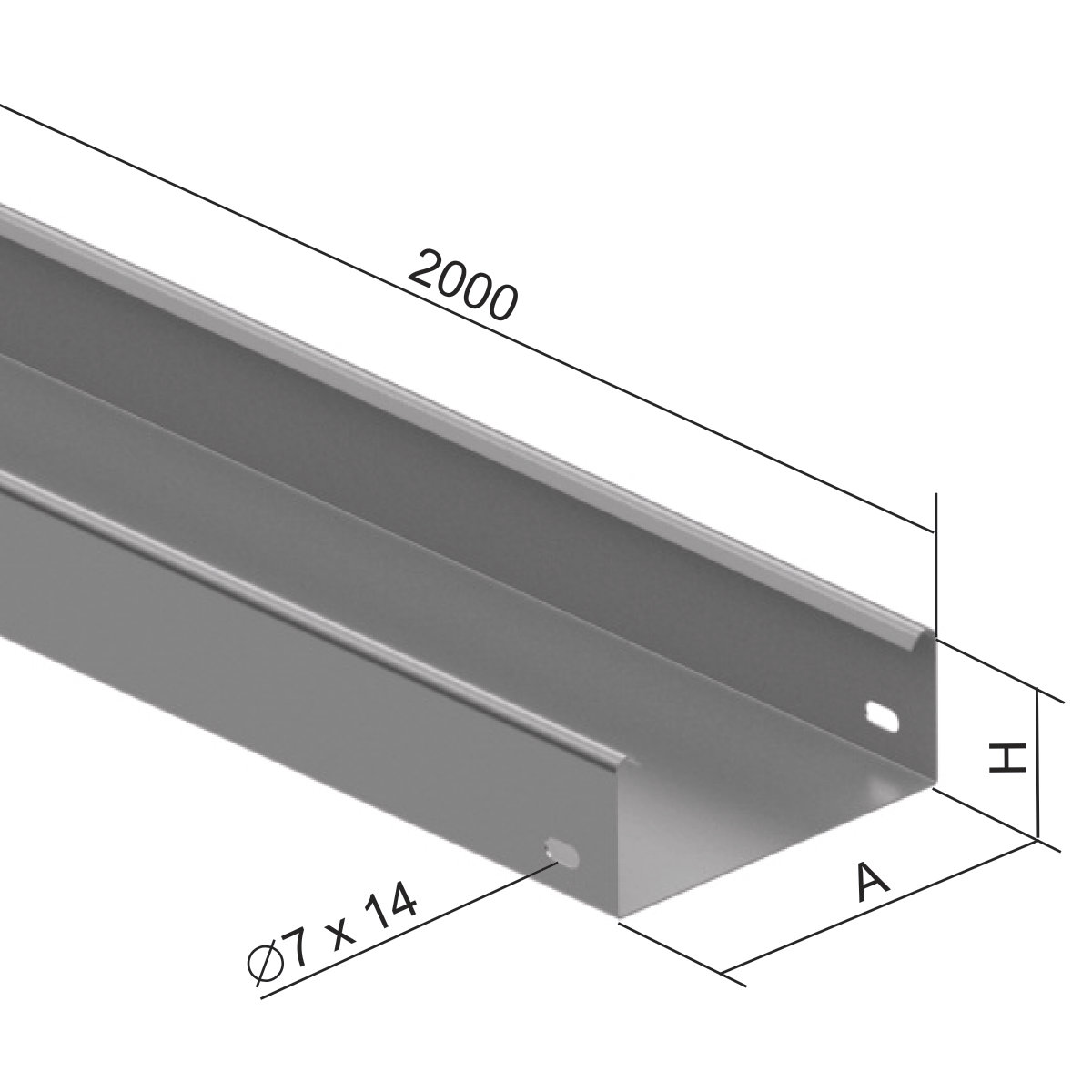

Lătime250 mm
Înăltime100 mm
Lungime2000 mm
StandardeČSN EN 61537
Grosimea foii de tablă0,8 mm
Cantitatea de şuruburi pentru instalare8

The joining of the trays is performed by using of the couplings NIXS 100 and by the bolts NIXSM 6X10. Tray is connected directly to accessories (with no connectors – the tray is inserted into the accessory), using NIXSM 6X10 screws.
