Cod Ean | 8595057669468 |
Cod vamal | 73089059 |
Greutate | 1,5330 kg/m |
Acoperire de suprafată | Stainless steel AISI 304 |
Rezistența la temperatură | -50 - 150 °C |

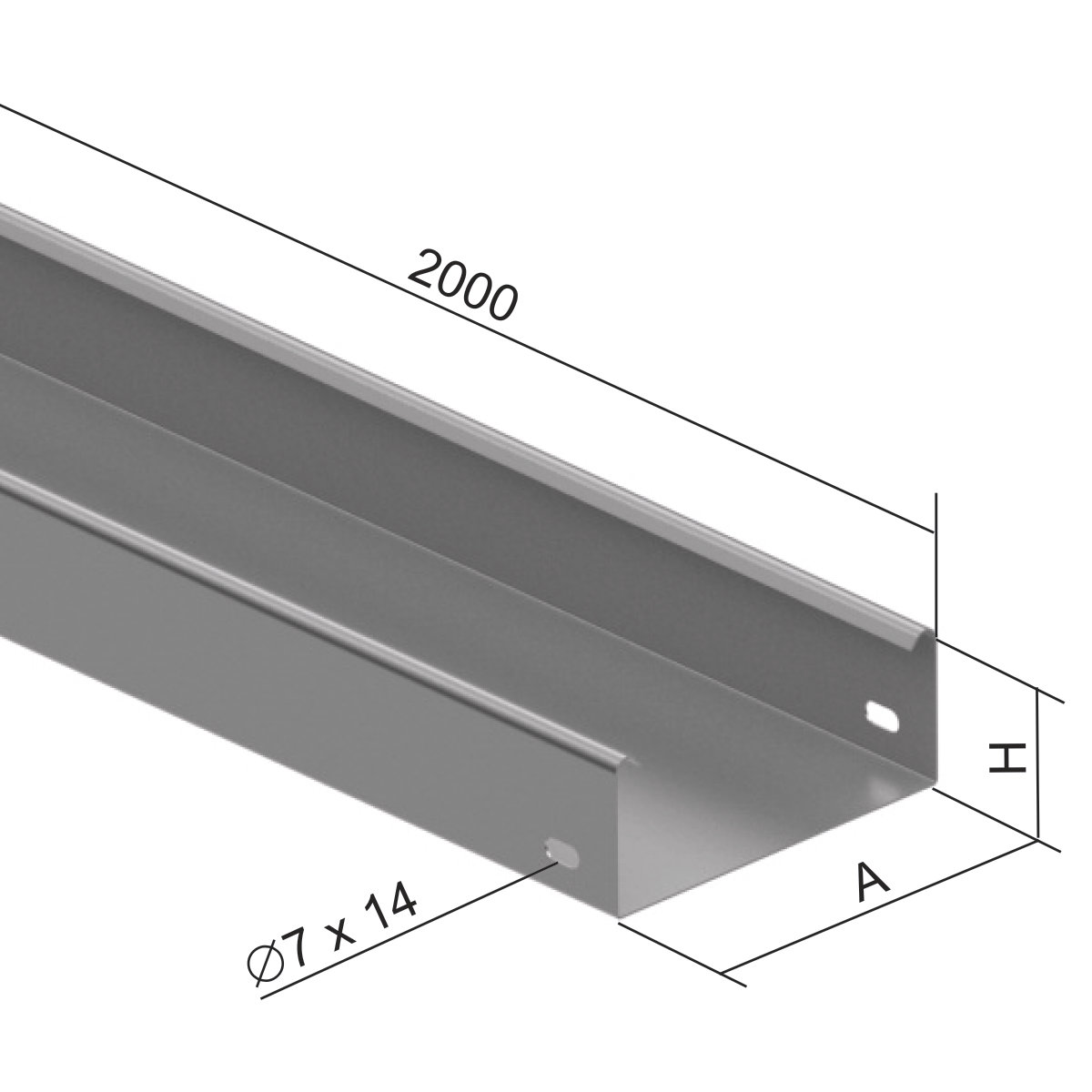

Lătime | 125 mm |
Înăltime | 50 mm |
Lungime | 2000 mm |
Standarde | ČSN EN 61537 |
Grosimea foii de tablă | 0,8 mm |
Cantitatea de şuruburi pentru instalare | 4 |
The joining of the trays is performed by using of the couplings NIXS 100 and by the bolts NIXSM 6X10. Tray is connected directly to accessories (with no connectors – the tray is inserted into the accessory), using NIXSM 6X10 screws.
