NIXSUK_EN
| Cod Ean | 8595057672666 |
| Cod vamal | 73269098 |
| Greutate | 0,0670 kg/pcs |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Rezistența la temperatură | -50 - 150 °C |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 0,8 mm |
| Dimensiunea H | 46 mm |
| Pentru lățimea jgheabului de cabluri | 62 - 250 mm |
| Pentru inălțimea jgheabului de cabluri | 50 mm |

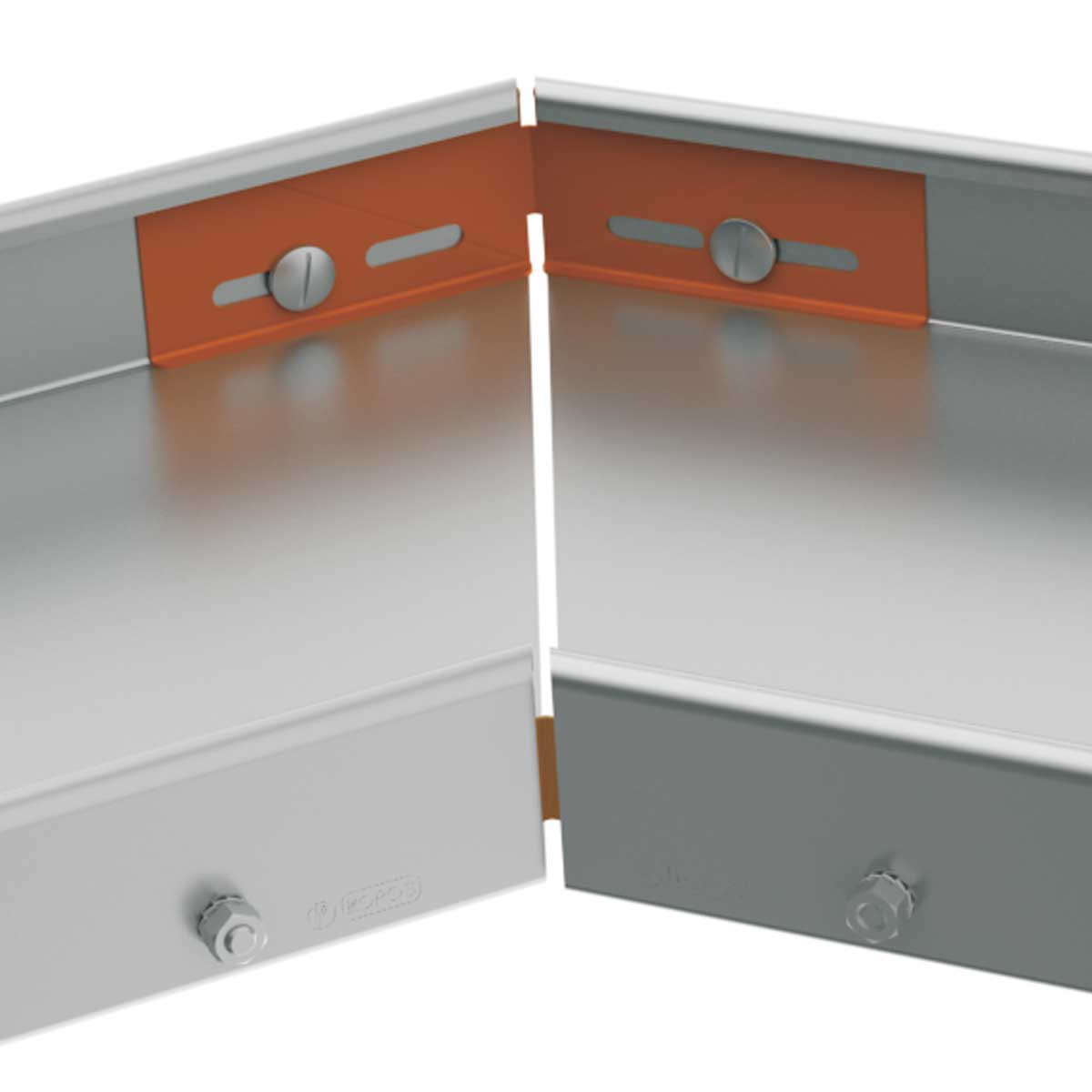

The joining is performed by using the bolts NIXSM 6X10. Angle couplings are mostly used at places where the route is slightly bended, for large bending radiuses or for the circumvention of columns and pillars. The advantage of the angle connector is that it enables angled routes to be easily created at virtually any angle.
