NPKV_EN
| Cod Ean | 8595057693845 |
| Cod vamal | 73269098 |
| Greutate | 0,2530 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Standarde | ČSN EN 61537 |

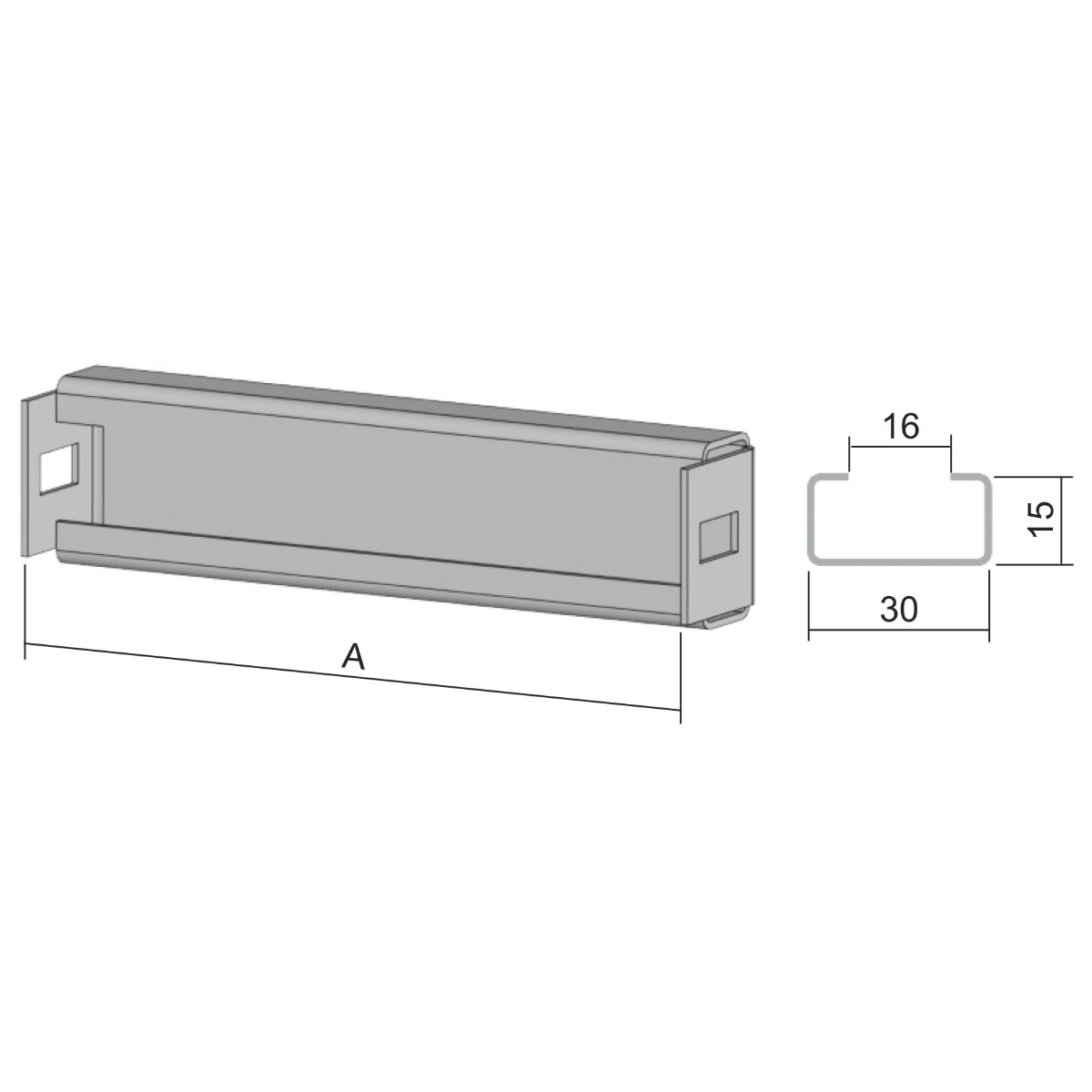

| Dimensiunea A | 397,5 mm |
| Pentru lățimea jgheabului de cabluri | 400 mm |

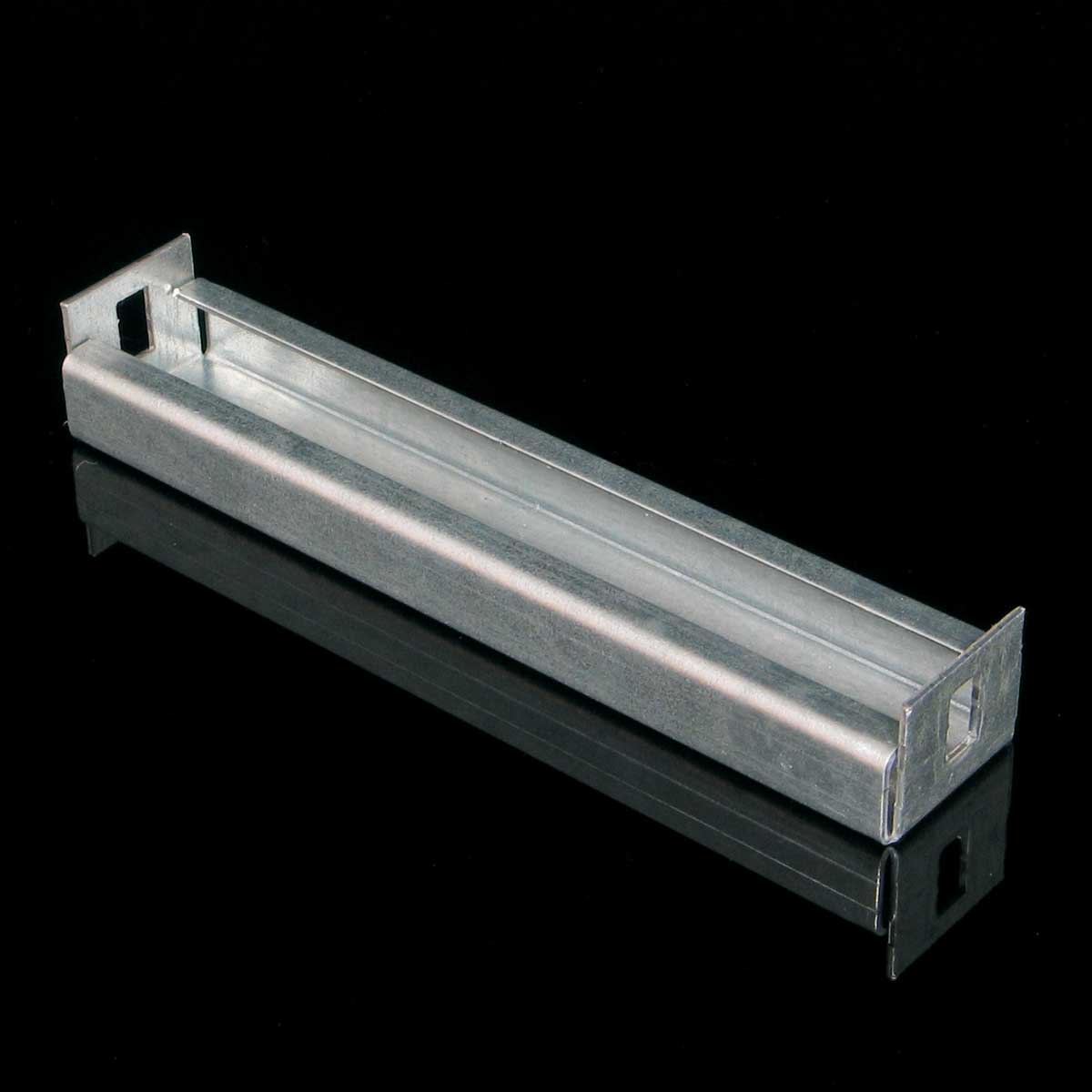

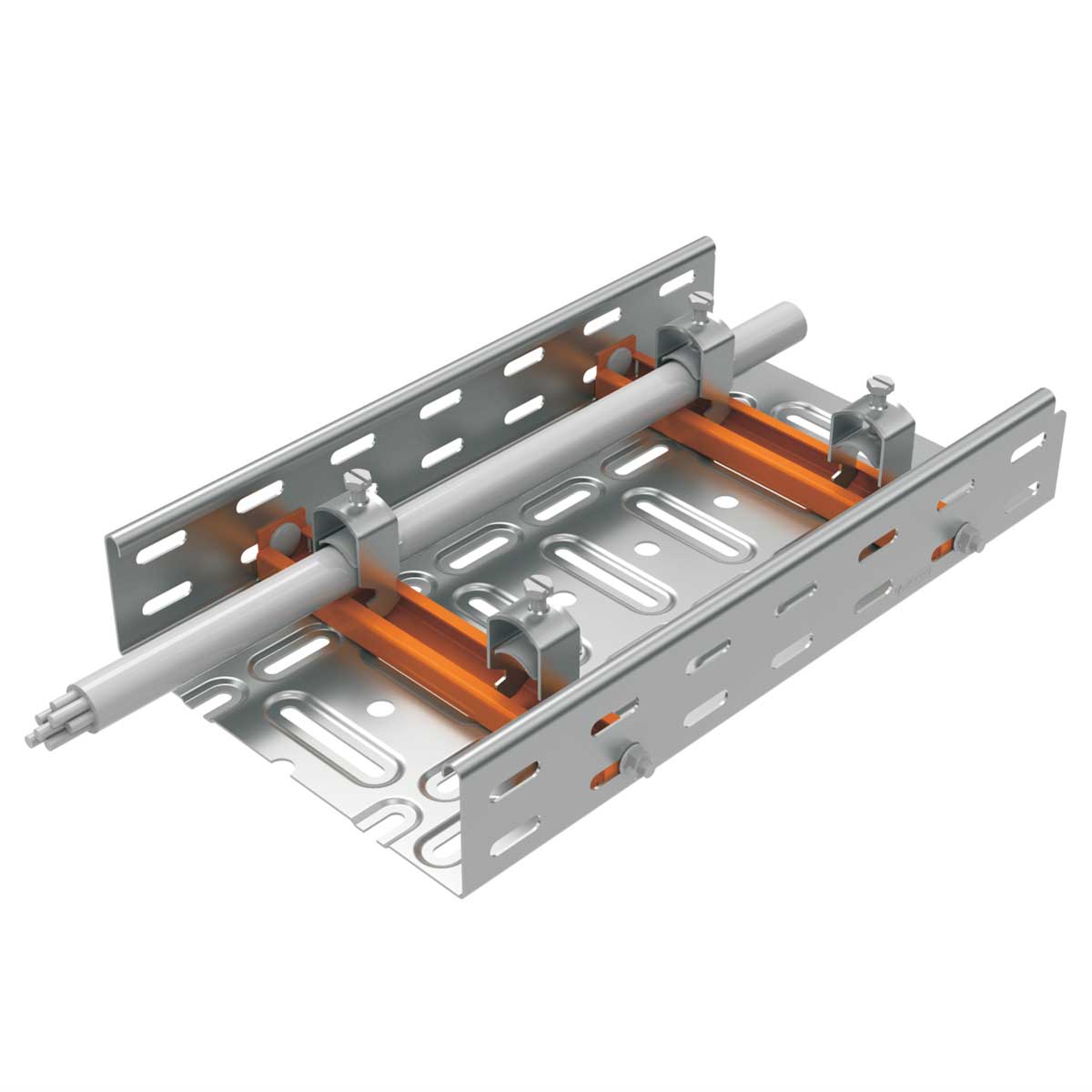

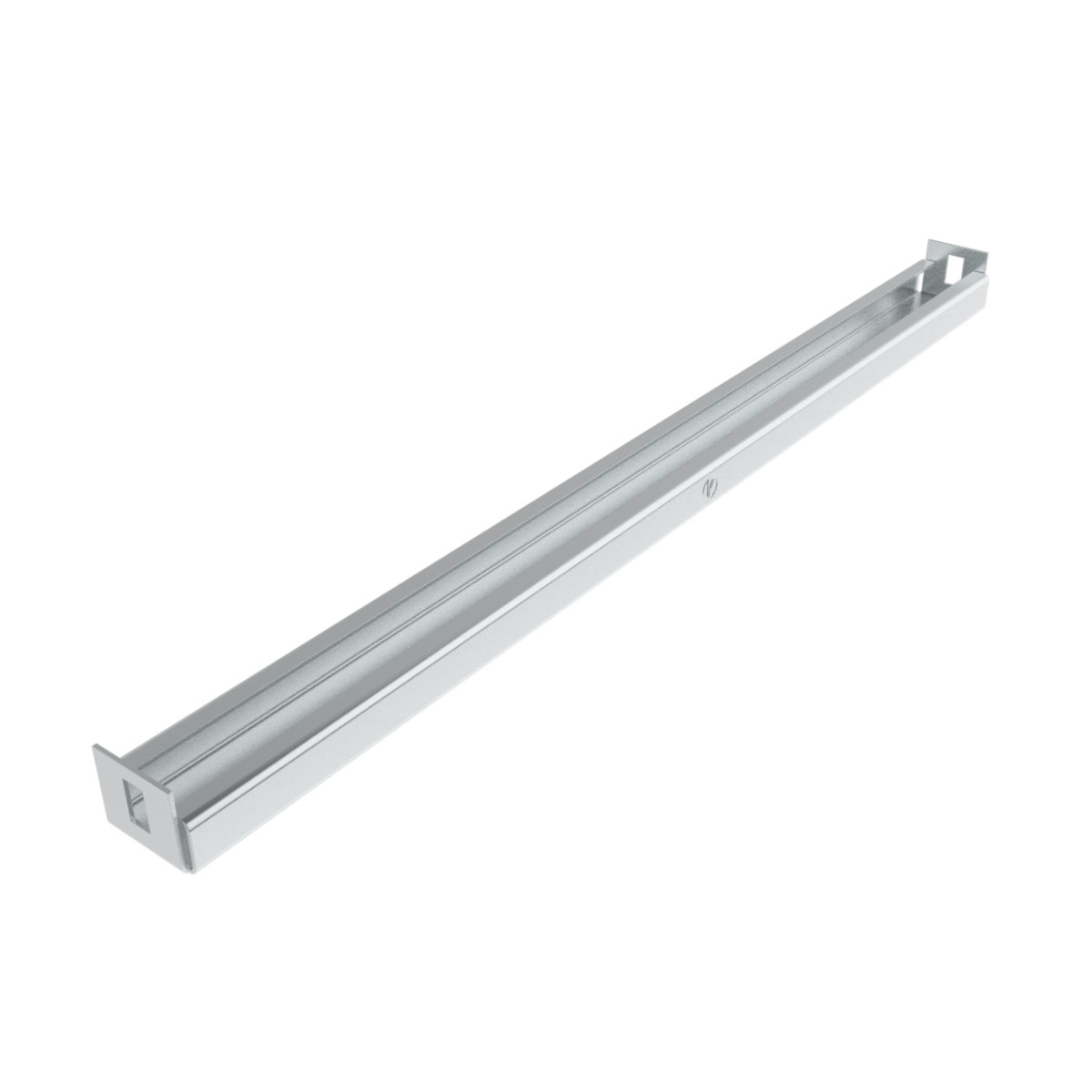

The supporting profiles is designated for the cable trays. It is installed on the bottom of the cable tray and it is fixed by using two bolts NSM 6X10 to the tray sidewalls. It is used for mounting of cable clamps and thereby for the anchoring of the cables inside the tray. It finds its use primarily in vertical routes, for the lightening of the cable tension. When using a cover it is necessary to take into account the height of the clamps.
