Imagine ilustrativă
PKC1_EN
| Cod Ean | 8595057642232 |
| Cod vamal | 73269098 |
| Greutate | 0,0400 kg/pcs |
| Acoperire de suprafată | Hot Dip Galvanized |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimensiunea A | 10 mm |
| Dimensiunea B | 19 mm |

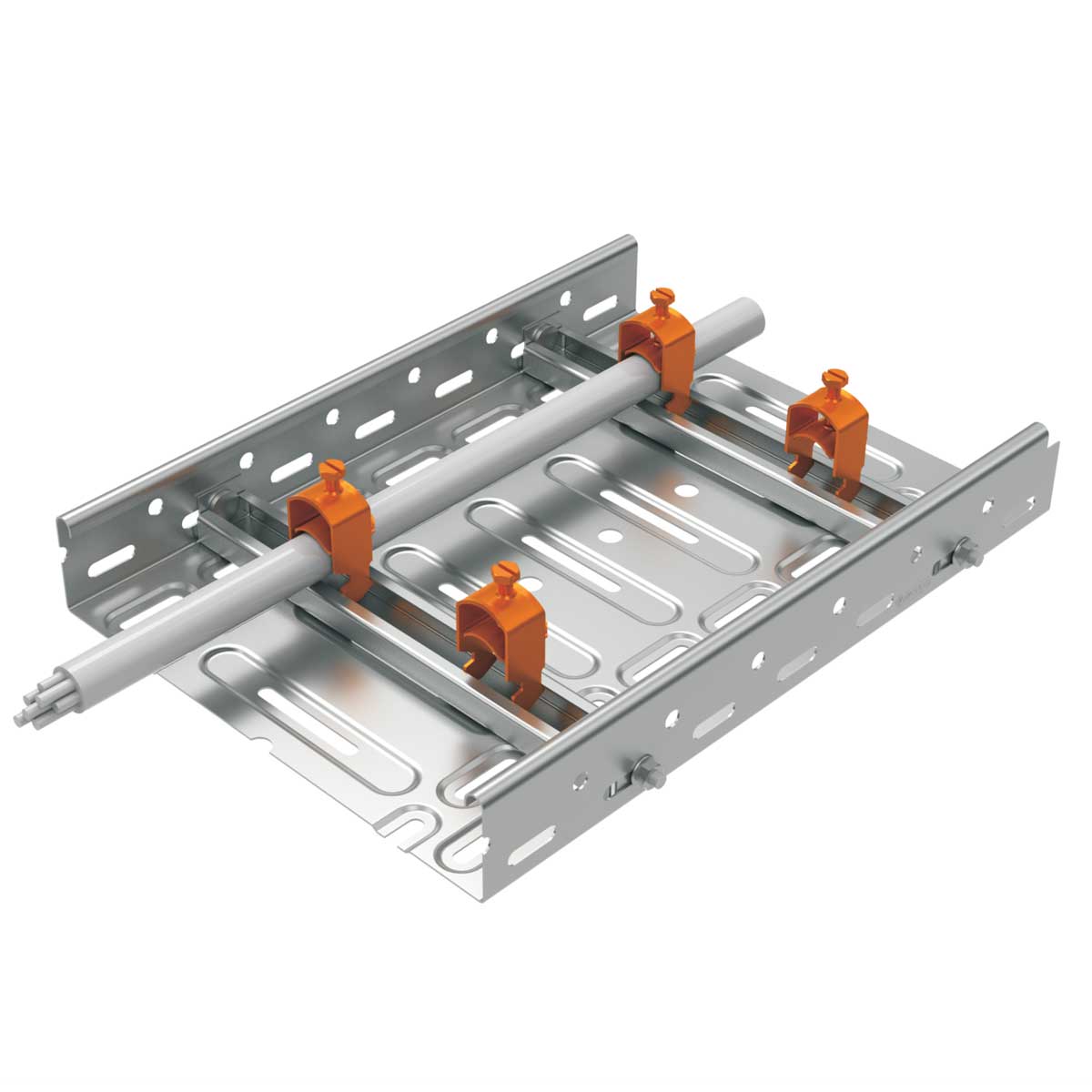

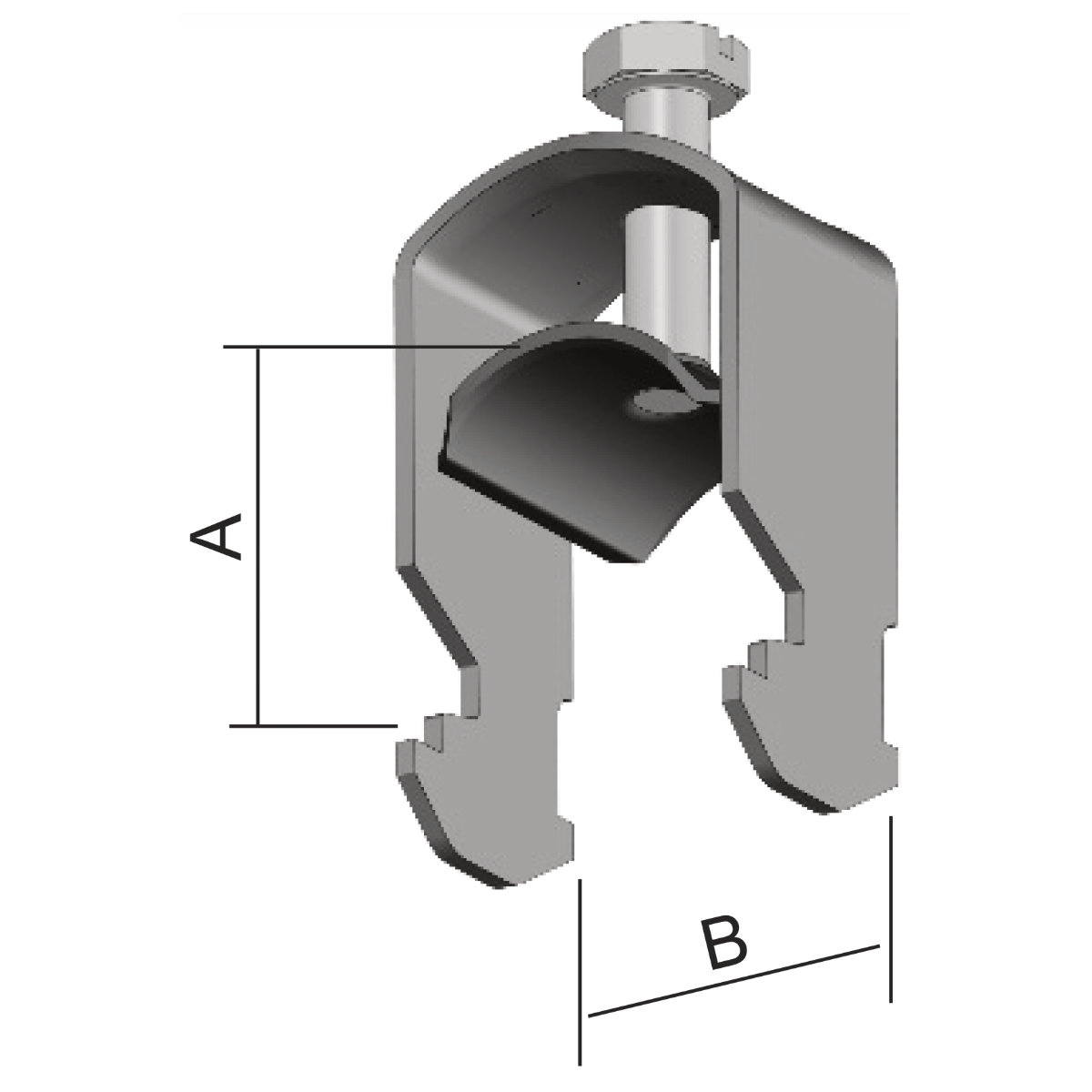

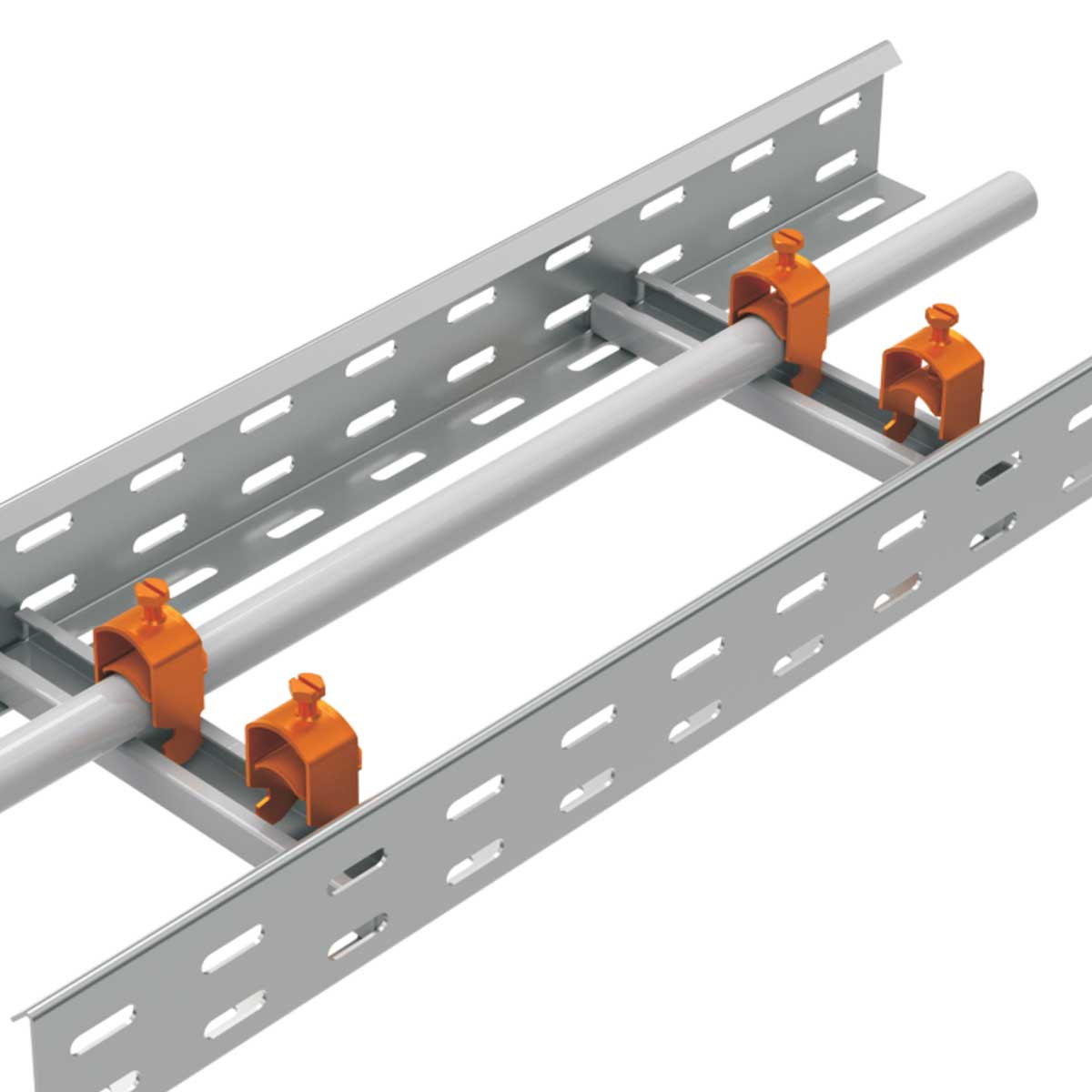

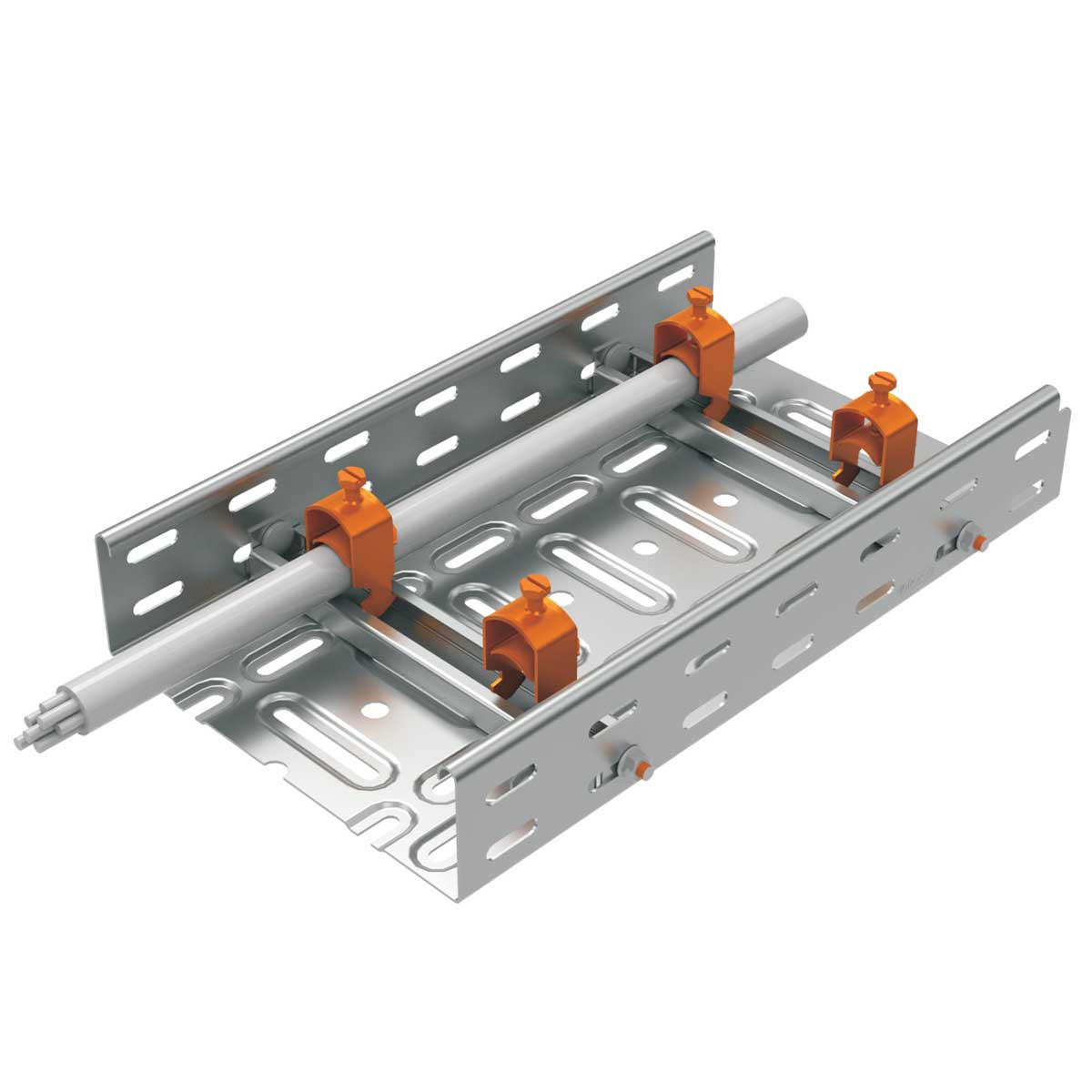

A min and B indicate the minimum and maximum diameter of the cable being fastened. For basic orientation in choosing cable clamp, use mentioned propositions. The basic surface treatment with which clamps are delivered makes it possible to use them even in harsh weather environments. The clams are designed to secure cable to partition cable tray, load bearing profile NPKV 50-600 or load bearing profile NP 30X15X1.20.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
