KO110L_EN
| Cod Ean | 8595057611672 |
| Cod vamal | 39259080 |
| Greutate | 0,1607 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

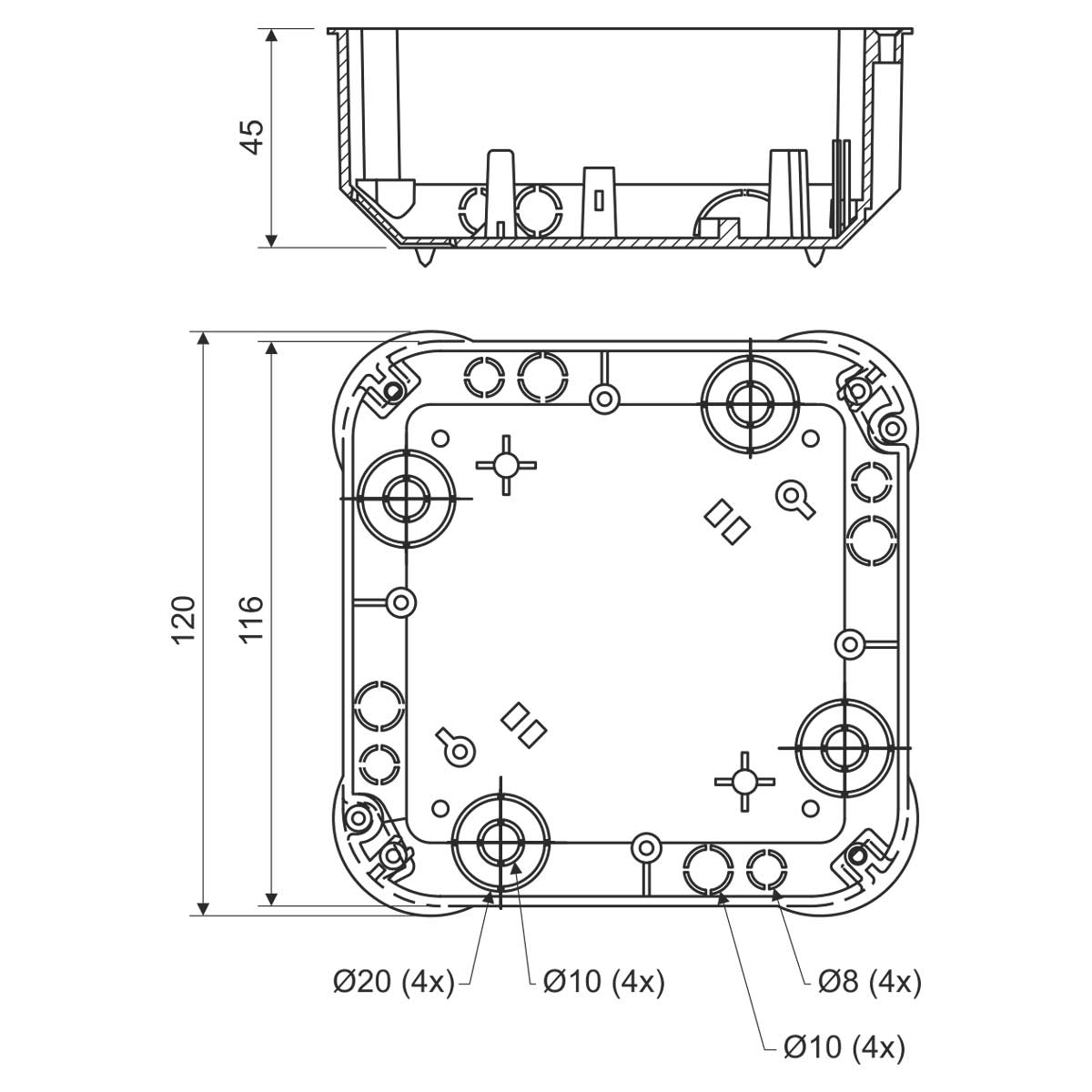

| Lătime | 116 mm |
| Înăltime | 116 mm |
| Adâncime | 45 mm |
| Diametrul orificiului găurit (forat) | 40 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare screws for fixing the lid and mounting in plasterboard inserted together with the partition into the box, individual the boxes are sealed together with the lid in shrink wrap and provided with a label | |

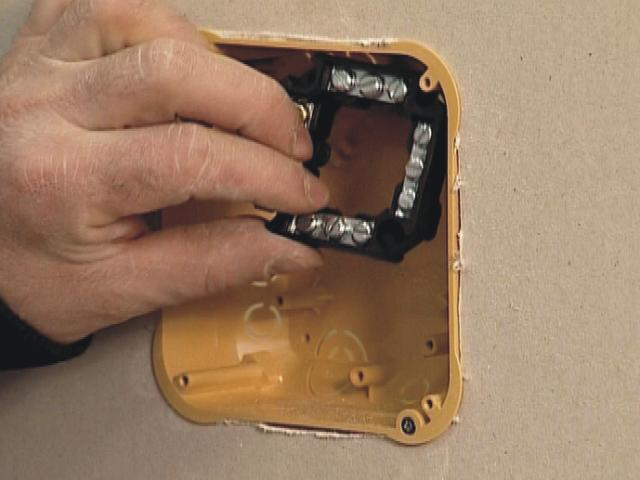

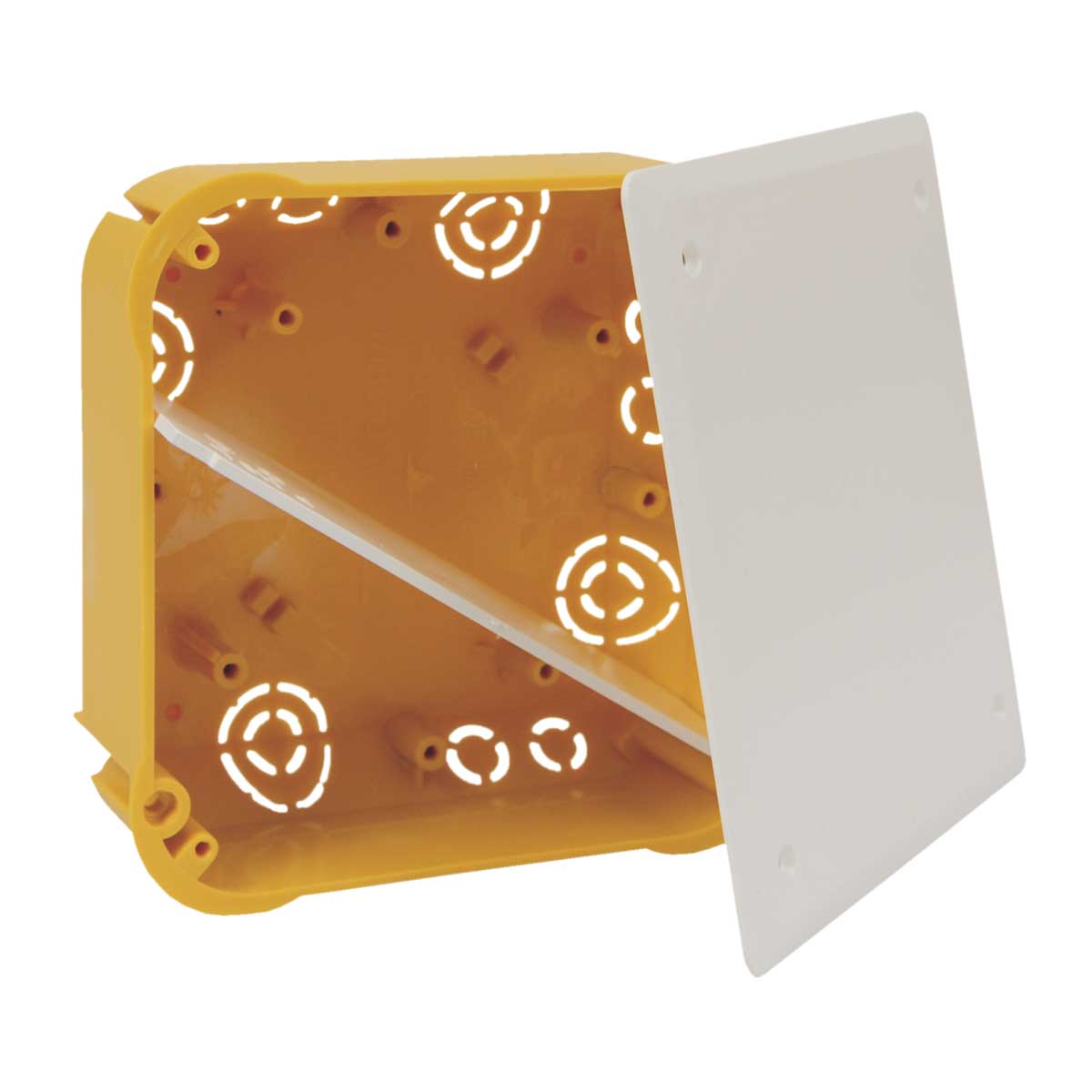

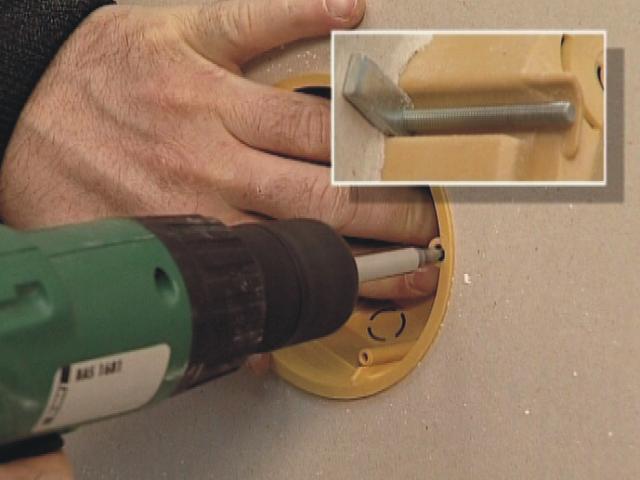

The box can be used with an S-96 or SP-96 terminal strip or with two S-66 terminal strips, separated by a partition. Possibility to connect two different circuits of up to 400 V separated by a partition. Mounting screws are fitted with a triple thread for quick installation. Outer side of the bottom contains holes for marking drill holes. The IP30 protection complys a box fitted with a lid.
