Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Conformity declaration
| Cod Ean | 8595057633971 |
| Cod vamal | 39269097 |
| Greutate | 0,0224 kg/pcs |
| Material | PC-ABS |
| Material fără halogeni | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -20 - 80 °C |
| Testat cu buclă incinsă | 850 °C |

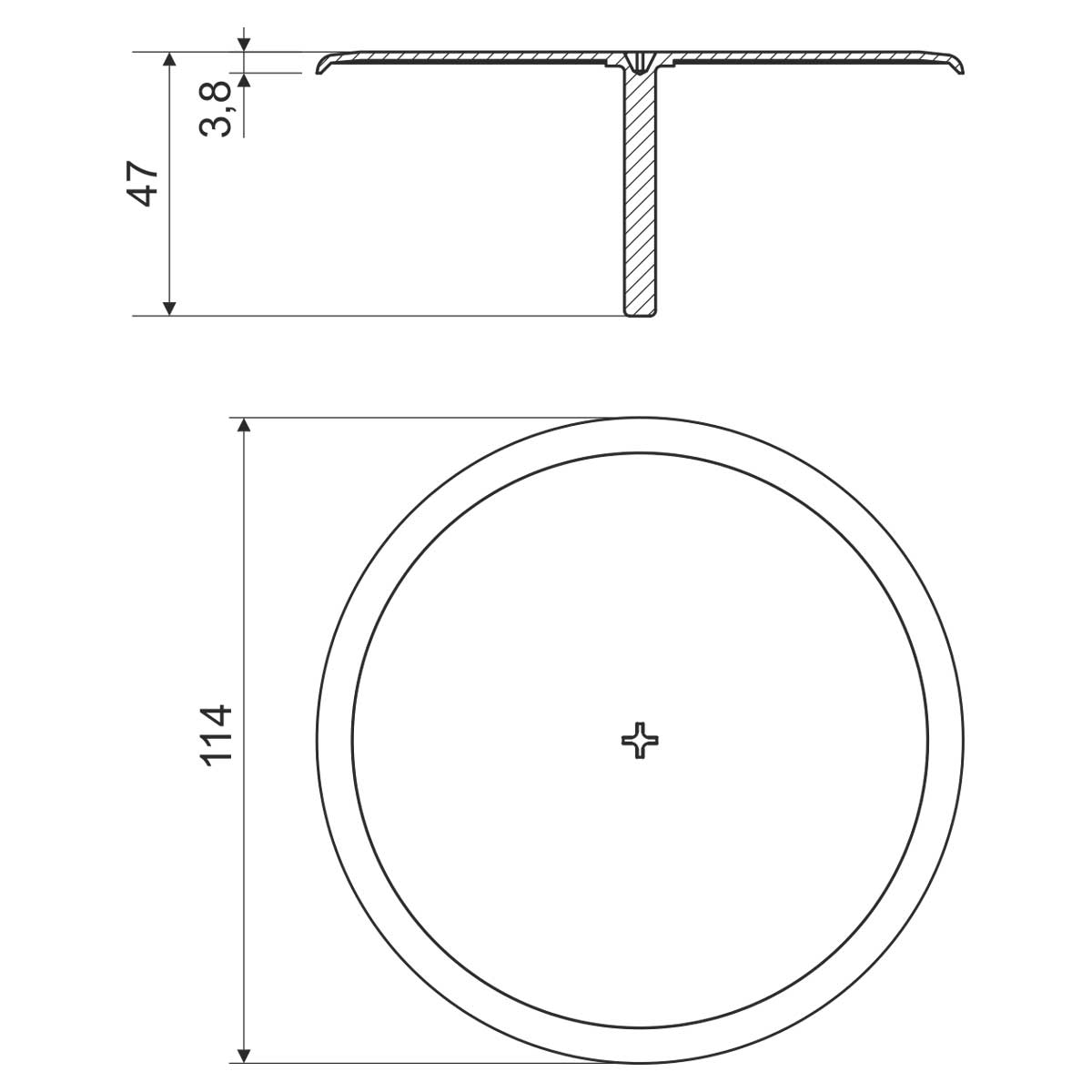

| În medie | 114 mm |
| Adâncime | 47 mm |
| Grosime | 3,8 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Descriere impachetare the lids are packed in the bag, the bag is put in the carton | |

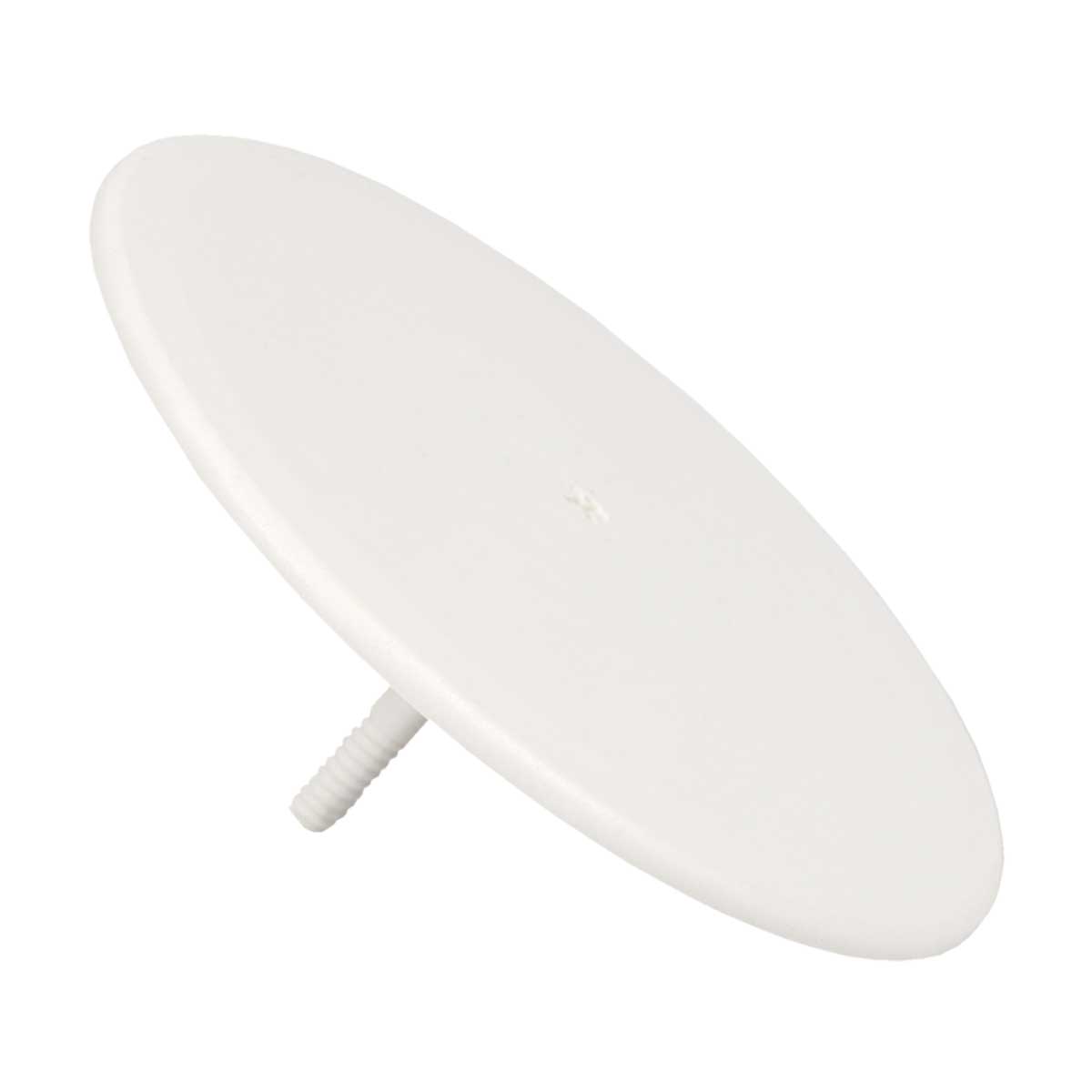

For premises with increased need for protection of persons and property. For the final covering of box KOM 97HF. The lid is provided with edge that allows trouble-free covering of wiring boxes installed in concrete or hollow walls.
