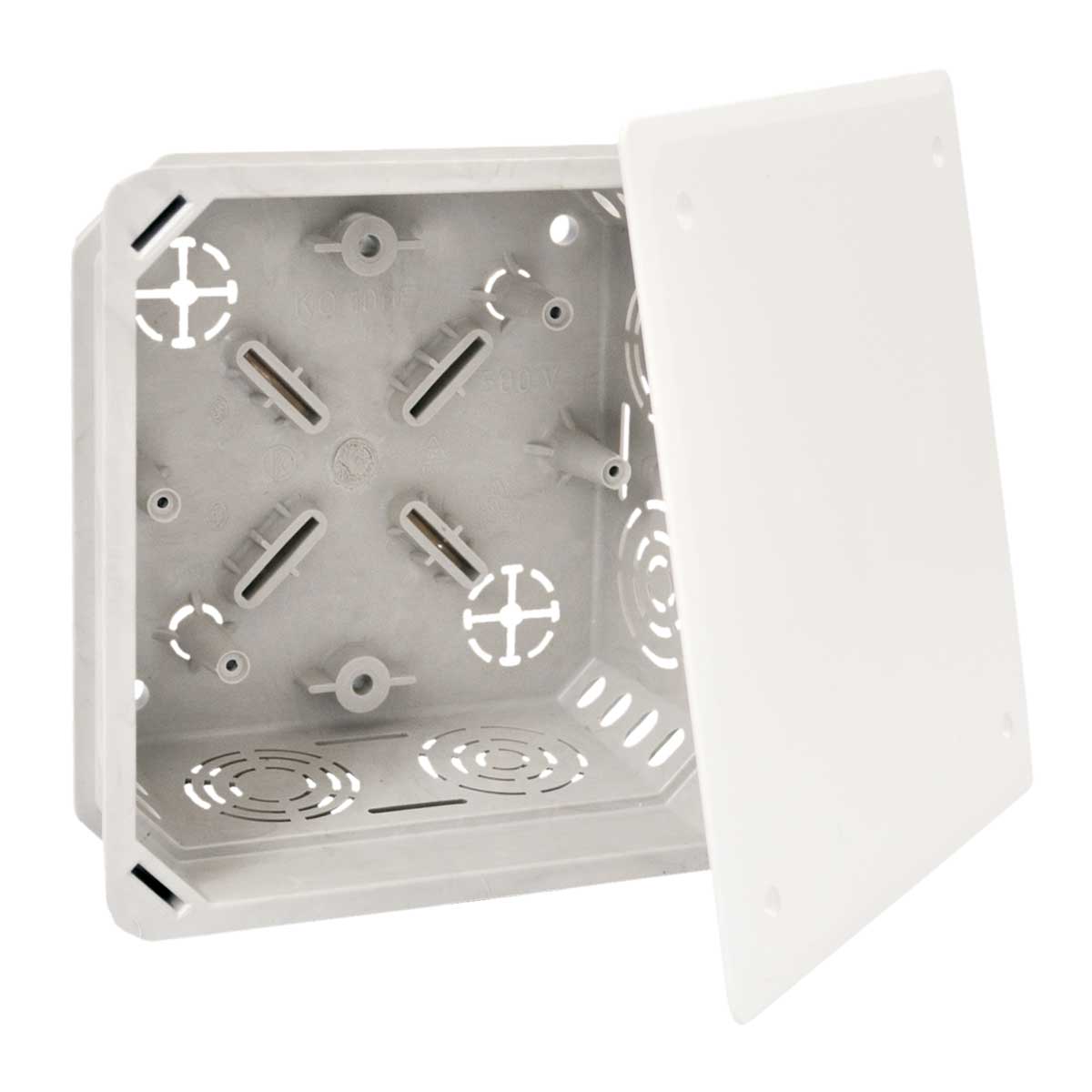

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KO100E_EN
| Cod Ean | 8595057612655 |
| Cod vamal | 39259080 |
| Greutate | 0,1870 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

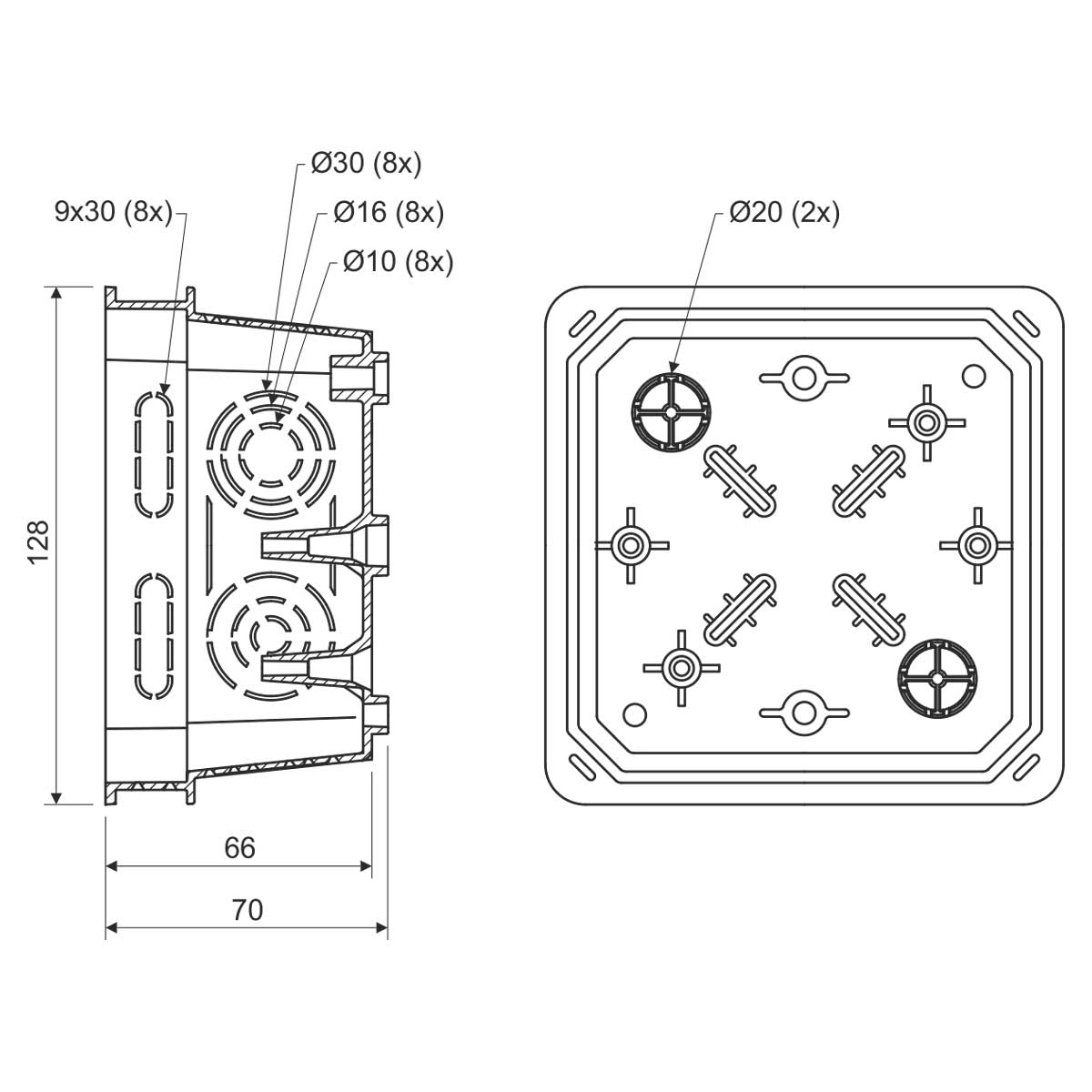

| Lătime | 128 mm |
| Înăltime | 128 mm |
| Adâncime | 66 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare individual boxes with lids individually packed in shrink foil and provided with a label, screws inserted in package | |
large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35. Possibility to set the lid in and horizontal position. Possibility to break the sidewall for easier cable handling.
