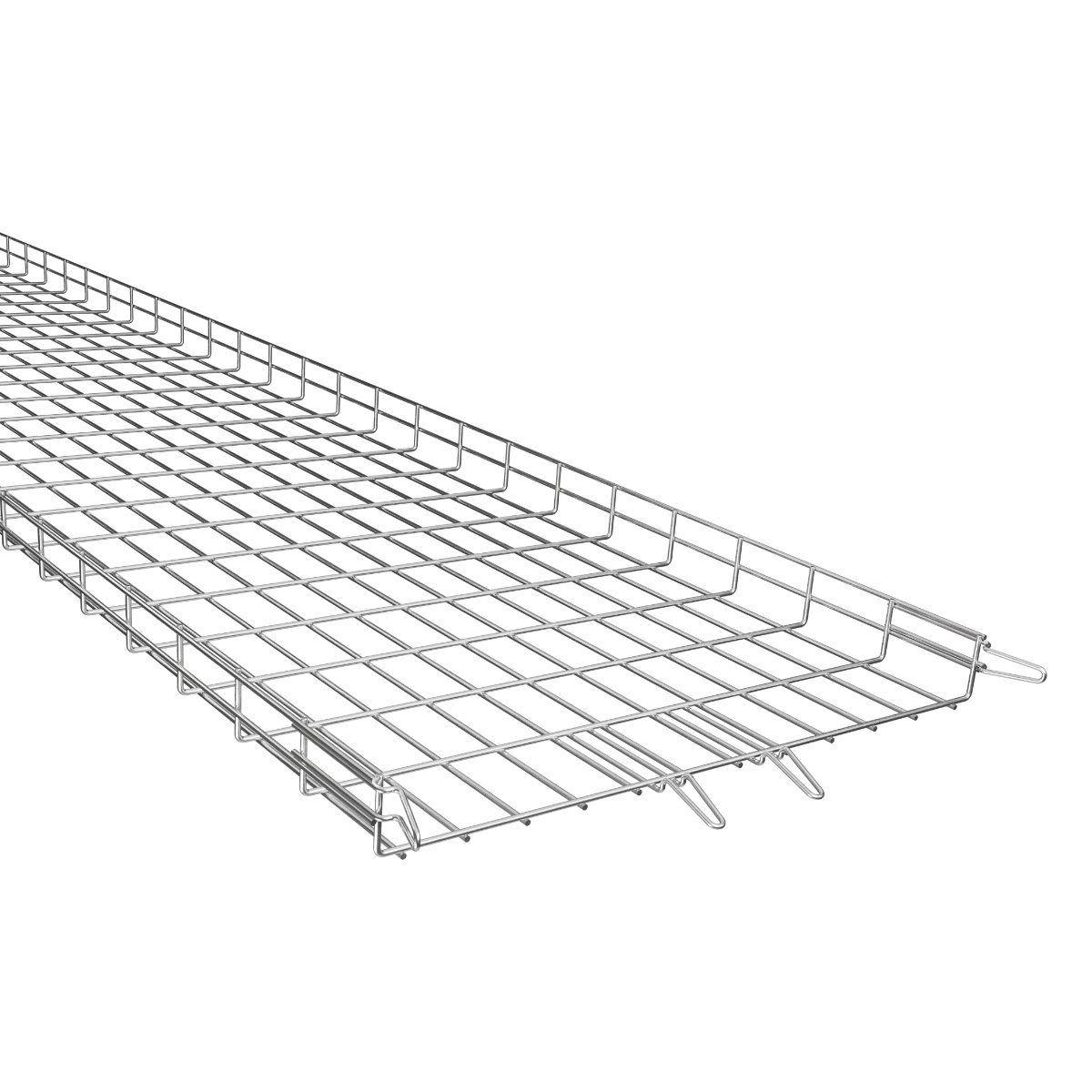

Imagine ilustrativă
DZI_V_EN
| Cod Ean | 8595568940001 |
| Cod vamal | 73262000 |
| Greutate | 3,1200 kg/m |
| Acoperire de suprafată | Electrolytic Galvanized |
| Lătime | 600 mm |
| Înăltime | 60 mm |
| Lungime | 3000 mm |
| Standarde | ČSN EN 61537 |
| Diametru cablu | 4,3 - 4,8 mm |
| Grătar inferior | 50x100 |
| Partea de instalare pe baza jgheabului de tablă | 2 |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
