Imagine ilustrativă
To download 3D models, please login or create an account and request access.
DZI_EN
| Cod Ean | 8595568927927 |
| Cod vamal | 73262000 |
| Greutate | 3,1800 kg/m |
| Acoperire de suprafată | Electrolytic Galvanized |
| Lătime | 600 mm |
| Înăltime | 60 mm |
| Lungime | 3000 mm |
| Standarde | ČSN EN 61537 |
| Diametru cablu | 4,6 mm |
| Grătar inferior | 50x100 |
| Partea de instalare pe baza jgheabului de tablă | 2 |

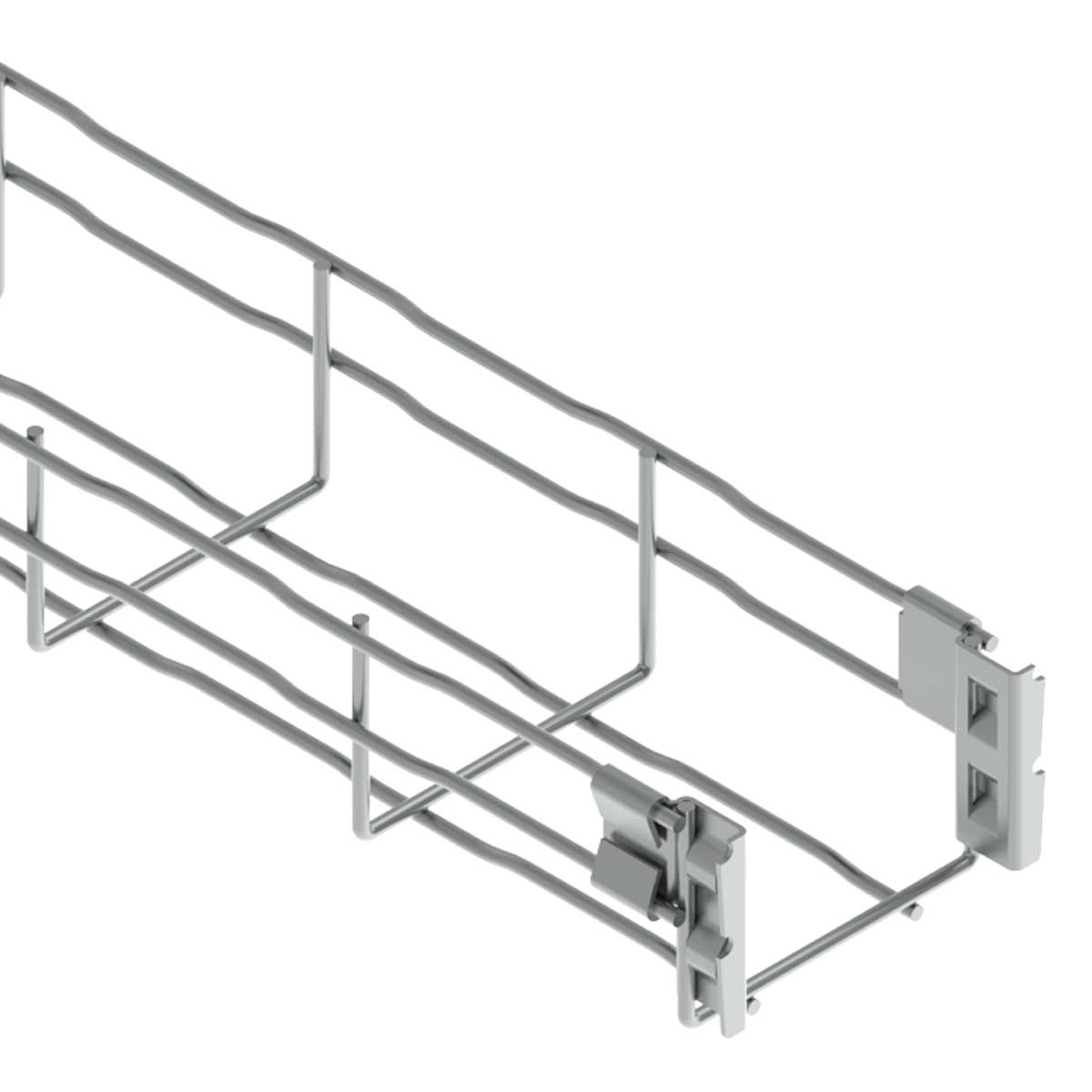

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
