DZI_EN
| Cod Ean | 8595568927903 |
| Cod vamal | 73262000 |
| Greutate | 1,9800 kg/m |
| Acoperire de suprafată | Electrolytic Galvanized |

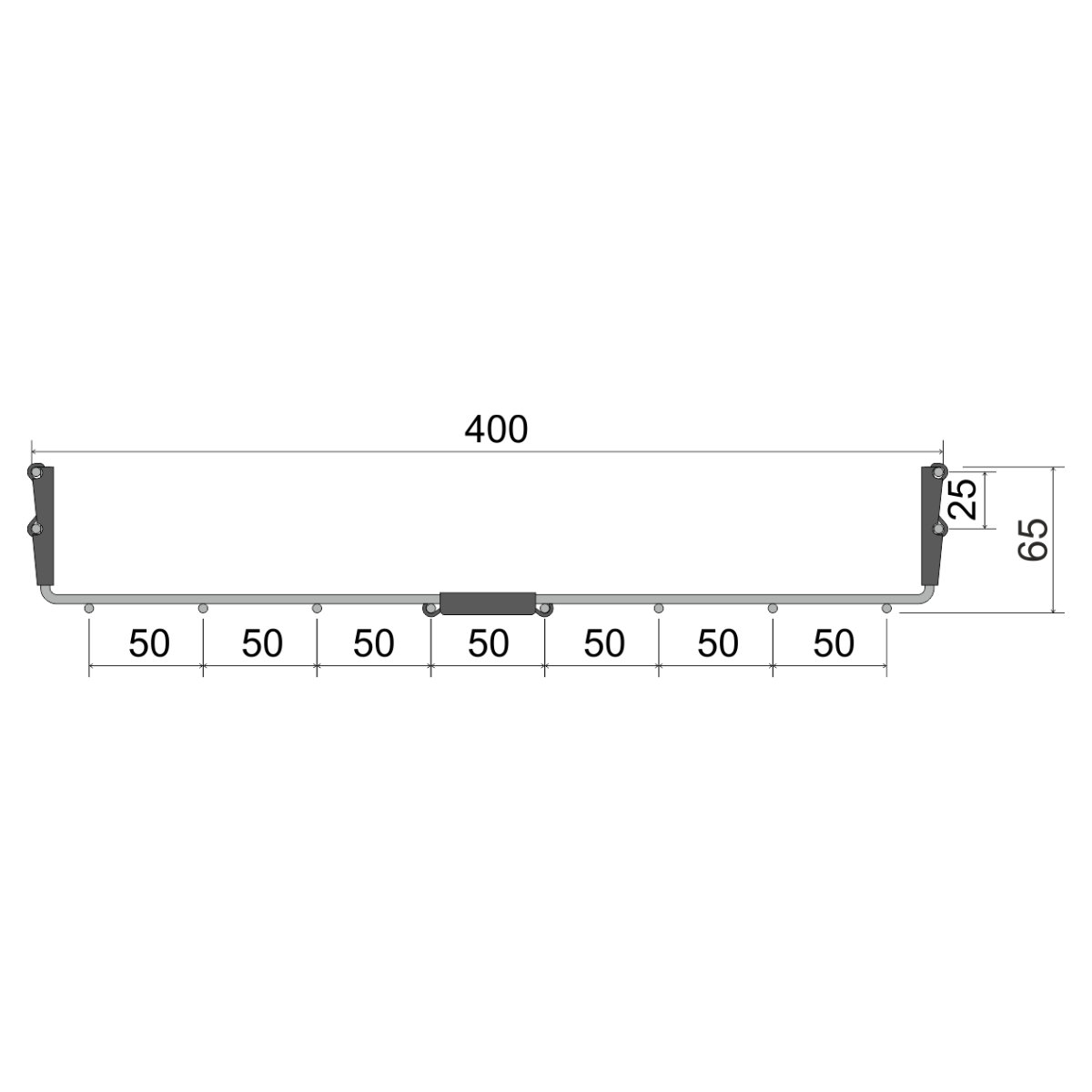

| Lătime | 400 mm |
| Înăltime | 60 mm |
| Lungime | 3000 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Diametru cablu | 4,3 mm |
| Grătar inferior | 50x100 |
| Partea de instalare pe baza jgheabului de tablă | 1 |
| Încărcătură maximă pentru rezistența la foc | 5 - 10 kg |

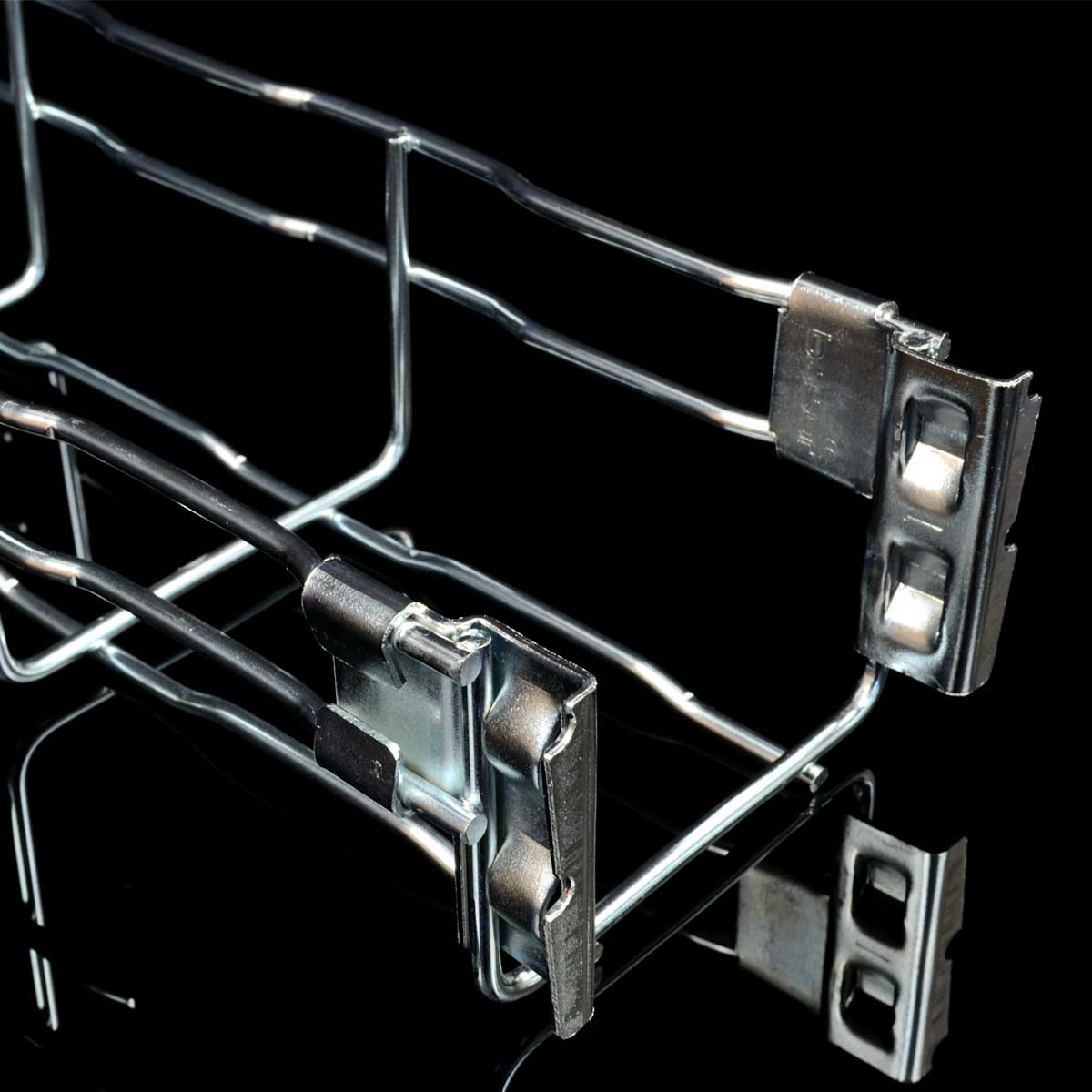

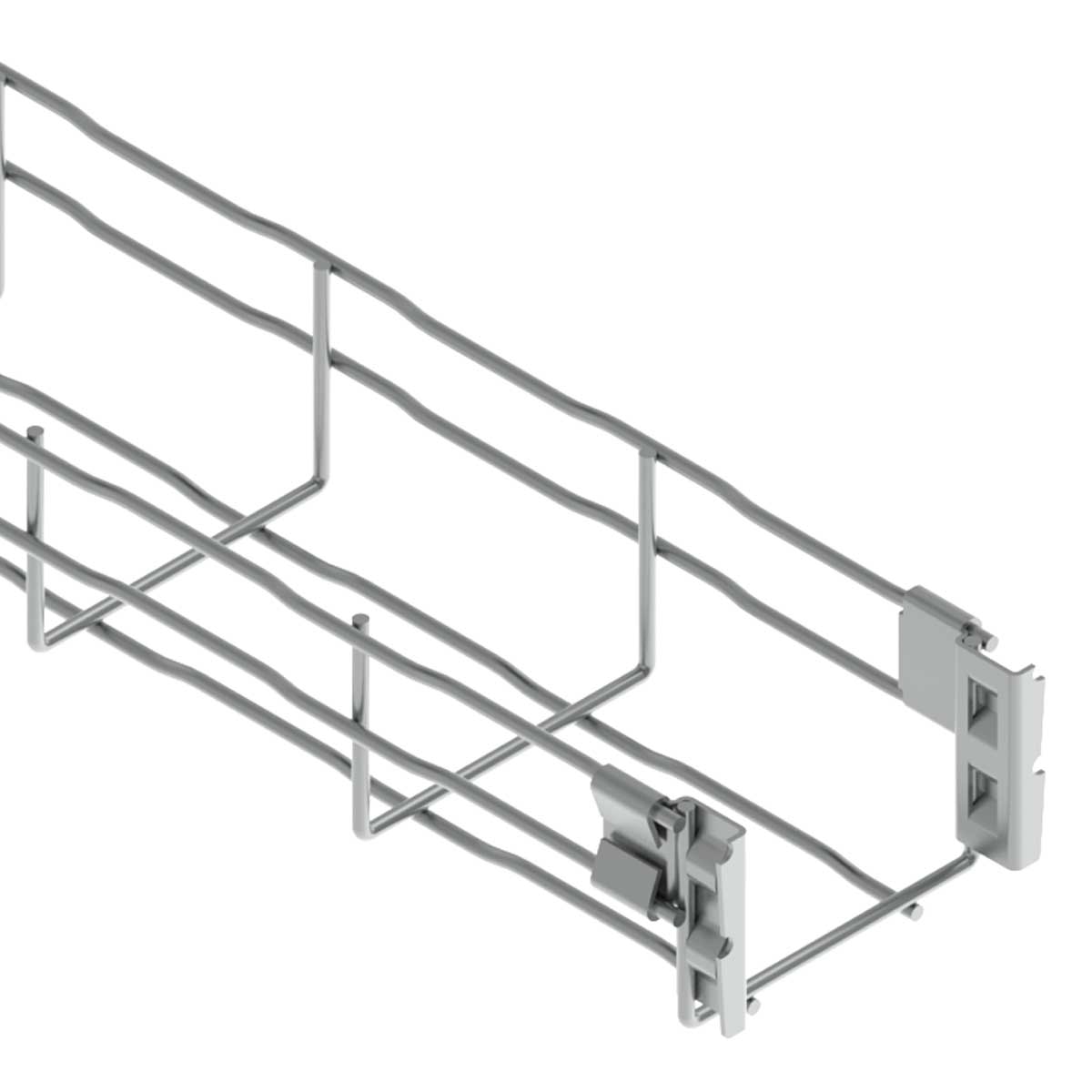

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
Note for system with maintained functionality in fire:
There are couplings at one end of the wire cable tray - to the width of 200 mm the couplings are situated on the sideways; from the width 300 mm there are couplings on the sideways and also at the bottom of the tray. In this way the conductive connection is fulfilled. The DZI wire tray with fire resistance is fixed with a DZS/B screw.
You find more information in the catalogue Systems with maintained functionality in fire.
