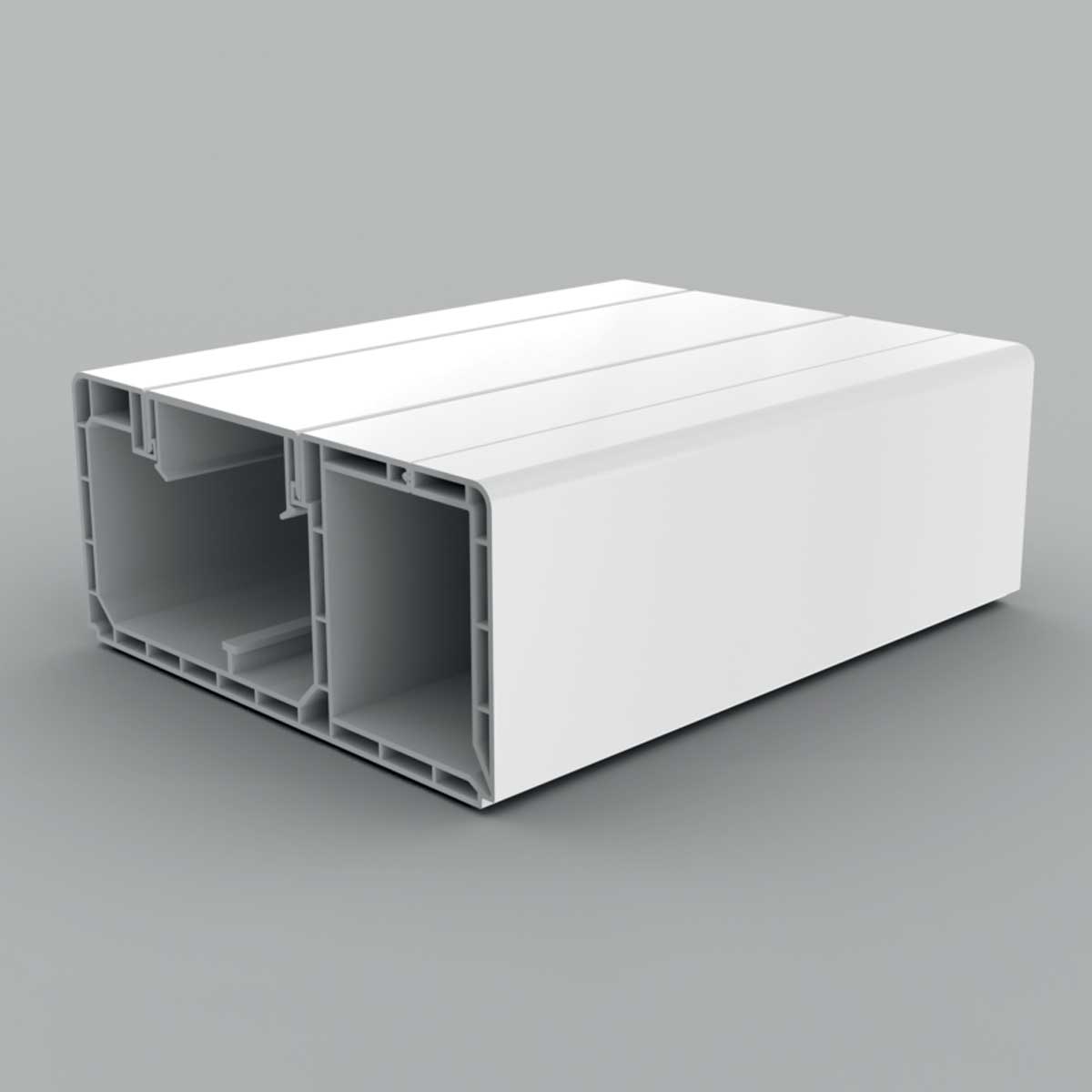

PK120X55D_EN
| Cod Ean | 8595057650572 |
| Cod vamal | 39259020 |
| Greutate | 1,2480 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Protectie mecanică | IK07 |
| Rezistență la impact | 1 J |
| Antibacterial | yes |

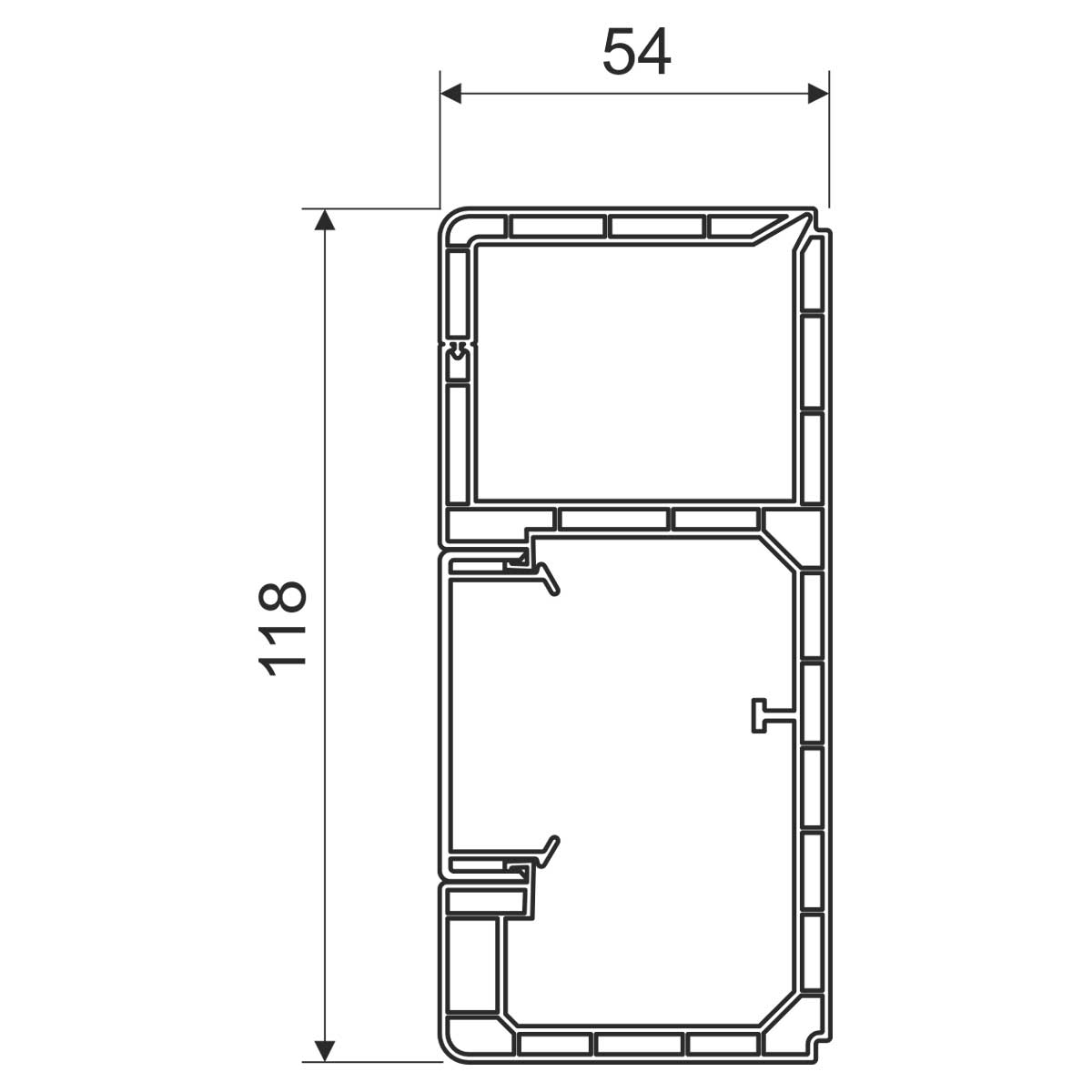

| Lătime | 118 mm |
| Înăltime | 54 mm |
| Lungime | 2 m |
| Zona interioară | 1550, 2250 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Recomandările producătorului The producer recommends checking the depth of a particular device before installation. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
| Cu folie de protecţie | yes |
Designed for installation of modular devices 45x45 or 45x22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g. ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira with maximal instrument depth 42 mm. The tilting section allows inserting the shielding canal SK 40X20 or SK 40X33, which ensures shielding of data circuits. If shielding and therefore inserting shielding canals is required, parapet trunking must be installed with tilting section up. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument. Registered industrial design.
