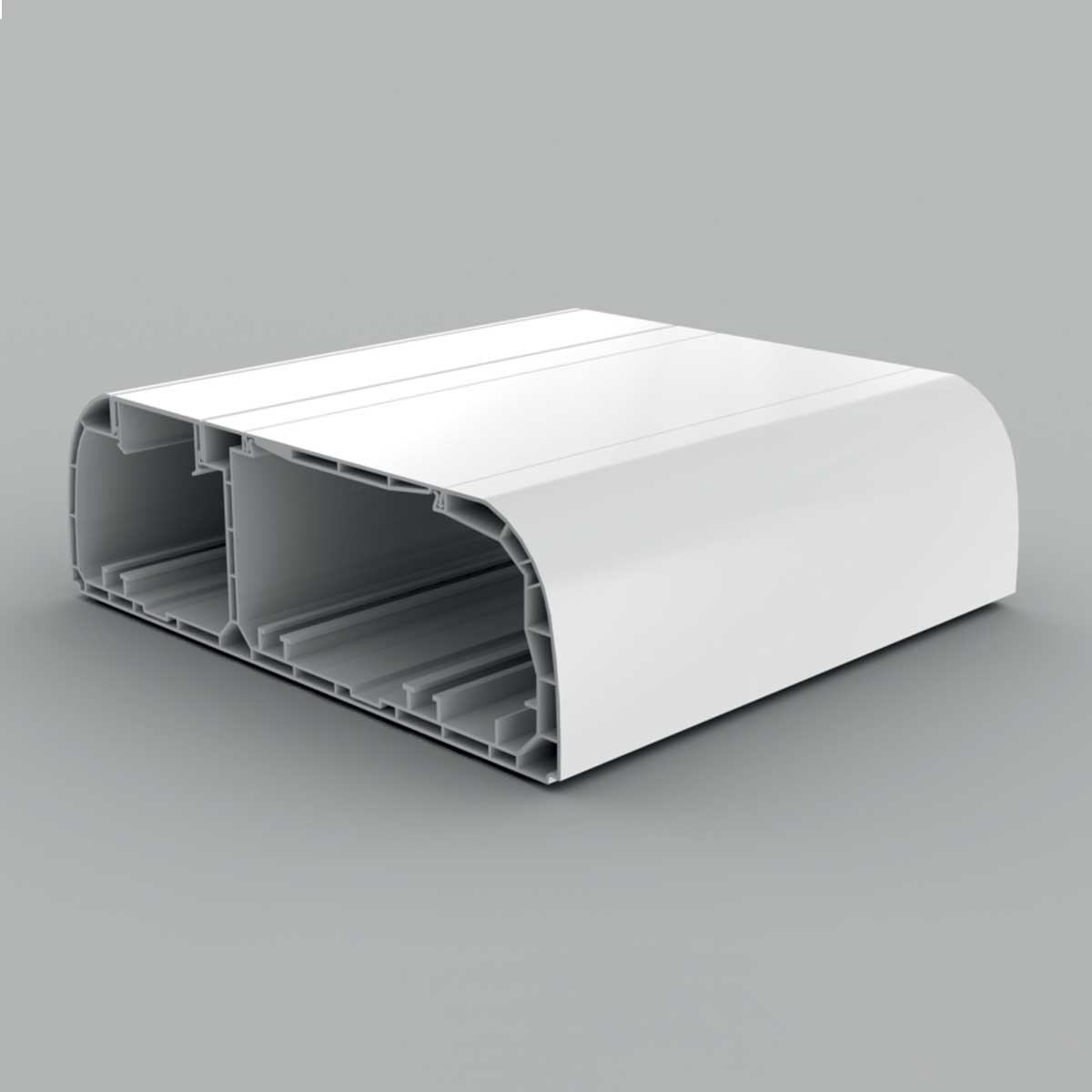

PK210X70D_EN
| Cod Ean | 8595057668683 |
| Cod vamal | 39259020 |
| Greutate | 1,9140 kg/m |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Protectie mecanică | IK07 |
| Rezistență la impact | 1 J |
| Antibacterial | yes |

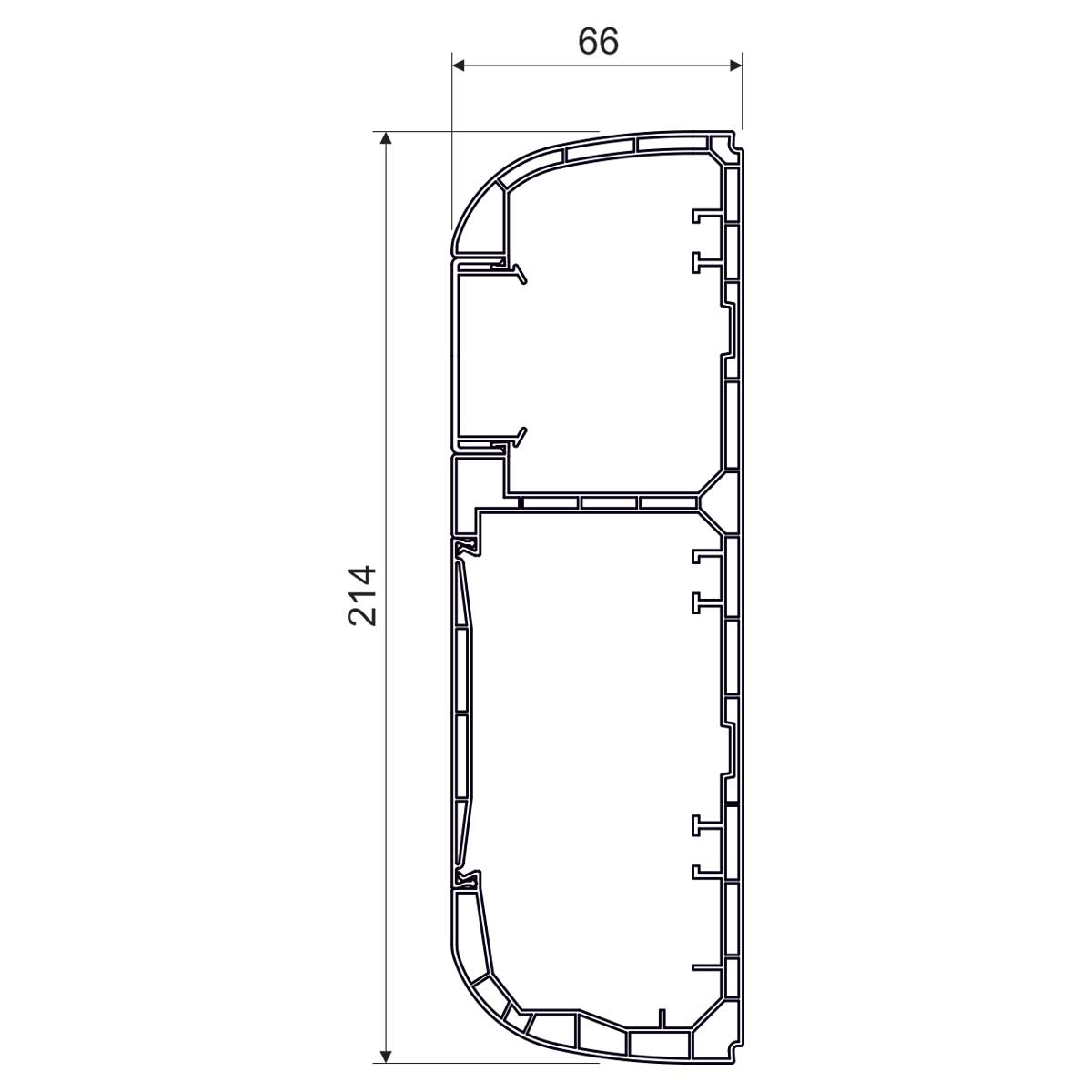

| Lătime | 214 mm |
| Înăltime | 66 mm |
| Lungime | 2 m |
| Zona interioară | 4400, 3100 |
| Toleranță The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Utilizare they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Recomandările producătorului When mounting SK 40X33 into trunking, you cannot use devices with a greater mounting depth, eg with an overvoltage protection device. The producer recommends checking the depth of a particular device before installation. | |
| Zonă cu pericol de explozie Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 40 |
| Standarde | ČSN EN 50 085-1 |
| Descriere impachetare | package - cardboard |
| Cu folie de protecţie | yes |
Designed for installation of standard and modular devices 45x45 or 45x22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation of devices from other manufacturers is possible with maximal instrument depth 54mm. Its construction allows the insertion of SK 40X… shielding channels (into both chambers) and all kinds of partitions, which effectively divide the interior space. KP PK instrument box with 8450 instrument washers are designed for mounting standard instruments and allow the installation of combined frames. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular device. The lid is cut to the desired length and inserted next to the instrument. Due to the above characteristics and cover integrity, this parapet trunking ranks among the products with the highest utility value offered by KOPOS KOLÍN a.s. in the area of parapet trunkings. This parapet channel was awarded with the Golden Amper diploma. Registered industrial design.
