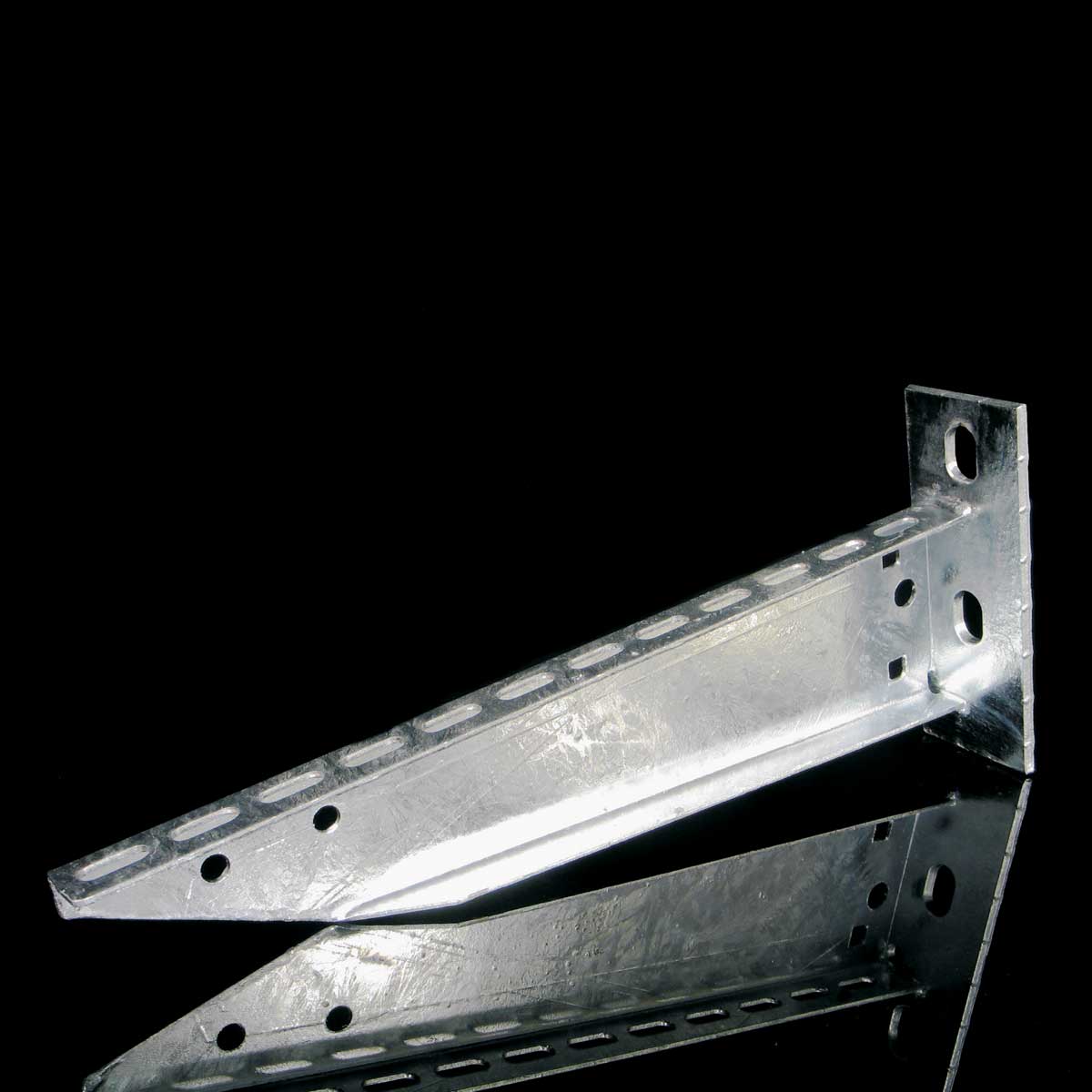

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
DT_EN
| Cod Ean | 8595057639904 |
| Cod vamal | 83024190 |
| Greutate | 1,9000 kg/pcs |
| Acoperire de suprafată | Hot Dip Galvanized |
| Încarcatura maximă | 280 kg |

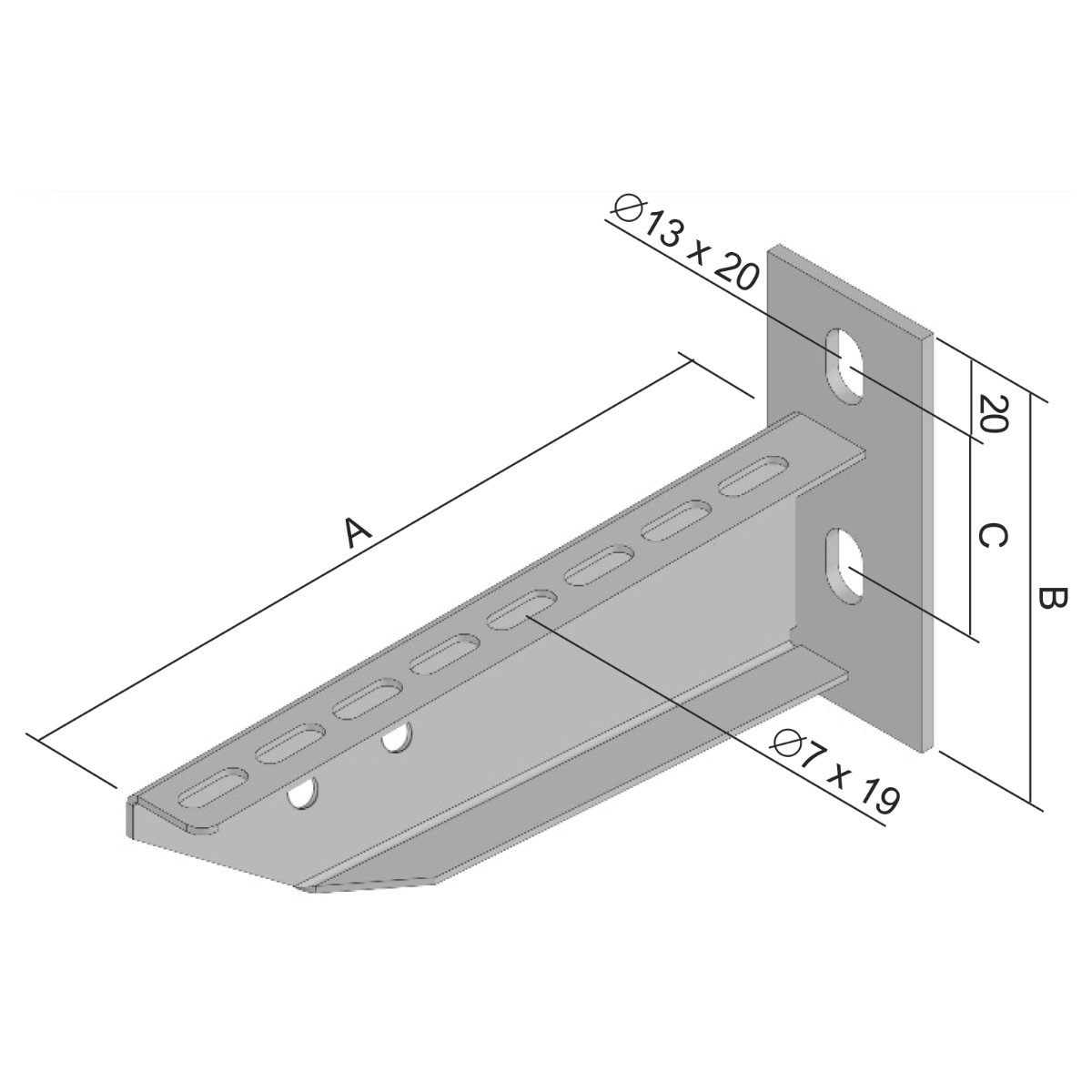

| Dimensiunea A | 820 mm |
| Dimensiunea B | 155 mm |
| Dimensiunea C | 90 mm |
| Pentru lățimea jgheabului de cabluri | 800 mm |
| Pentru inălțimea jgheabului de cabluri | 35 - 110 mm |

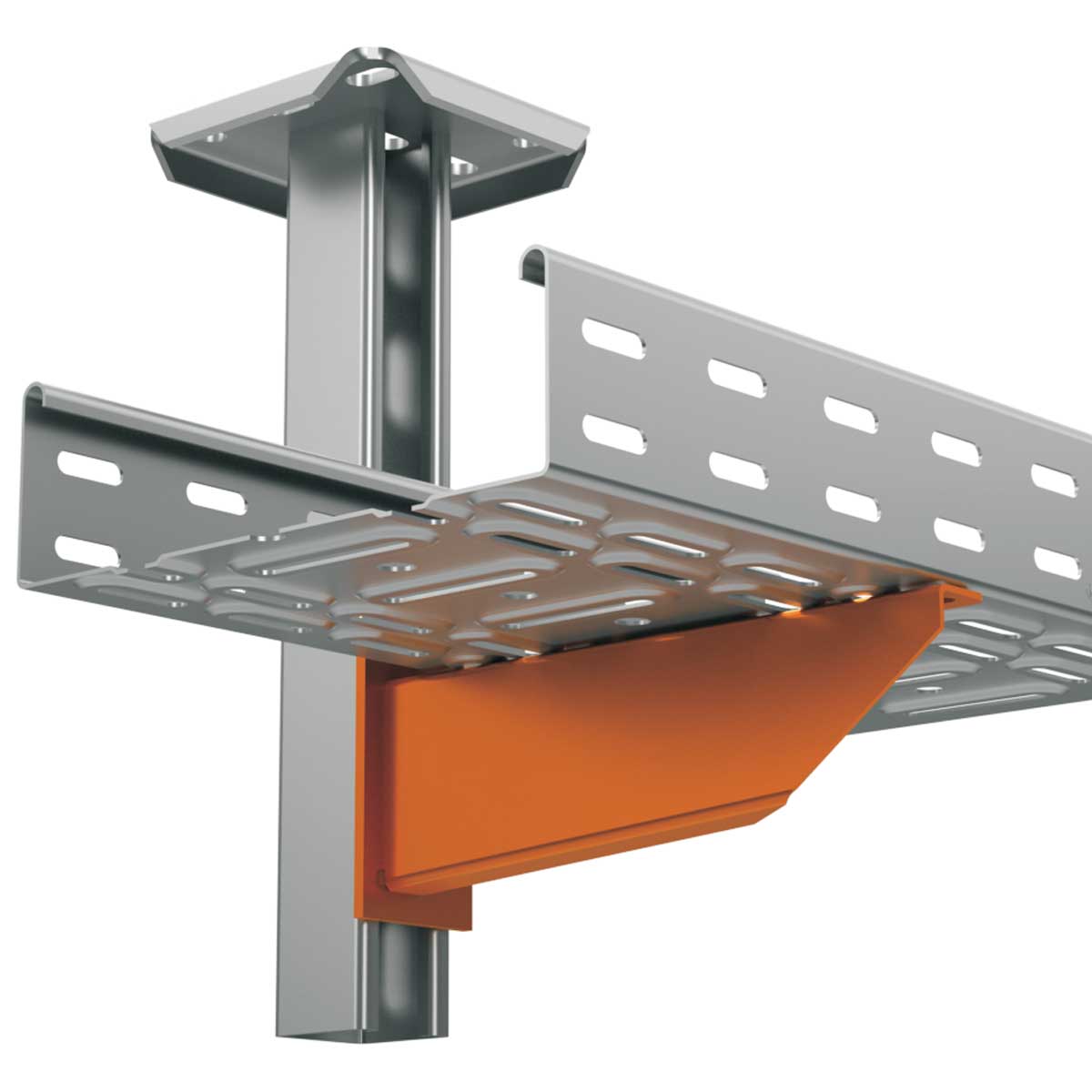

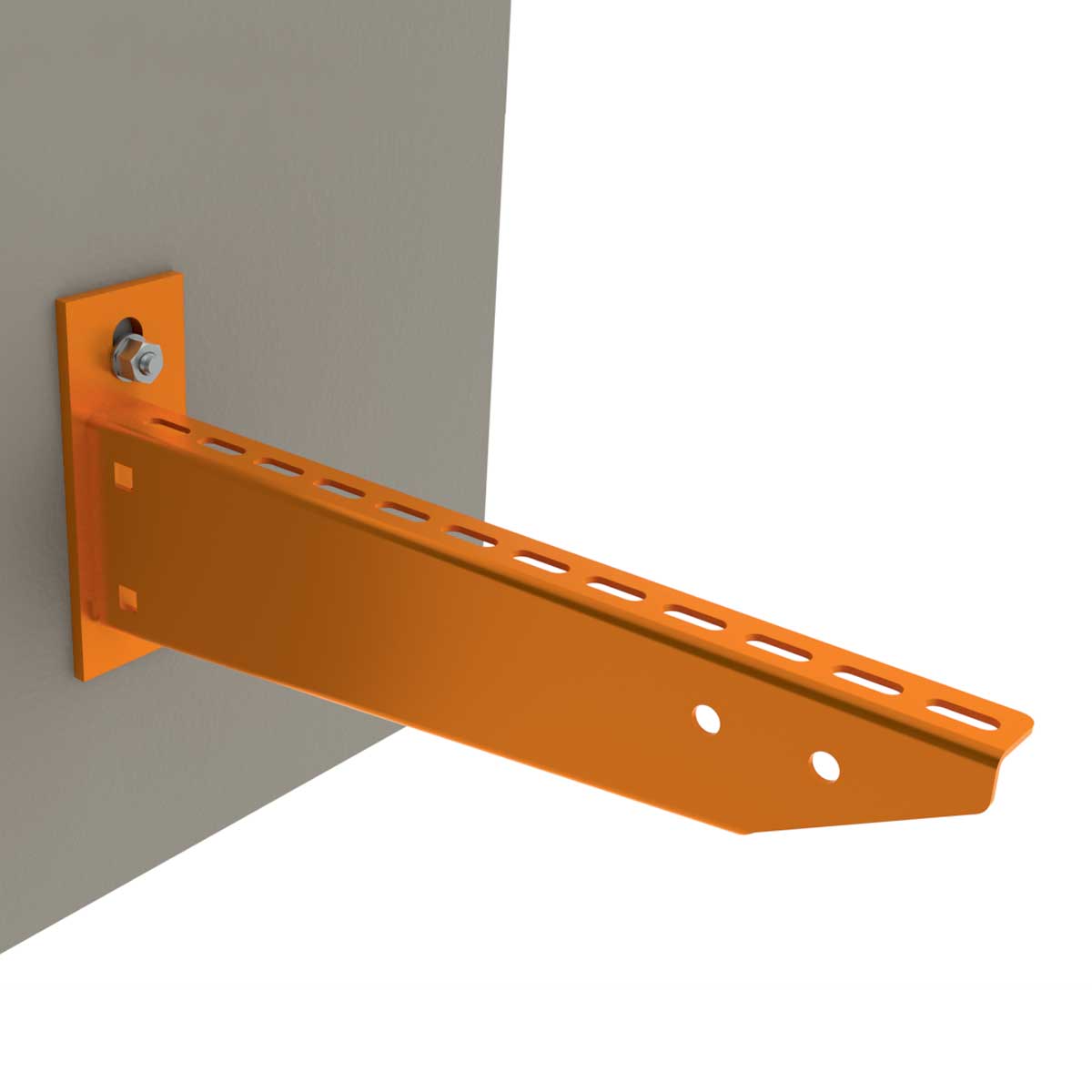

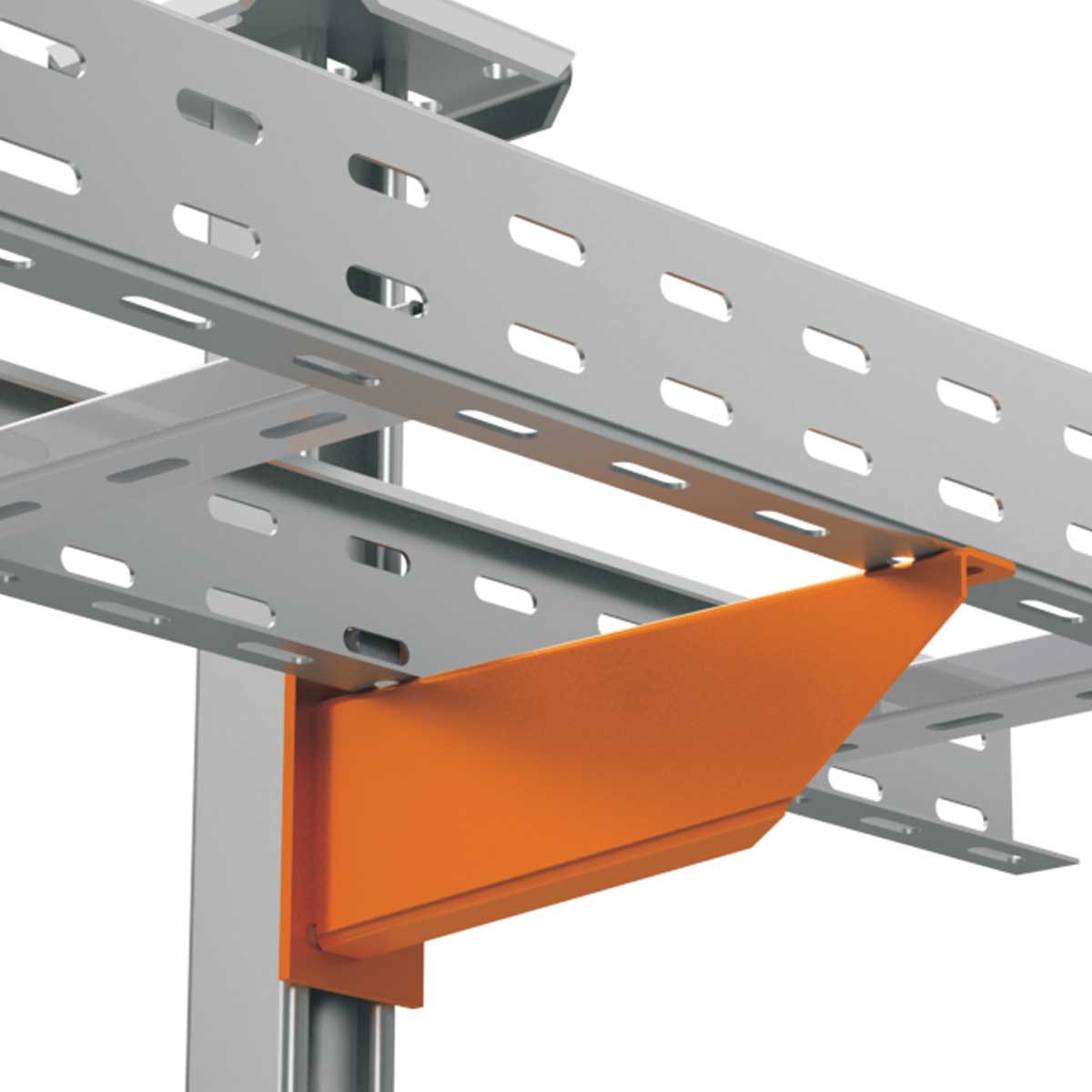

The holder is designed to be mounted on a wall or a ceiling profile. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DT is carried out by bolts NSM 6X10.
