Imagine ilustrativă
To download 3D models, please login or create an account and request access.
INOXSPS_EN
| Cod Ean | 8595568930422 |
| Cod vamal | 83024190 |
| Greutate | 1,4500 kg/buc |
| Material | Stainless steel |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

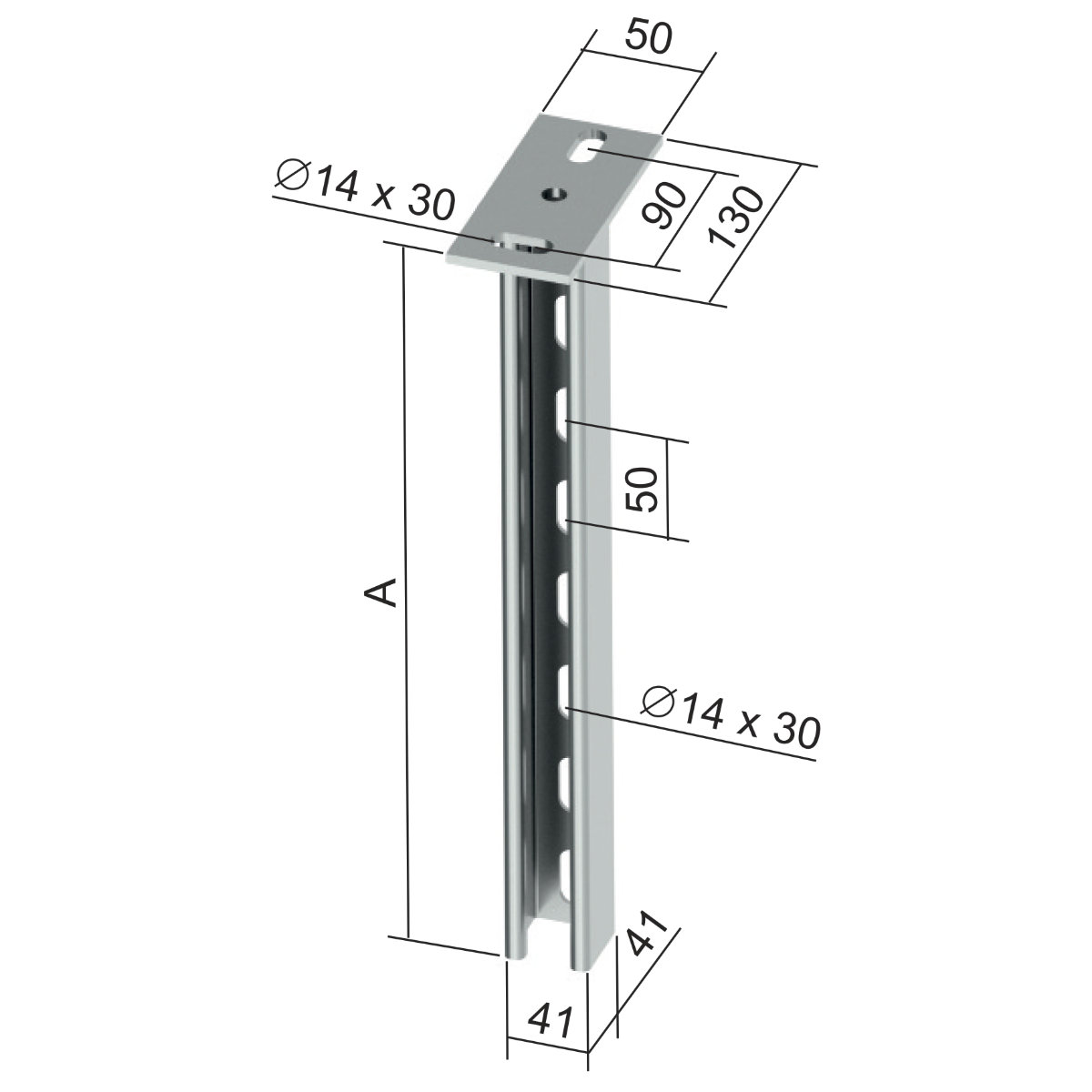

| Dimensiunea A | 507 mm |

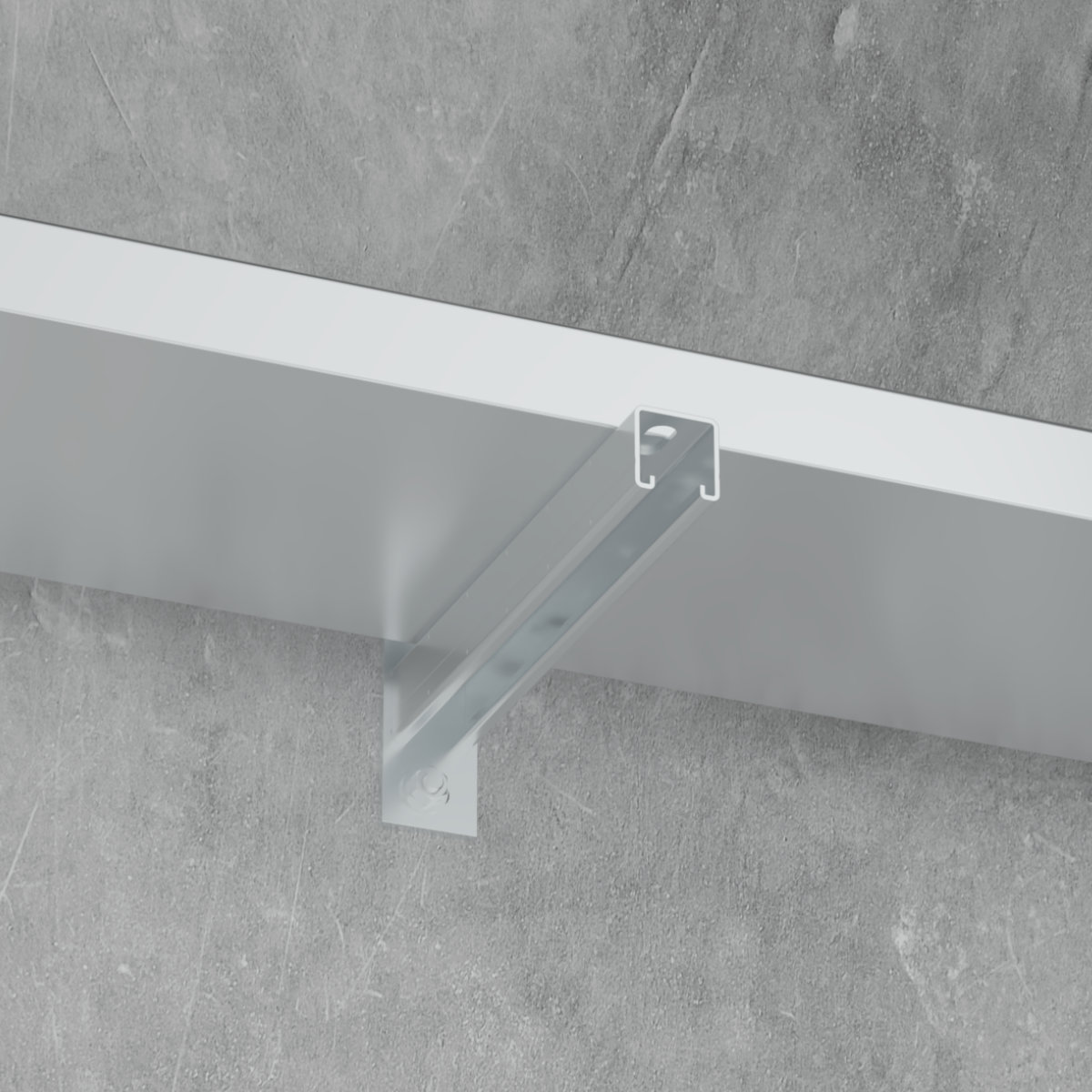

Designated for one sided fastening of the brackets DS, DT and DTN with the use of sliding nuts PM 41 M 10 and the bolts with a hexagonal head S 10X20. The OKSPS seal is designed to protect the end of the profile.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
