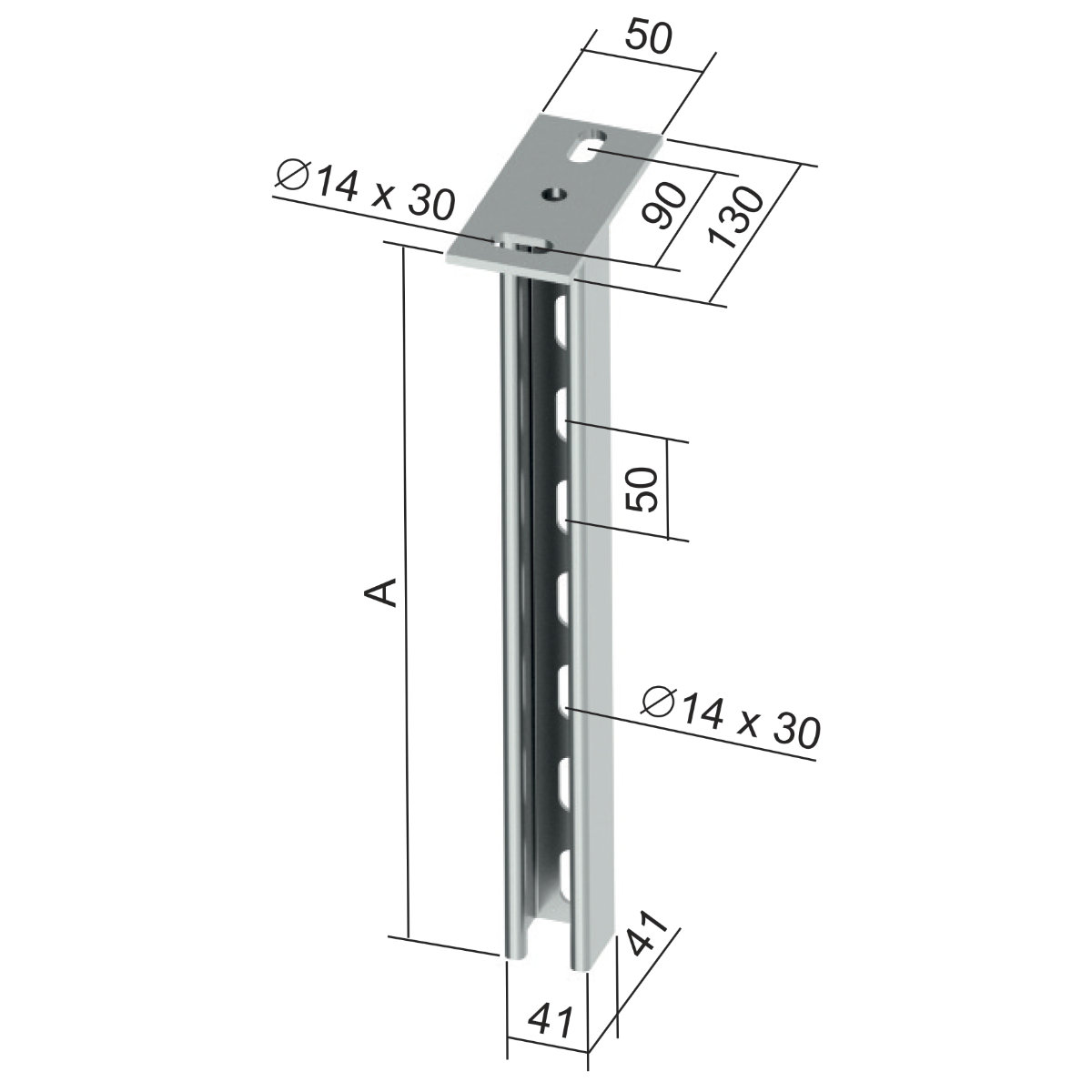

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
SPS_n_EN
| Cod Ean | 8595057640153 |
| Cod vamal | 83024190 |
| Greutate | 3,3900 kg/pcs |
| Acoperire de suprafată | Hot Dip Galvanized |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimensiunea A | 1207 mm |
Designated for one sided fastening of the brackets DLN, DSN, DT and DTN with the use of sliding nuts PM 41 M 10 and the bolts with a hexagonal head S 10X20. The OKSPS seal is designed to protect the end of the profile.
Note for system with maintained functionality in fire:
Designated for attaching of brackets DT with DT OKO the use of the bolt S 10X40 (S 10X70 for dual sided assembly), nuts M 10 and washers PD 10 or PVL 10.
You find more information in the catalogue Systems with maintained functionality in fire.
