KL60_EN
| Cod Ean | 8595057658073 |
| Cod vamal | 73089059 |
| Greutate | 2,6500 kg/m |
| Acoperire de suprafată | Hot Dip Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lătime | 200 mm |
| Înăltime | 60 mm |
| Lungime | 3000 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standarde | ČSN EN 61537 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Grosimea foii de tablă | 1,2 - 1,5 mm |
| Cantitatea de şuruburi pentru instalare | 4 |
| Distanta partiției | 300 mm |
| Încărcătură maximă pentru rezistența la foc | 10 - 20 kg |

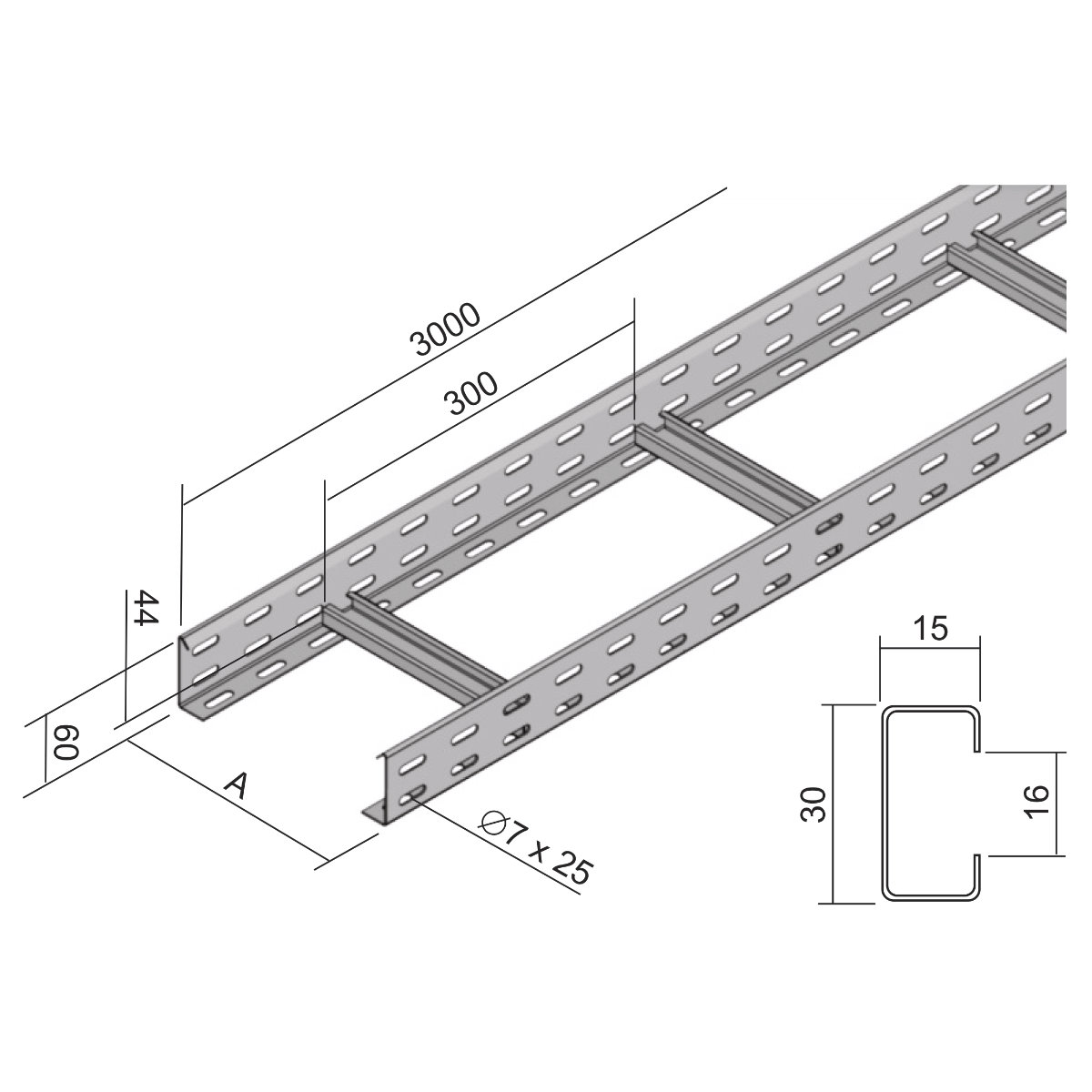

The joining of the ladders is performed by using the couplings S 60X200 and min. 4 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
Note for system with maintained functionality in fire:
For connecting the trays are designed for S 60X200 couplings and 16 pc NSM 6X10 screws.
You find more information in the catalogue Systems with maintained functionality in fire.
