KSK125_2PO6_EN
| Cod Ean | 8595568924315 |
| Cod vamal | 85381000 |
| Greutate | 0,4365 kg/pcs |
| Lătime | 126 mm |
| Înăltime | 126 mm |
| Adâncime | 77 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Note for system with maintained functionality in fire:

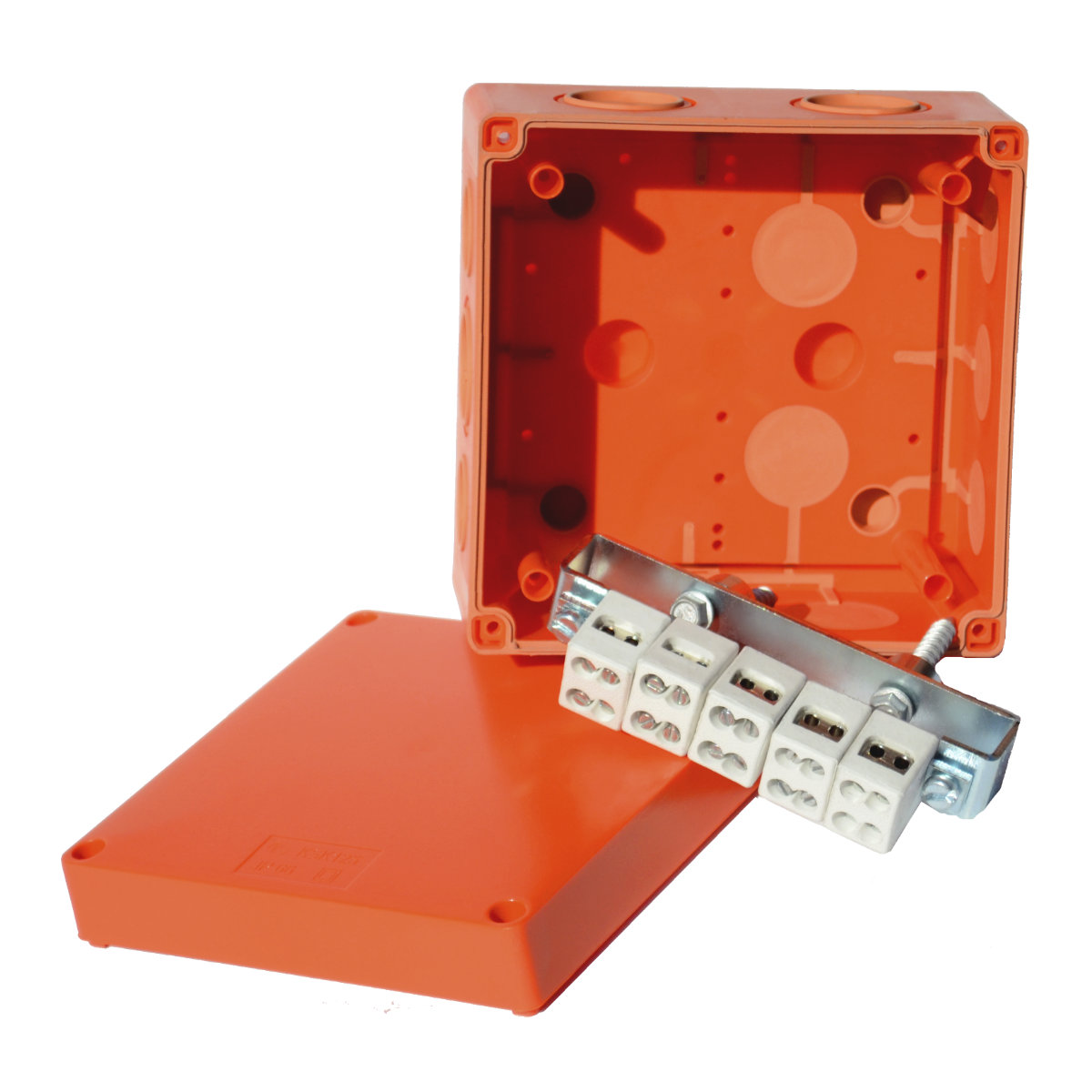

Boxes are fitted with 5 ceramic terminal blocks for installing up to 4 cable wires onto a one potential. It is fastened using anchors for use in concrete (supplied). The boxes are designed for use only for power cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
