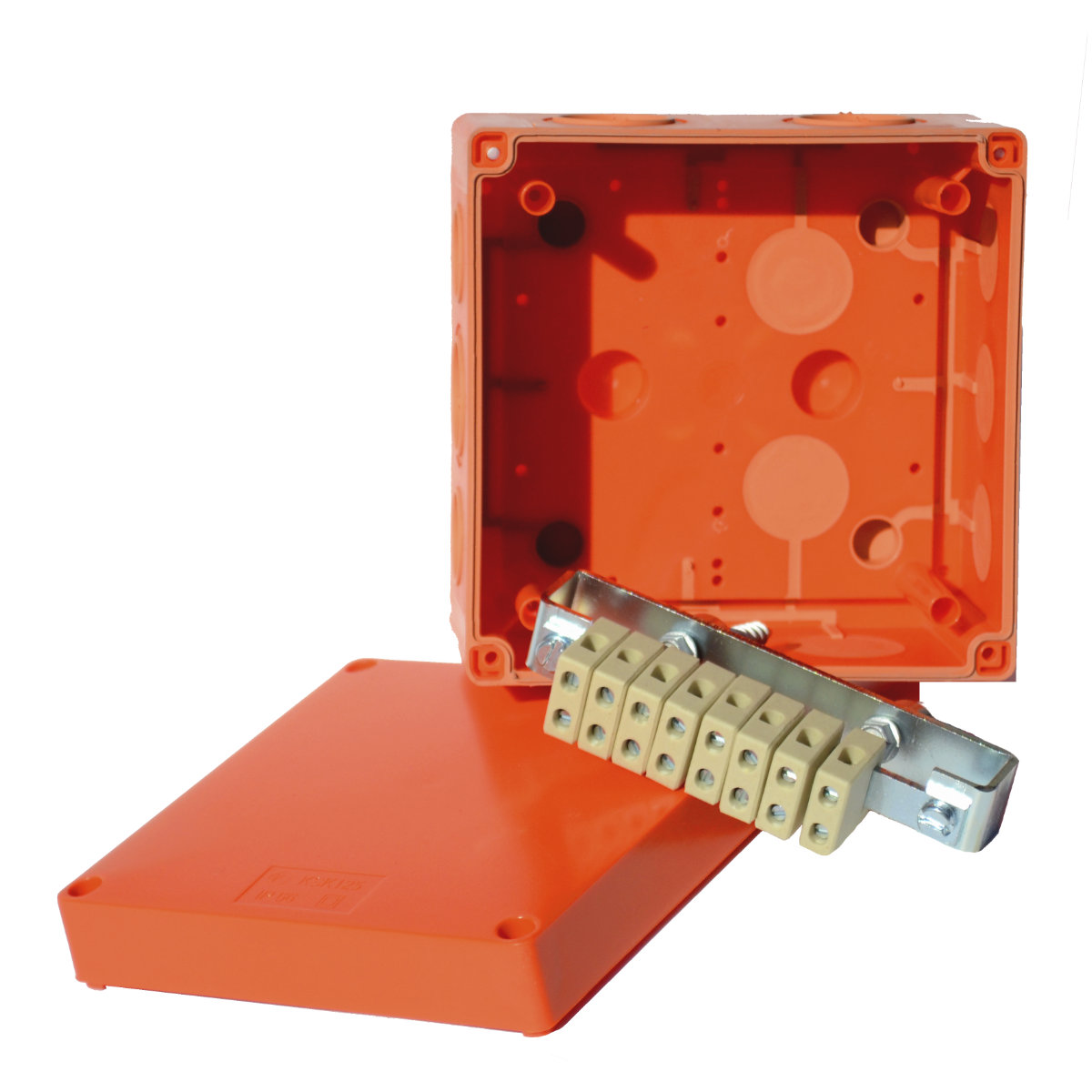

Imagine ilustrativă
KSK 125_DPO
To download 3D models, please login or create an account and request access.
Cod Ean8595568924308
Cod vamal85381000
Greutate0,4195 kg/pcs
Lătime126 mm
Înăltime126 mm
Adâncime77 mm
Funcționalitate în focP90-R, E90, PS90
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205

Note for system with maintained functionality in fire:
The box is equipped with a ceramic terminal block maintaining operability in fire. They are fixed using the attached bolts for concrete (included in the package). The boxes are designed for use only for communication cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
