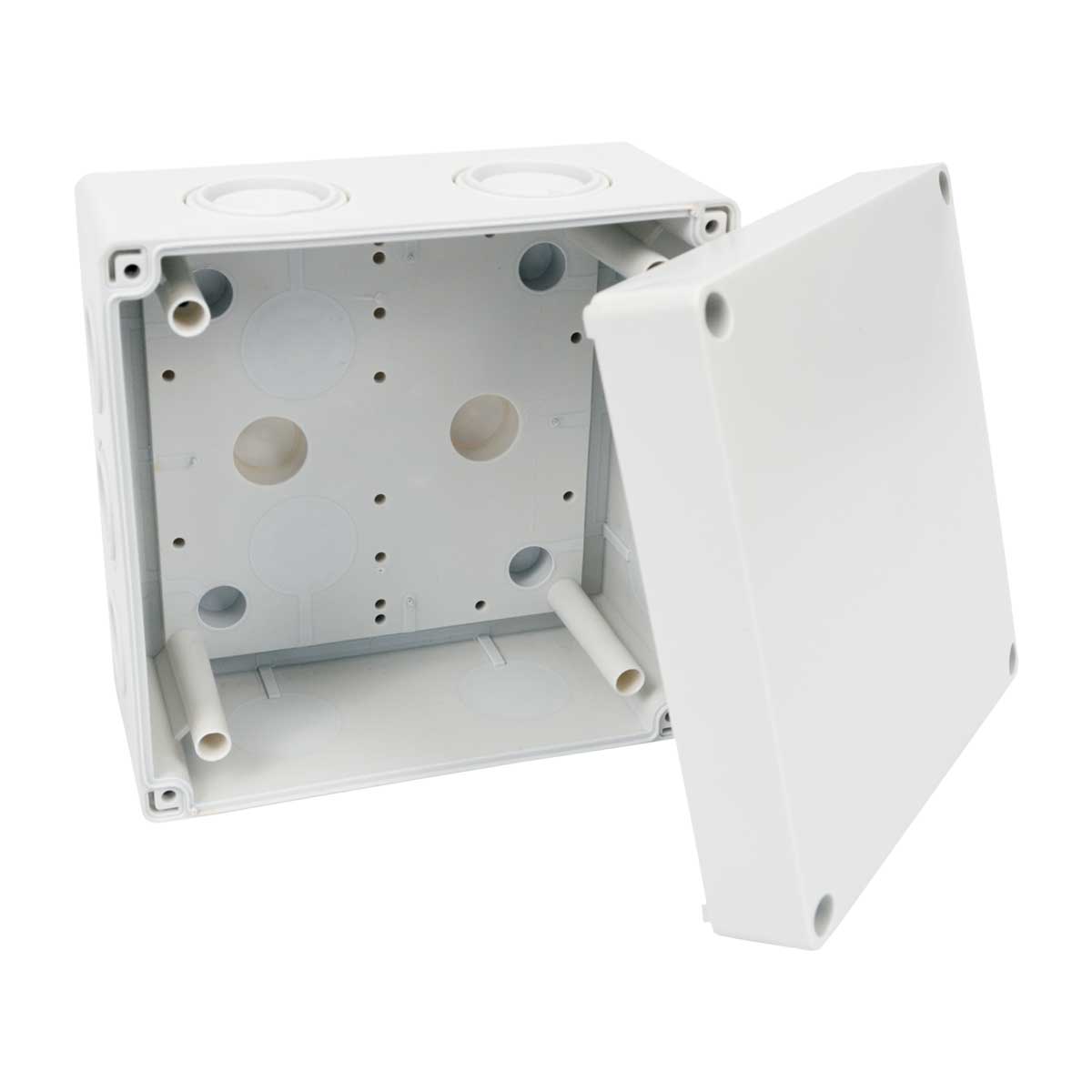

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KSK125_EN
| Cod Ean | 8595568919670 |
| Cod vamal | 39259080 |
| Greutate | 0,2720 kg/pcs |
| Culoare | light grey RAL 7035 |
| Material | PP, lid - PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Stabil la UV/Material stabil la UV | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 1000 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| Lătime | 126 mm |
| Înăltime | 126 mm |
| Adâncime | 76 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 66 |
| Descriere impachetare the plug and lid screws inserted in the box, each box packed in shrink foil and labeled | |
Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 2). Integrated O-ring to install cable glands. 7x membrane inputs with ∅20 mm, 6x ∅25 mm and 5x break-out inputs with ∅32 mm. Protected by Utility model trademark.
Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire.
