PP80_EN
| Cod Ean | 8595057690790 |
| Cod vamal | 39259080 |
| Greutate | 0,0550 kg/pcs |
| Culoare | dark grey |
| Material | PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Rezistența la temperatură | -5 - 105 °C |
| Testat cu buclă incinsă | 850 °C |
| Lătime | 250 mm |
| Înăltime | 81 mm |
| Descriere impachetare washer for mounting up to 3 pieces of classical instruments | |

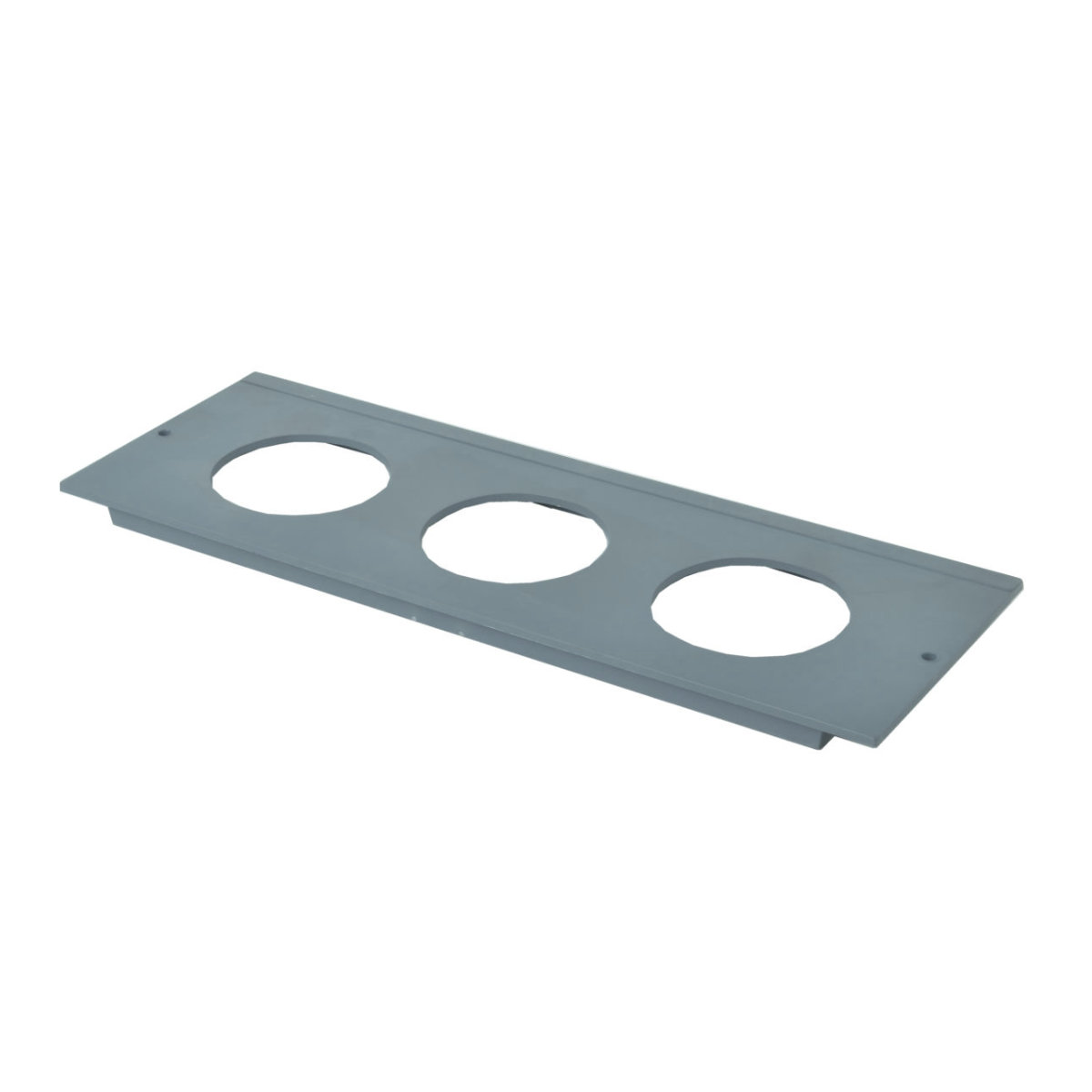

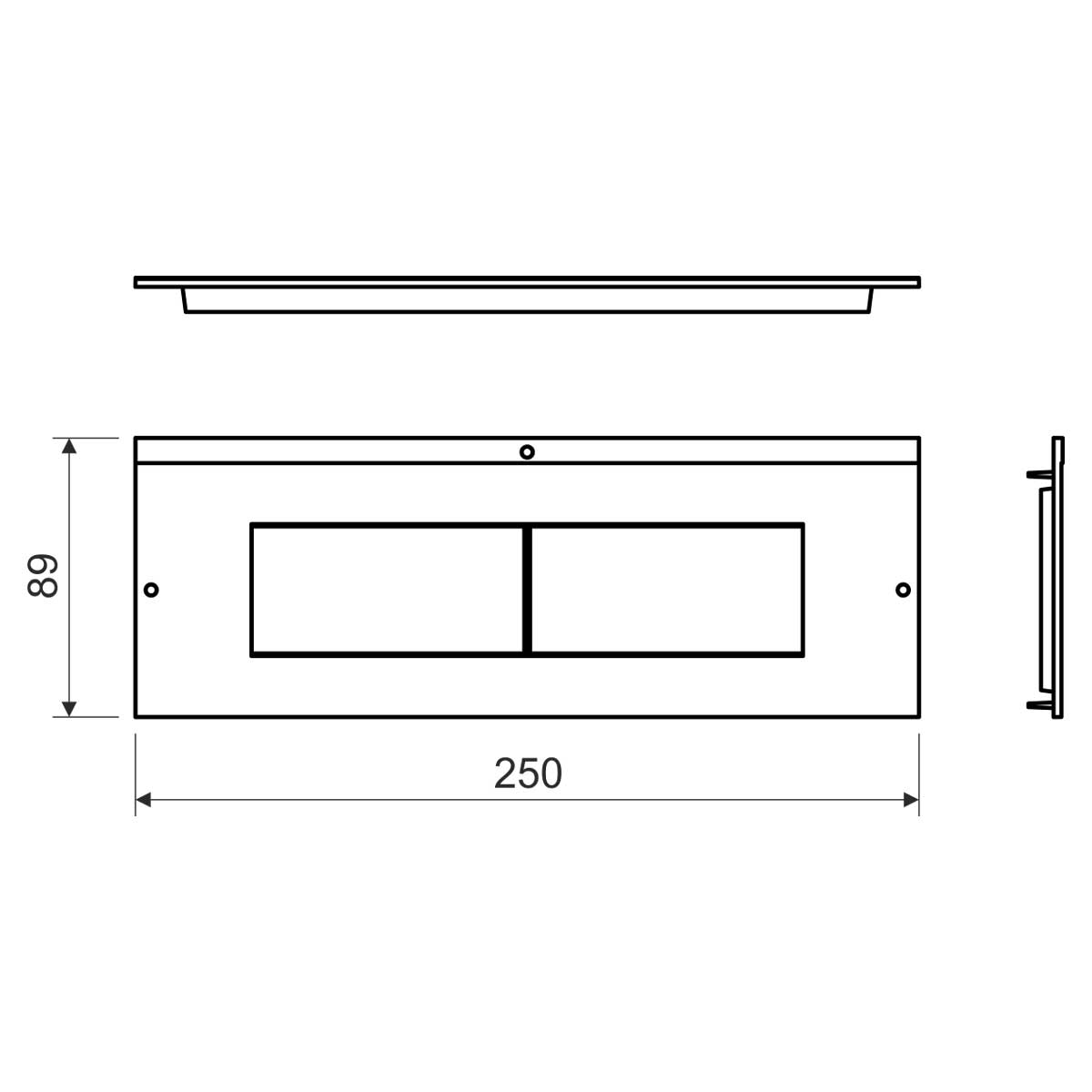

Device plate is installed into the floor box KOPOBOX 80 frame. Installation is recommended together with the device box KPP 80. When installing multiple modular devices, it is appropriate to remove the inner partition. External dimensions of other device pads are identical with the drawing.
