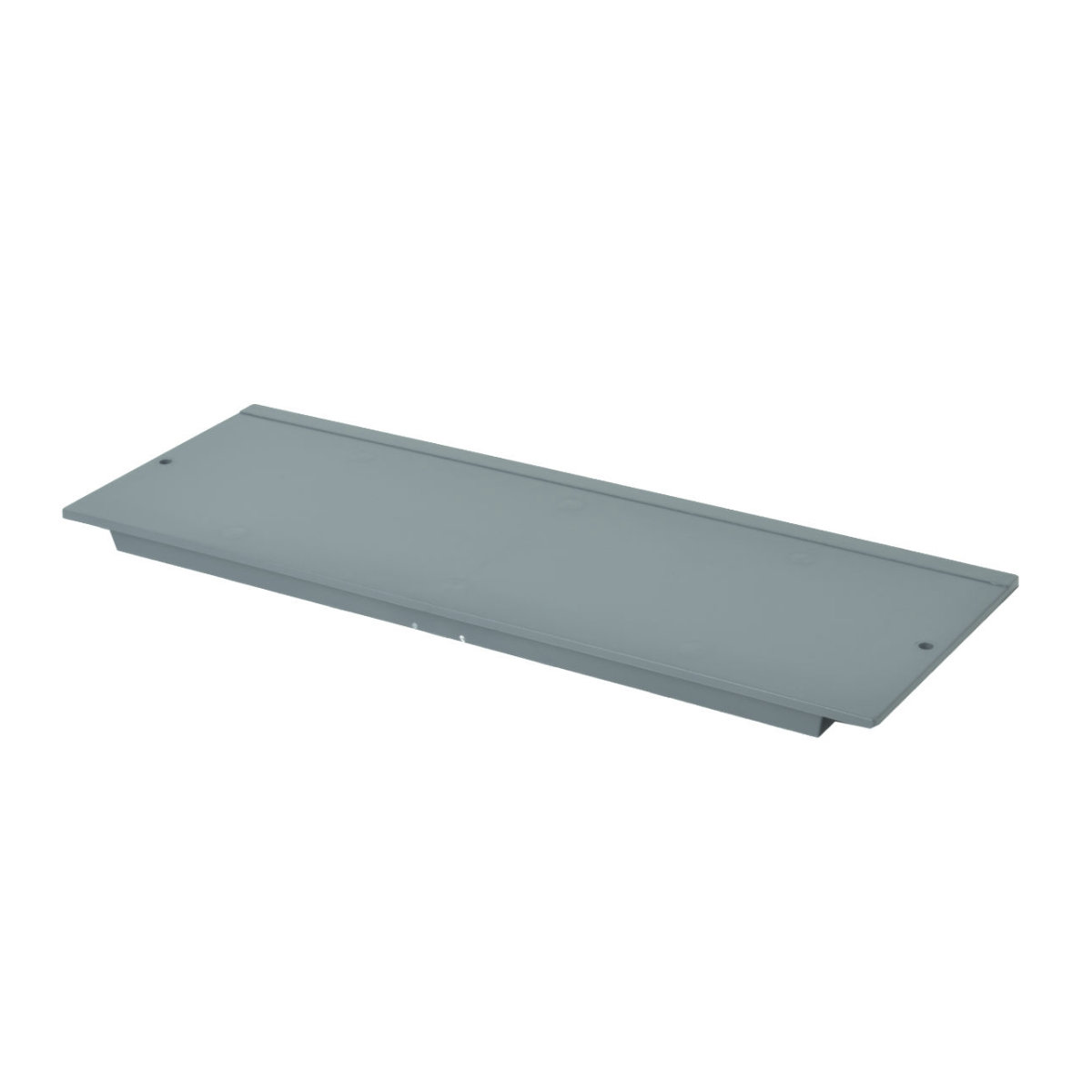

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
PP80_EN
| Cod Ean | 8595057690783 |
| Cod vamal | 39259080 |
| Greutate | 0,0755 kg/pcs |
| Culoare | dark grey |
| Material | PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Rezistența la temperatură | -5 - 105 °C |
| Testat cu buclă incinsă | 850 °C |
| Lătime | 250 mm |
| Înăltime | 89 mm |
| Descriere impachetare full washer for covering the unassembled part of the KOPOBOX | |
Device plate is installed into the floor box KOPOBOX 80 frame. Installation is recommended together with the device box KPP 80. When installing multiple modular devices, it is appropriate to remove the inner partition. External dimensions of other device pads are identical with the drawing.
