PP80_45_6_EN
| Cod Ean | 8595568930781 |
| Cod vamal | 39259080 |
| Greutate | 0,0960 kg/pcs |
| Culoare | dark grey RAL 7012 |
| Material | PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Rezistența la temperatură | -5 - 105 °C |
| Testat cu buclă incinsă | 850 °C |

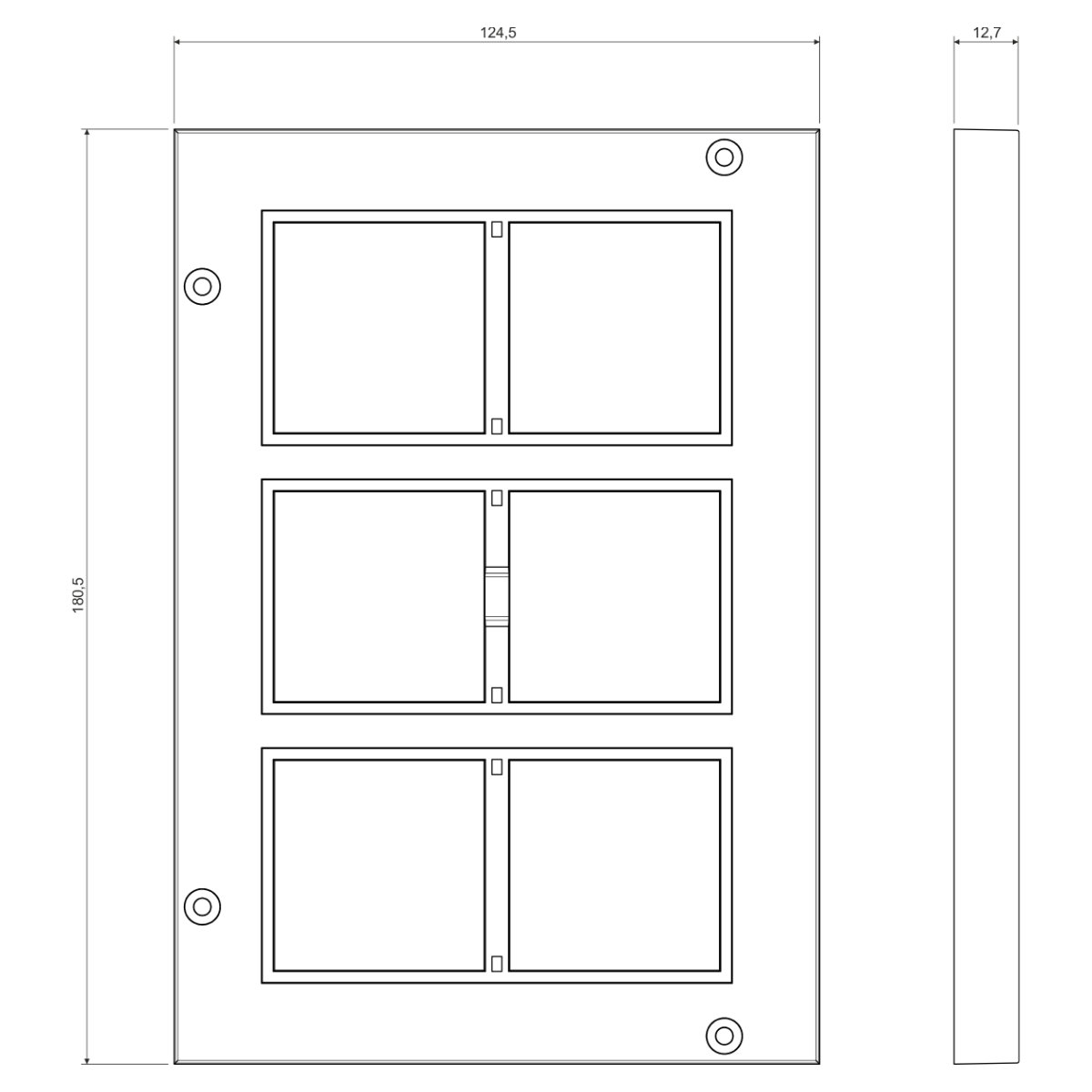

| Lătime | 125 mm |
| Înăltime | 180 mm |
| Grosime | 13 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |

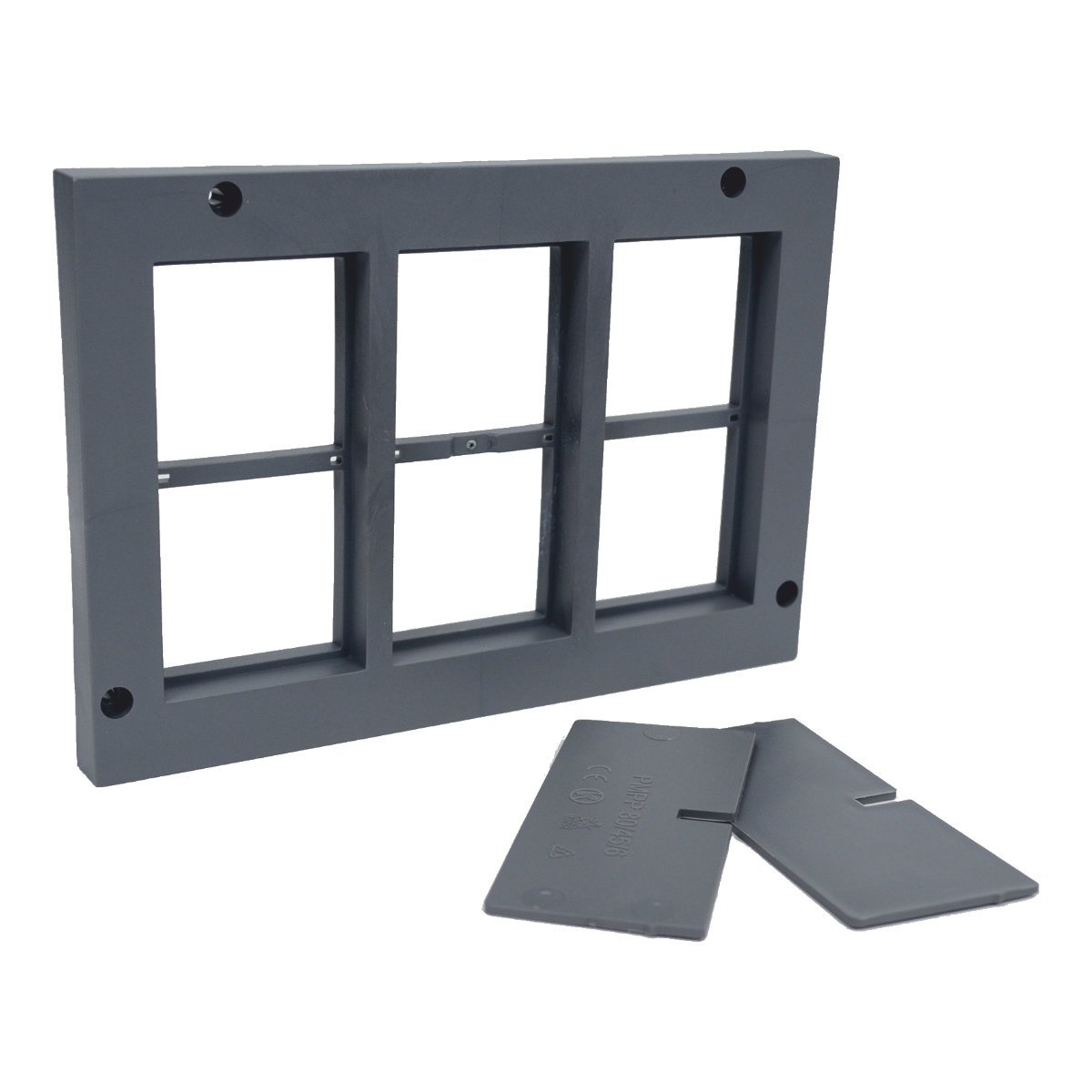

The PP 80/45/6 instrument washer is installed in the frame of the KOPOBOX 80 floor box (max. 2 pieces). When installing double modular devices, it is advisable to remove the inner partition. The pack includes 1 PP 80/45/6 instrument pad, 2 separating partitions and 4 mounting screws. The washer is designed for the installation of 6 modular QUADRO devices (pg. 2-49), or devices of the same design, eg ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric.
