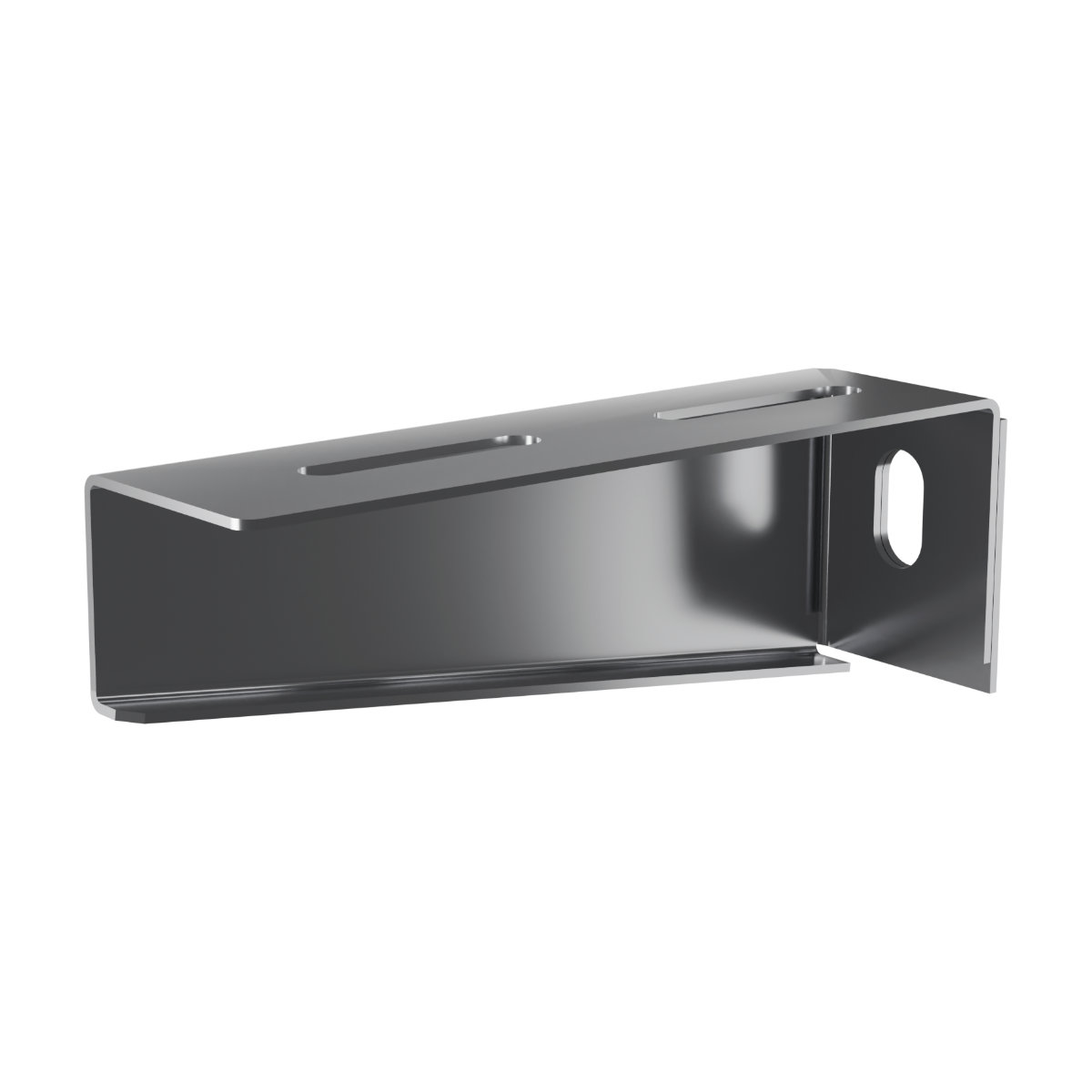

Imagine ilustrativă
DS_ZM_EN
| Cod Ean | 8595568940629 |
| Cod vamal | 83024190 |
| Greutate | 0,1452 kg/pcs |
| Acoperire de suprafată | Magnelis® |
| Încarcatura maximă | 150 kg |
| Dimensiunea A | 145 mm |
| Dimensiunea B | 49 mm |
| Pentru lățimea jgheabului de cabluri | 125 mm |
| Pentru inălțimea jgheabului de cabluri | 35 - 110 mm |
The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
