Cod Ean | 8595568940674 |
Cod vamal | 83024190 |
Greutate | 0,5698 kg/pcs |
Acoperire de suprafată | Magnelis® |
Încarcatura maximă | 130 kg |
Dimensiunea A | 420 mm |
Dimensiunea B | 84 mm |
Pentru lățimea jgheabului de cabluri | 400 mm |
Pentru inălțimea jgheabului de cabluri | 35 - 110 mm |

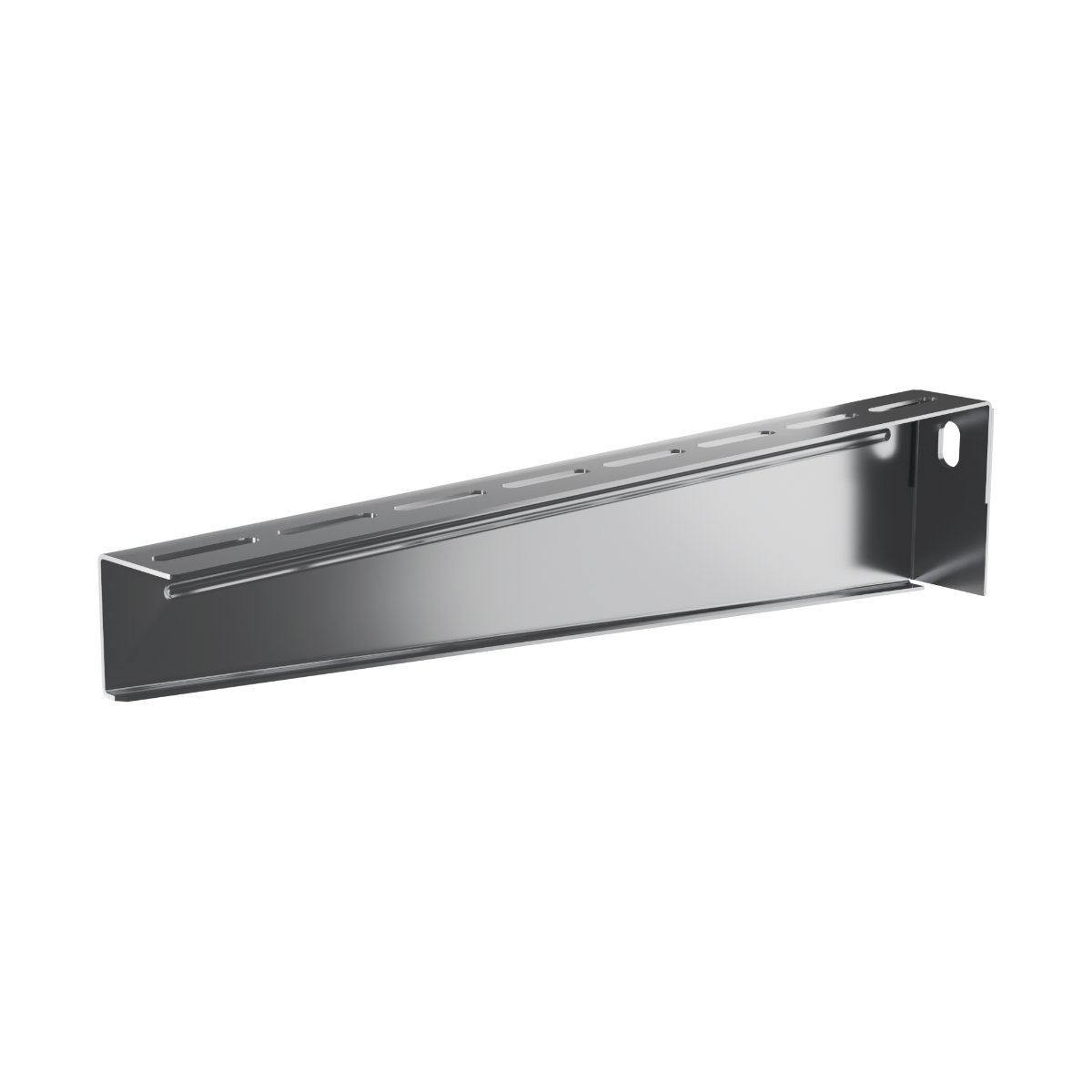

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
