DS_EN
| Cod Ean | 8595057632585 |
| Cod vamal | 83024190 |
| Greutate | 0,3975 kg/pcs |
| Acoperire de suprafată | Pre-Galvanized |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Încarcatura maximă | 150 kg |

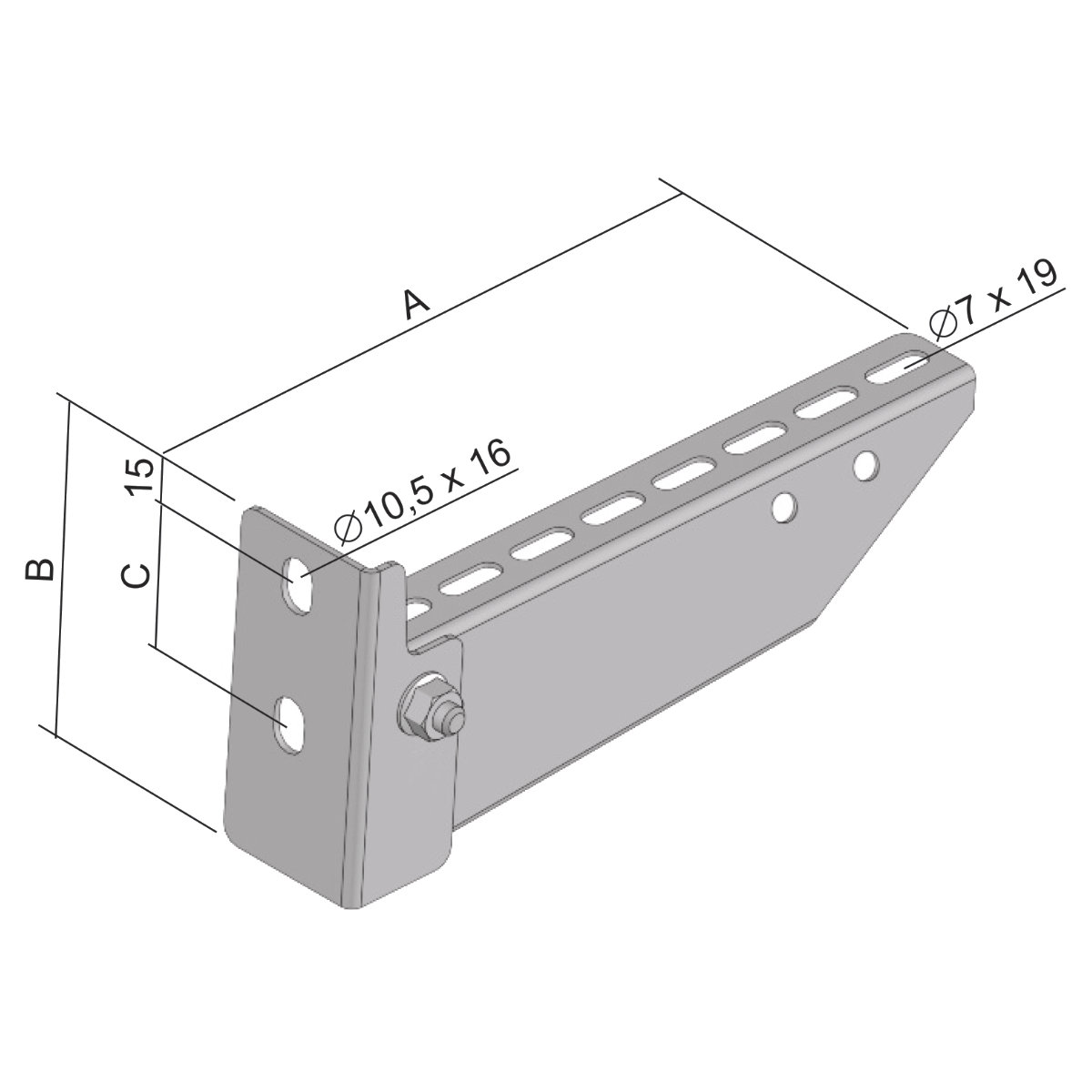

| Dimensiunea A | 218 mm |
| Dimensiunea B | 104 mm |
| Dimensiunea C | 60 mm |
| Pentru lățimea jgheabului de cabluri | 200 mm |
| Pentru inălțimea jgheabului de cabluri | 35 - 110 mm |

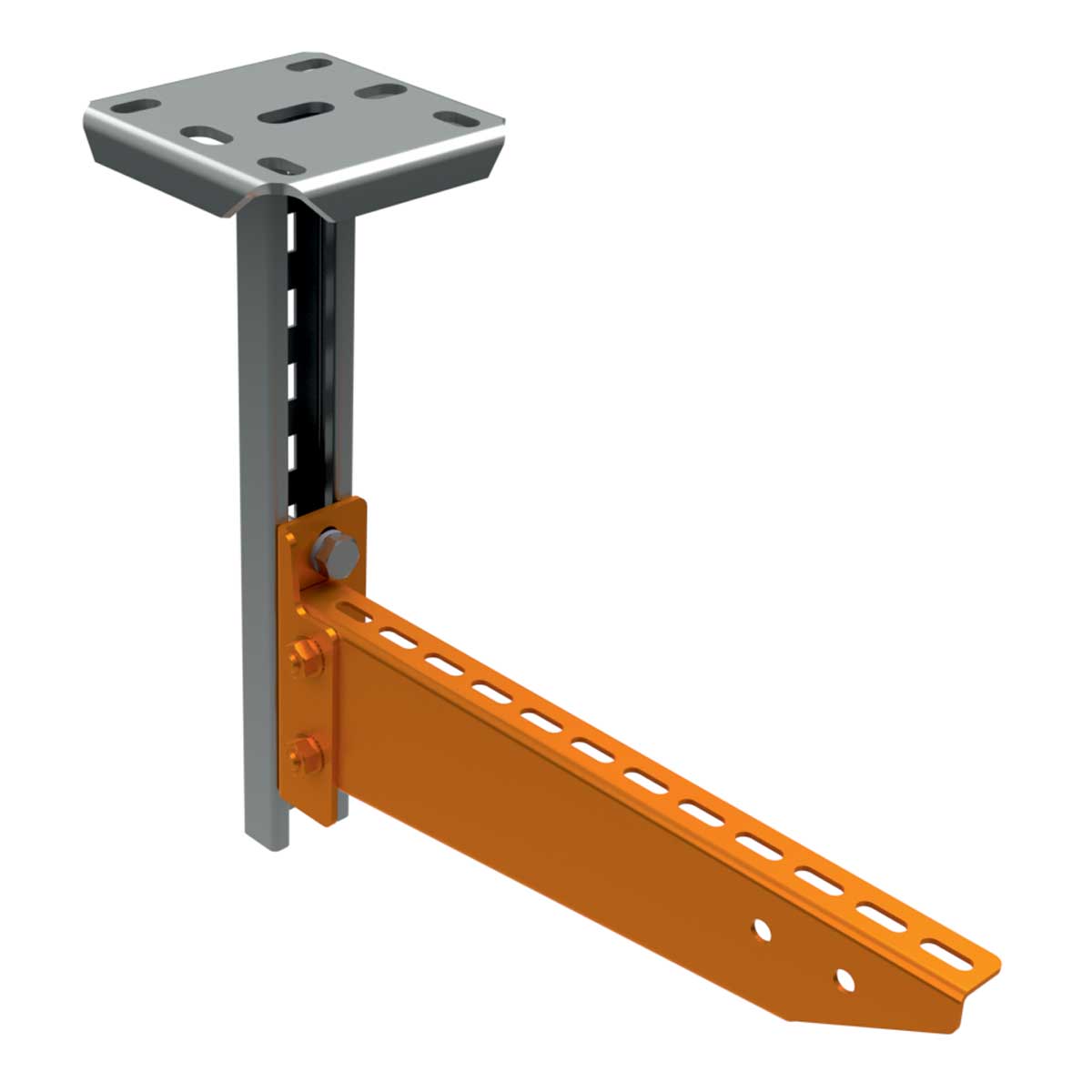

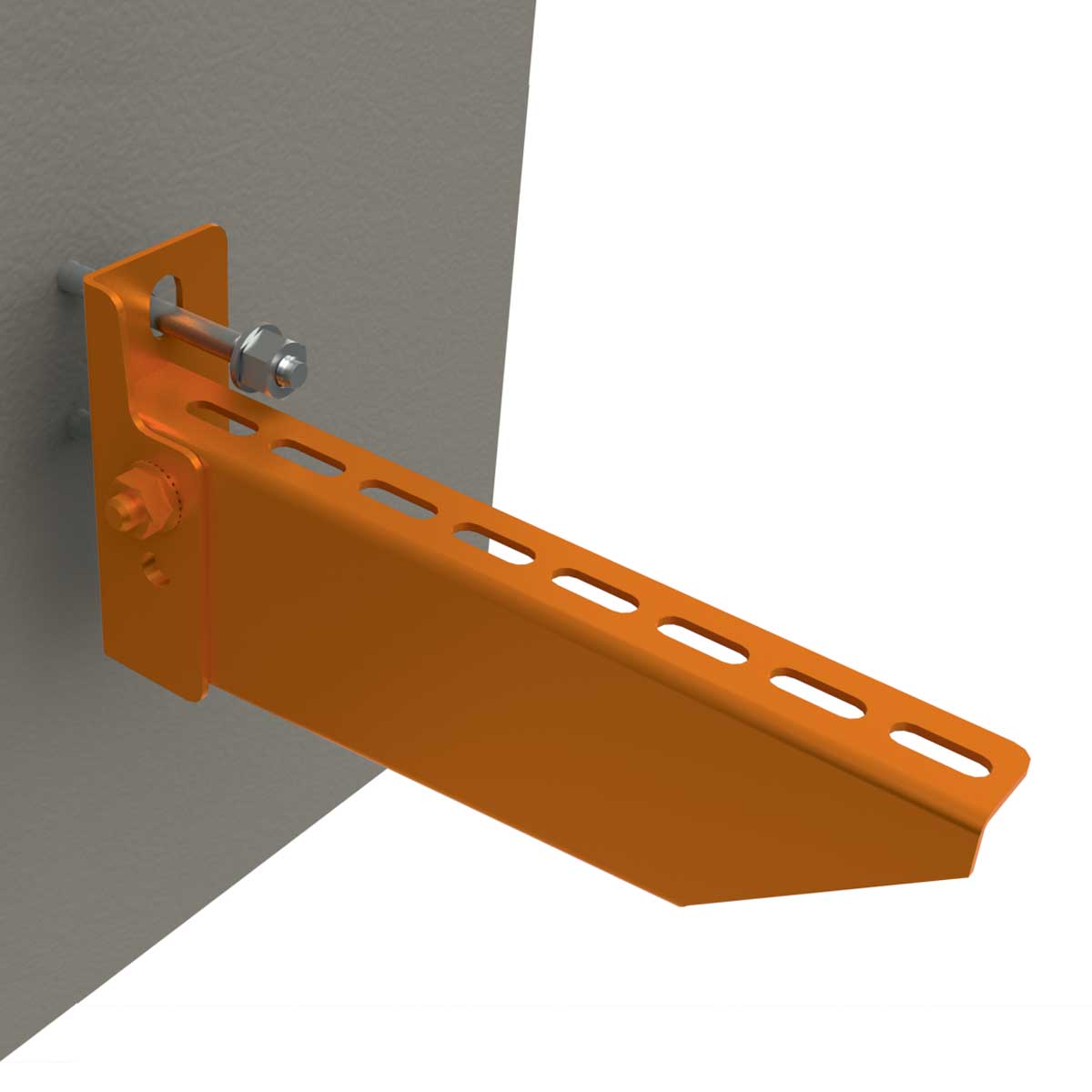

The holder is designed to be mounted on a wall or a ceiling profile. Fix to the wall using 2 Ø 8 mm anchors. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DS is carried out by bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
