Cod Ean8595057616486
Cod vamal39259080
Greutate0,0310 kg/pcs
Culoarewhite
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

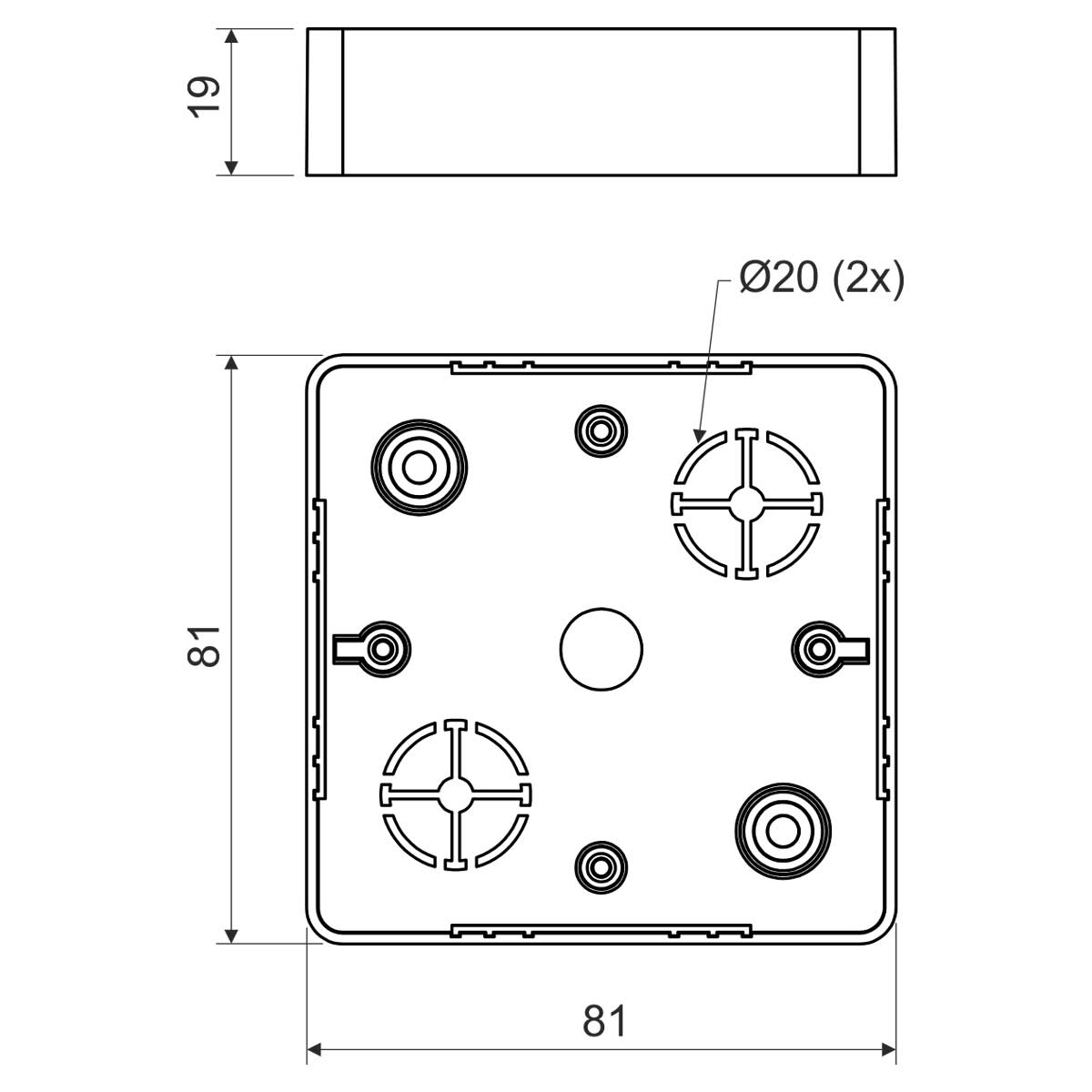

Lătime81 mm
Înăltime81 mm
Adâncime19 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F
StandardeČSN EN 60 670-1
Descriere impachetare
the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed

Intended for devices of Classic and Swing - ABB series with greater mounting depth. To install on materials with fire classes E or F, use insulating pad.
