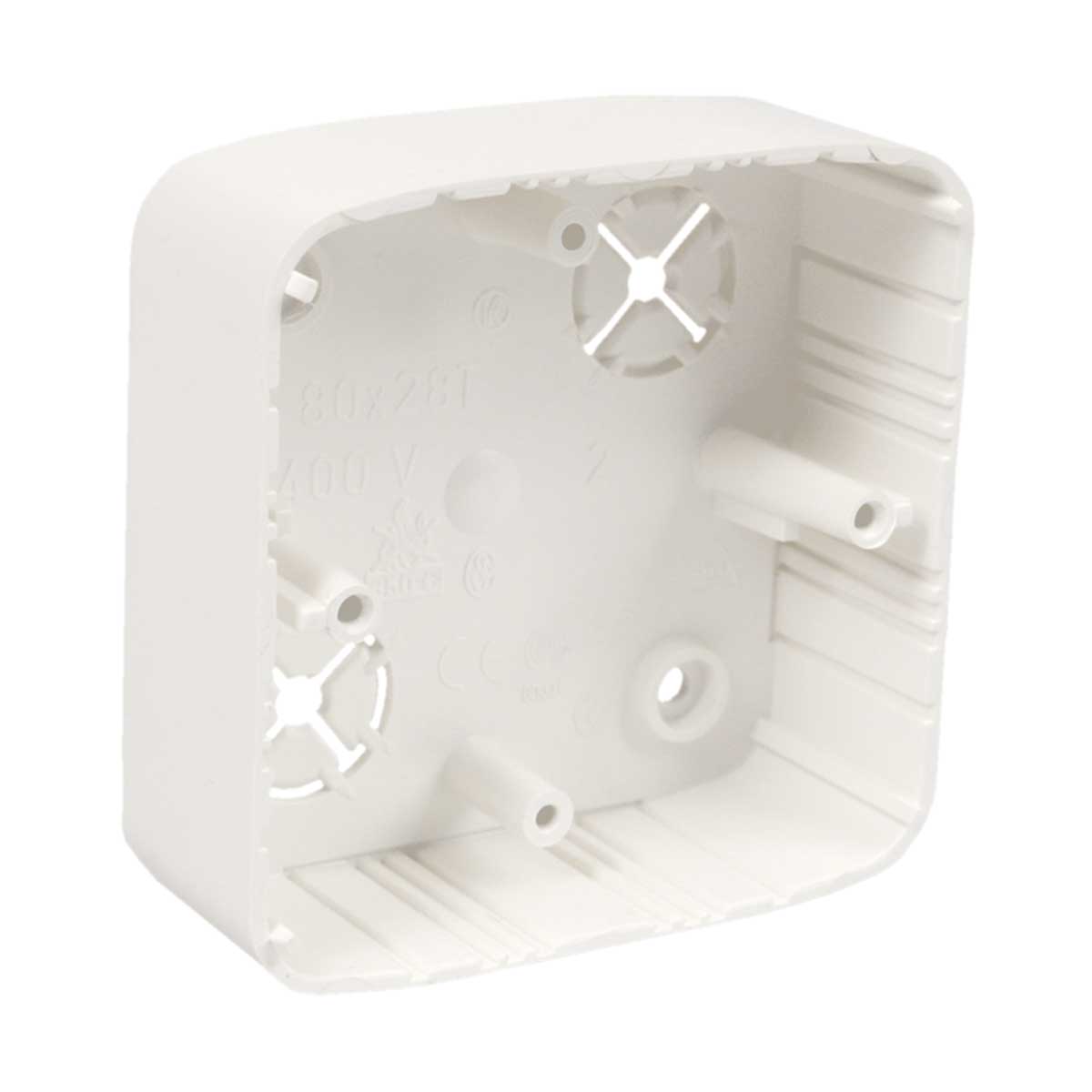

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
LK80X28THF_EN
| Cod Ean | 8595057633995 |
| Cod vamal | 39259080 |
| Greutate | 0,0363 kg/pcs |
| Culoare | white |
| Material | PC-ABS |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -20 - 80 °C |
| Testat cu buclă incinsă | 850 °C |

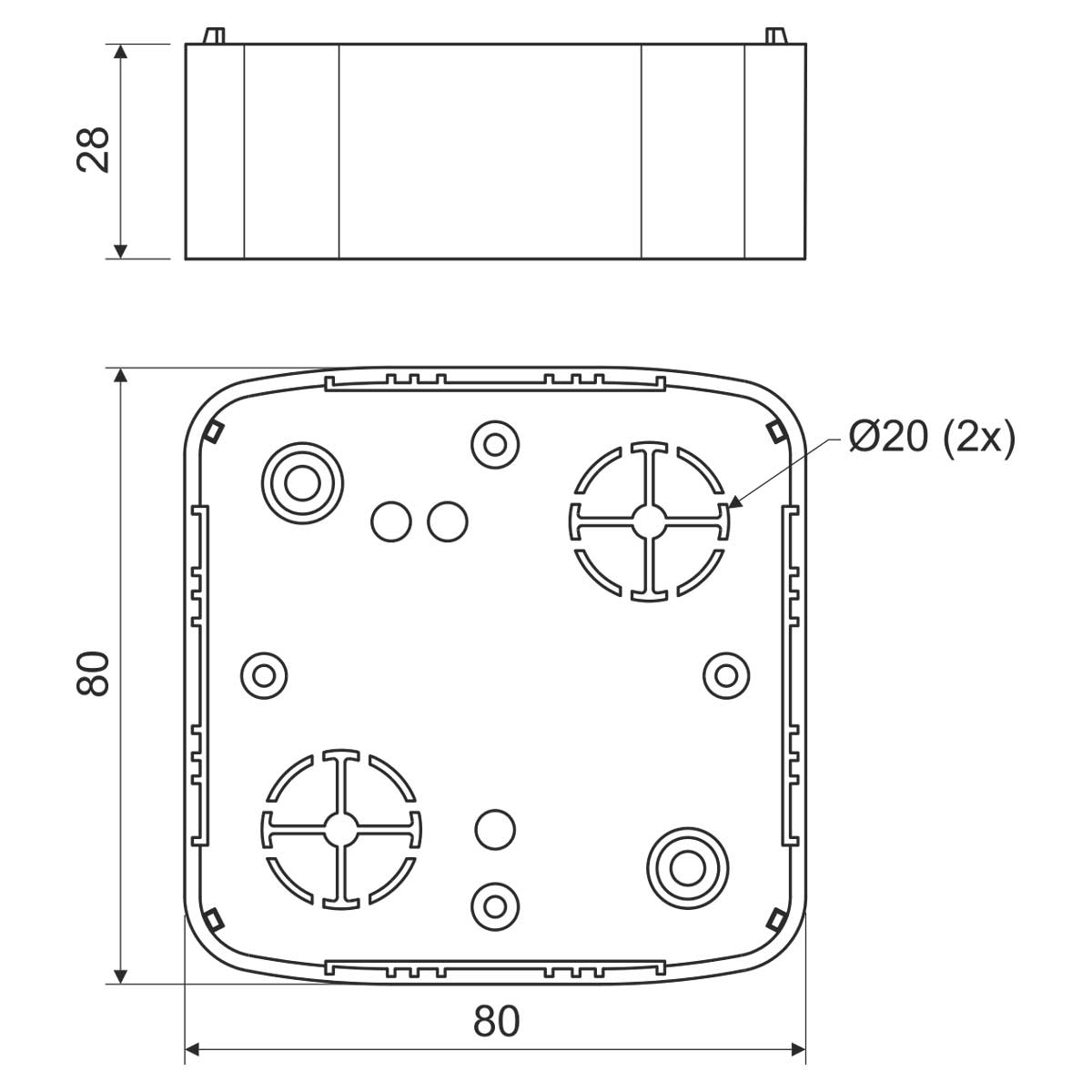

| Lătime | 80 mm |
| Înăltime | 80 mm |
| Adâncime | 28 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
For premises with increased need for protection of persons and property. Intended for devices of Tango series. To install on materials with fire classes E or F, use insulating pad.
