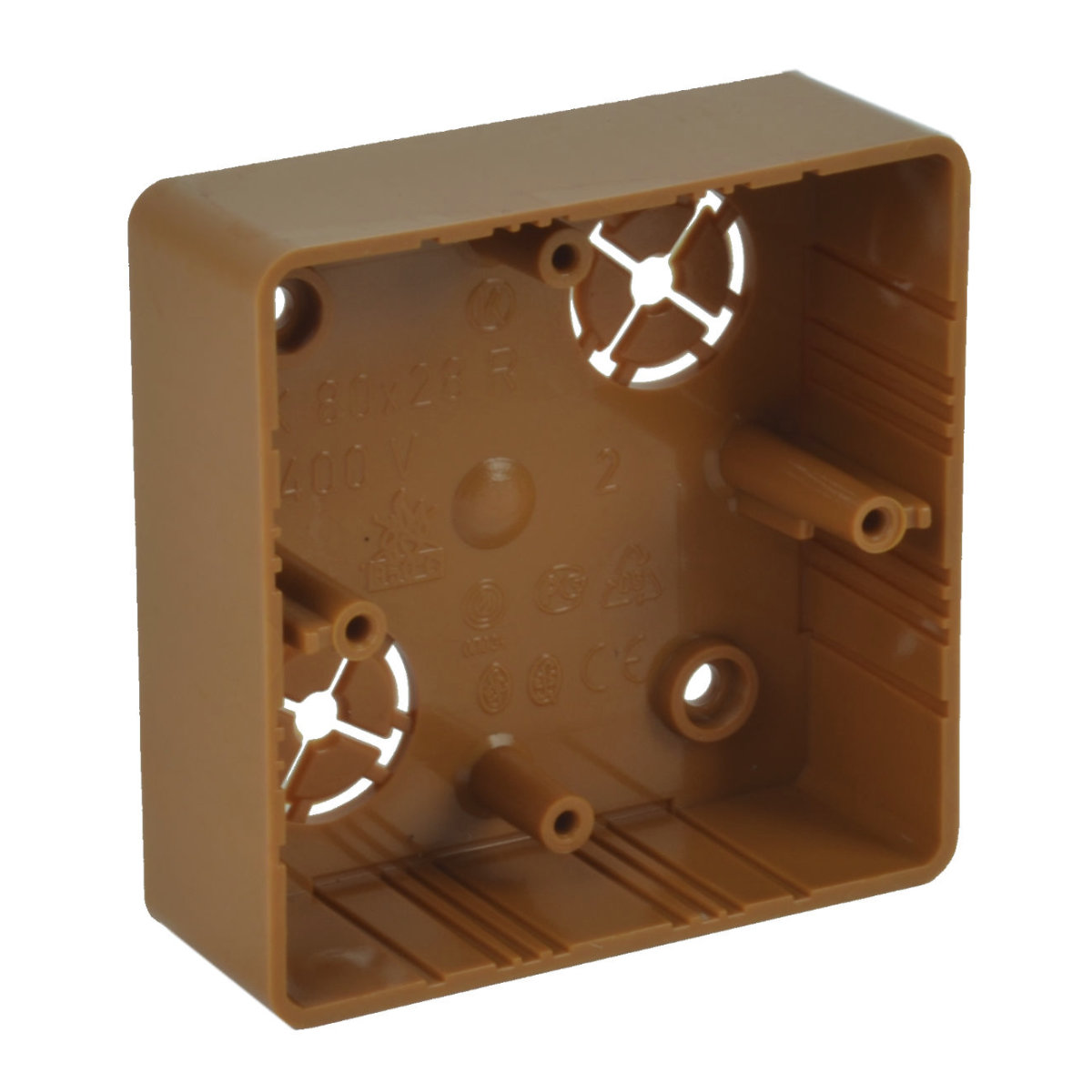

LK80X28R1_EN
| Cod Ean | 8595568909022 |
| Cod vamal | 39259080 |
| Greutate | 0,0460 kg/pcs |
| Culoare | light wood - light brown |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

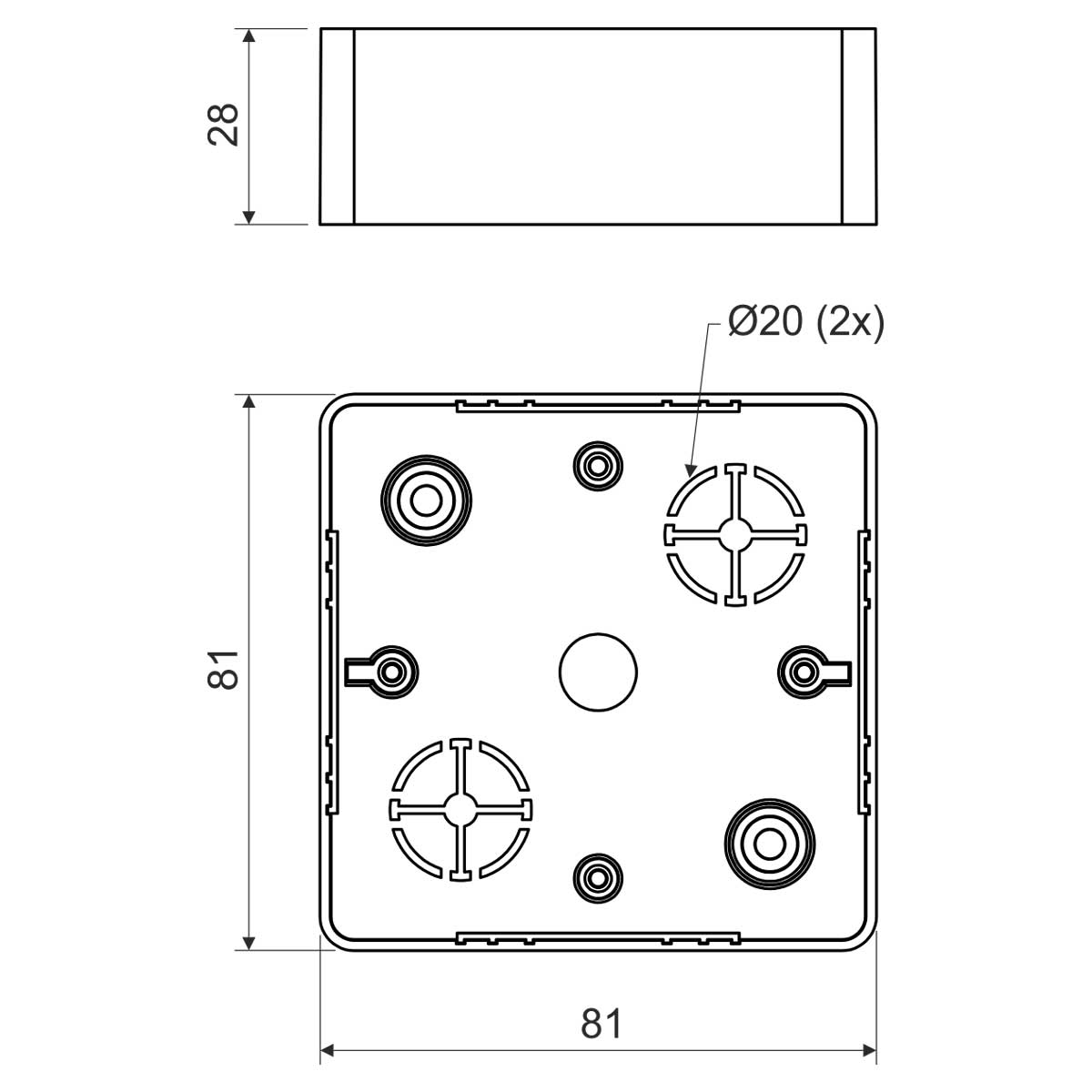

| Lătime | 81 mm |
| Înăltime | 81 mm |
| Adâncime | 28 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Intended for double-sockets of Tango series - ABB with high assembling depth. To install on materials with fire classes E or F, use insulating pad.
