Cod Ean8595057634121
Cod vamal39259080
Greutate0,0403 kg/pcs
Culoarewhite
MaterialPC-ABS
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-20 - 80 °C
Testat cu buclă incinsă850 °C

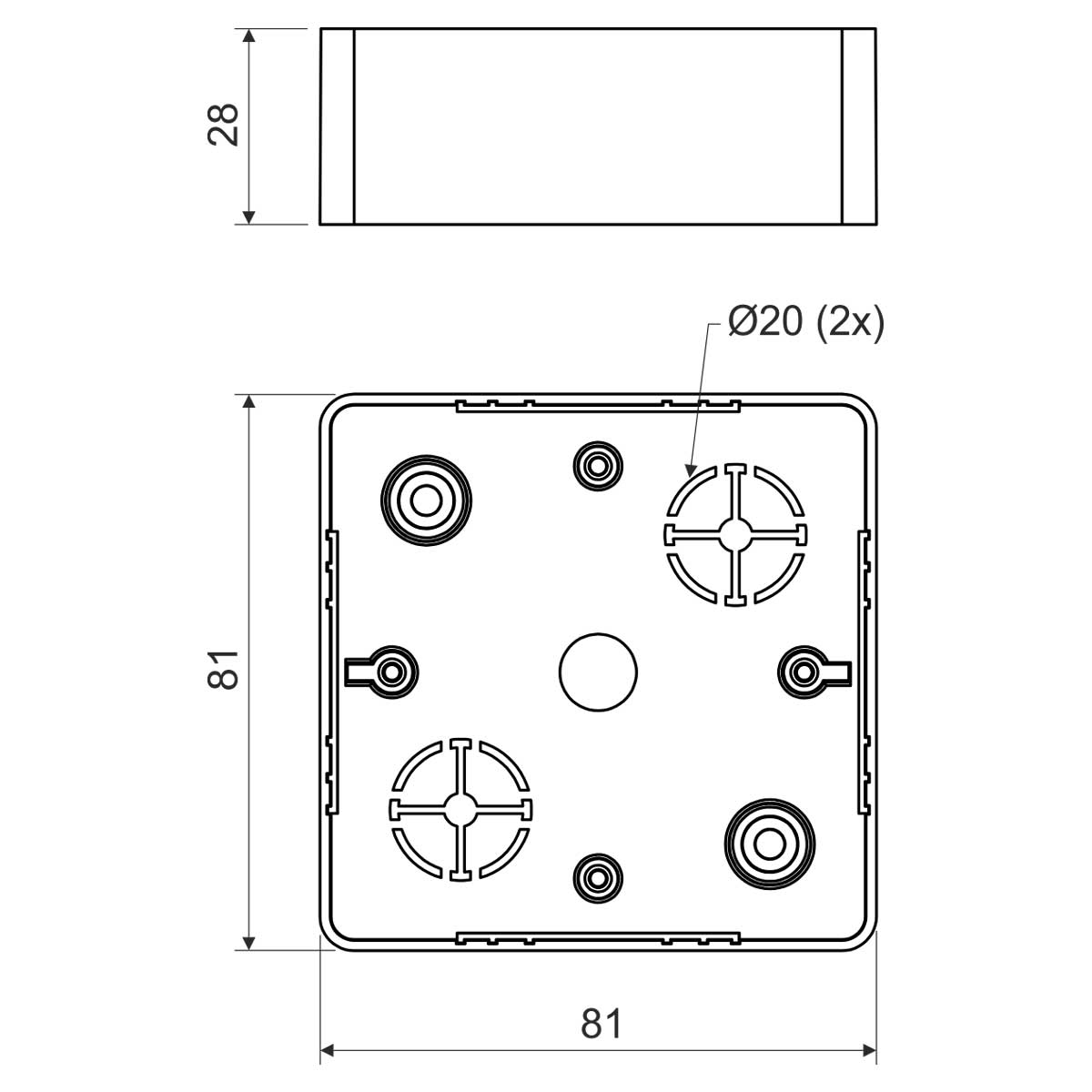

Lătime81 mm
Înăltime81 mm
Adâncime28 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F
StandardeČSN EN 60 670-1
Descriere impachetare
the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed

For premises with increased need for protection of persons and property. To be intended for equipment of model range Classic or Swing - ABB with high assembling depth – with the exception of small double socket. To install on materials with fire classes E or F, use insulating pad.
