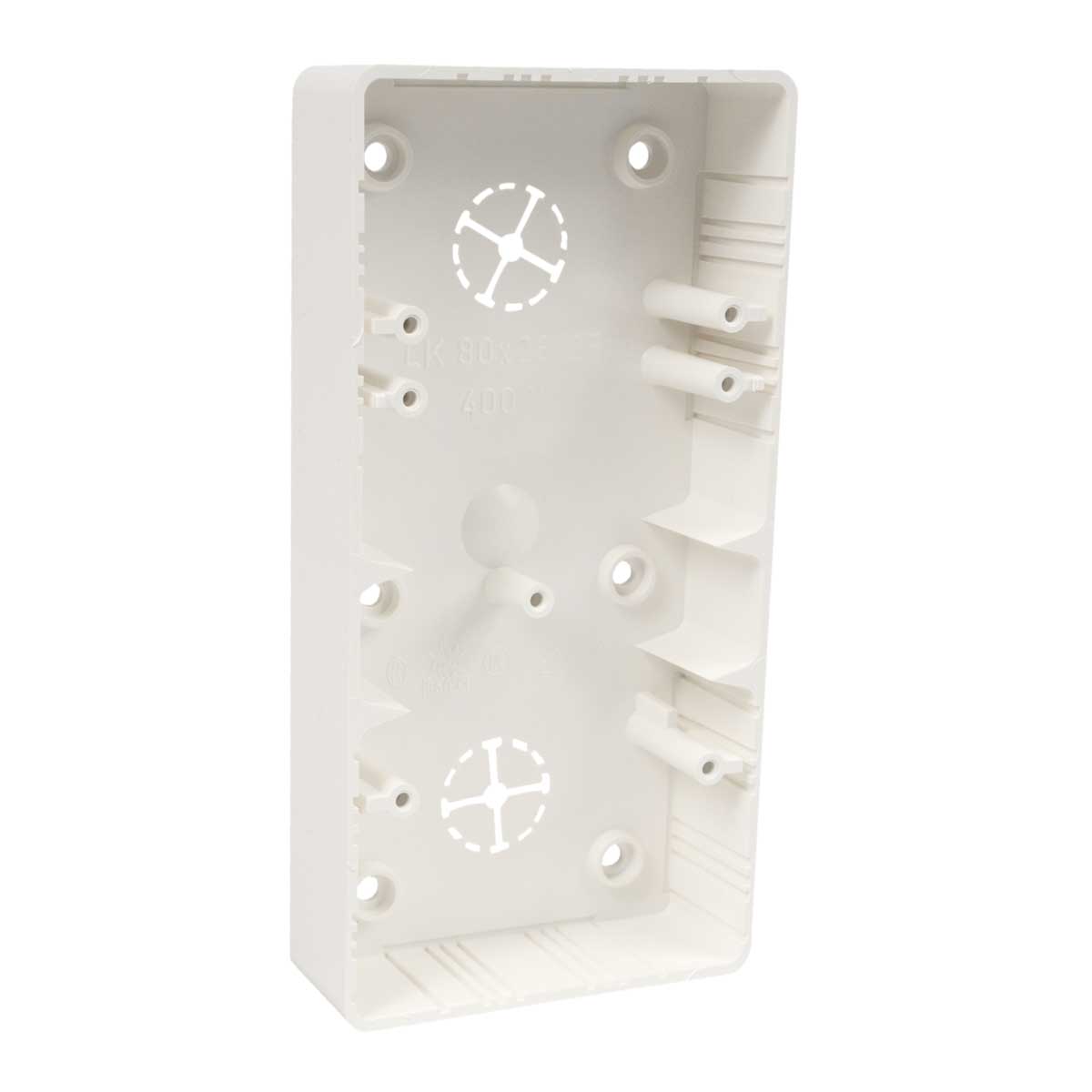

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
LK80X28_2R_EN
| Cod Ean | 8595057615519 |
| Cod vamal | 39259080 |
| Greutate | 0,0860 kg/pcs |
| Culoare | white |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

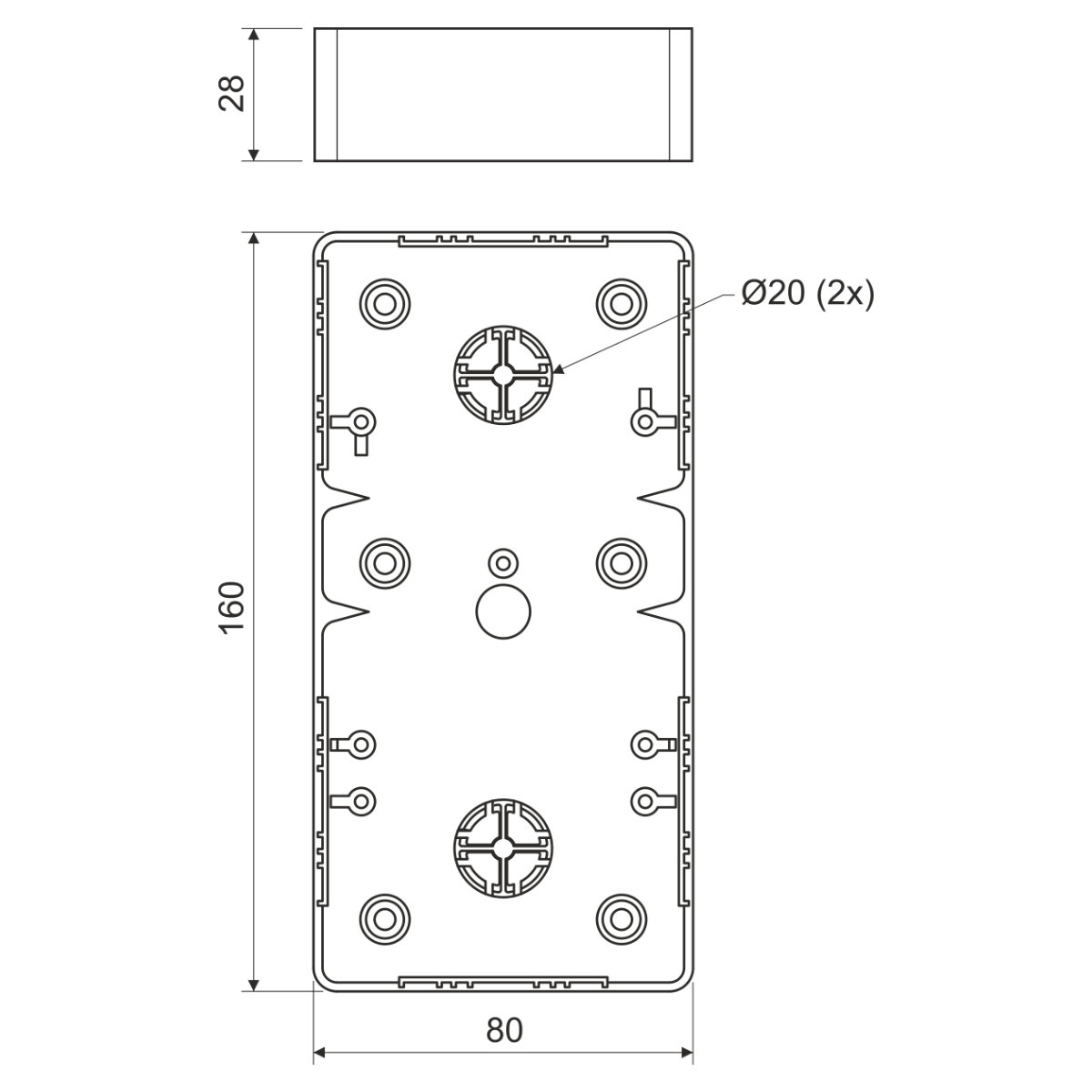

| Lătime | 80 mm |
| Înăltime | 160 mm |
| Adâncime | 28 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Permite instalarea aparatajului dublu | yes |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare boxes packed in shrink foil of 10 pieces and included instrument screws for two devices | |

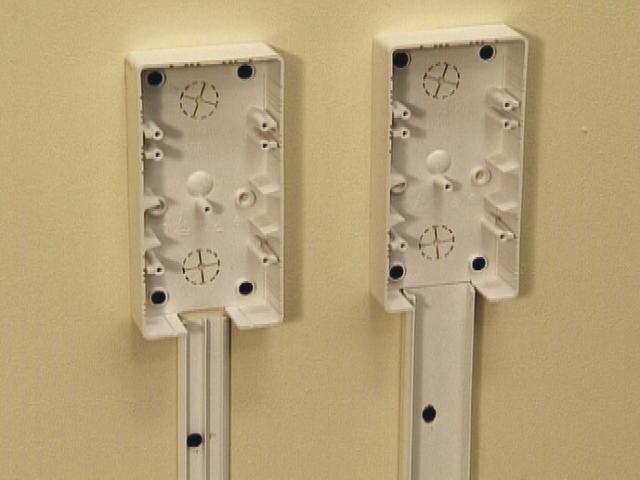

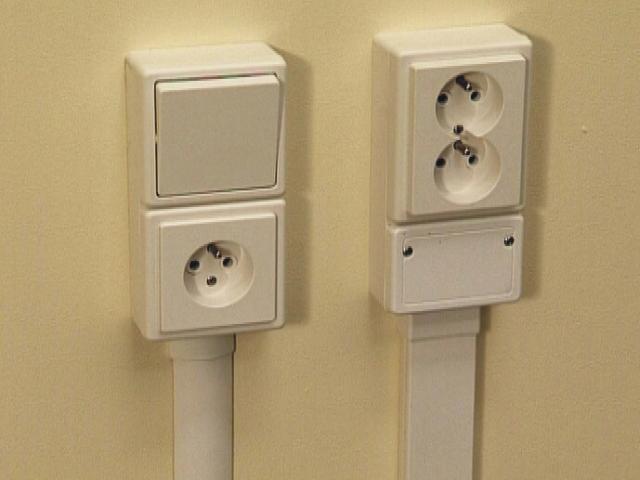

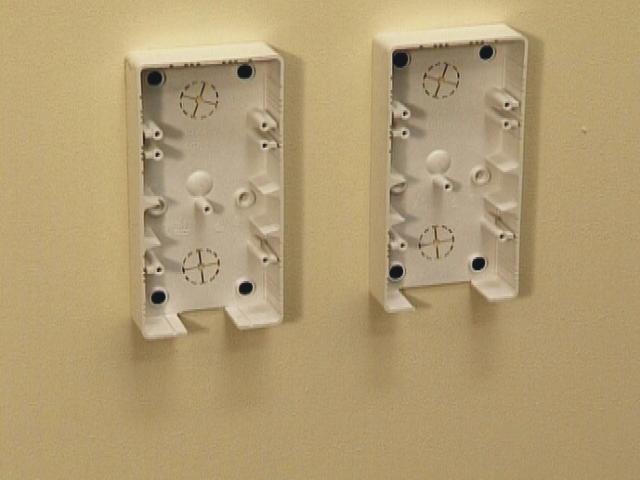

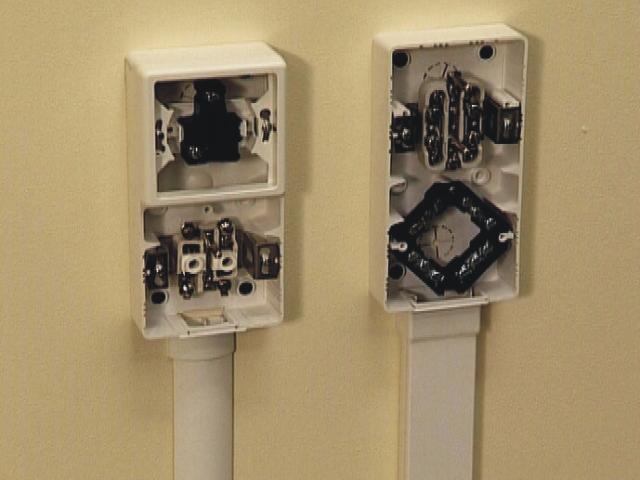

Intended for devices of Classic and Swing - ABB series with greater mounting depth. To install on materials with fire classes E or F, use insulating pad (2 pcs PI 80 2ZK). Installation of two devices or and double-socket.
